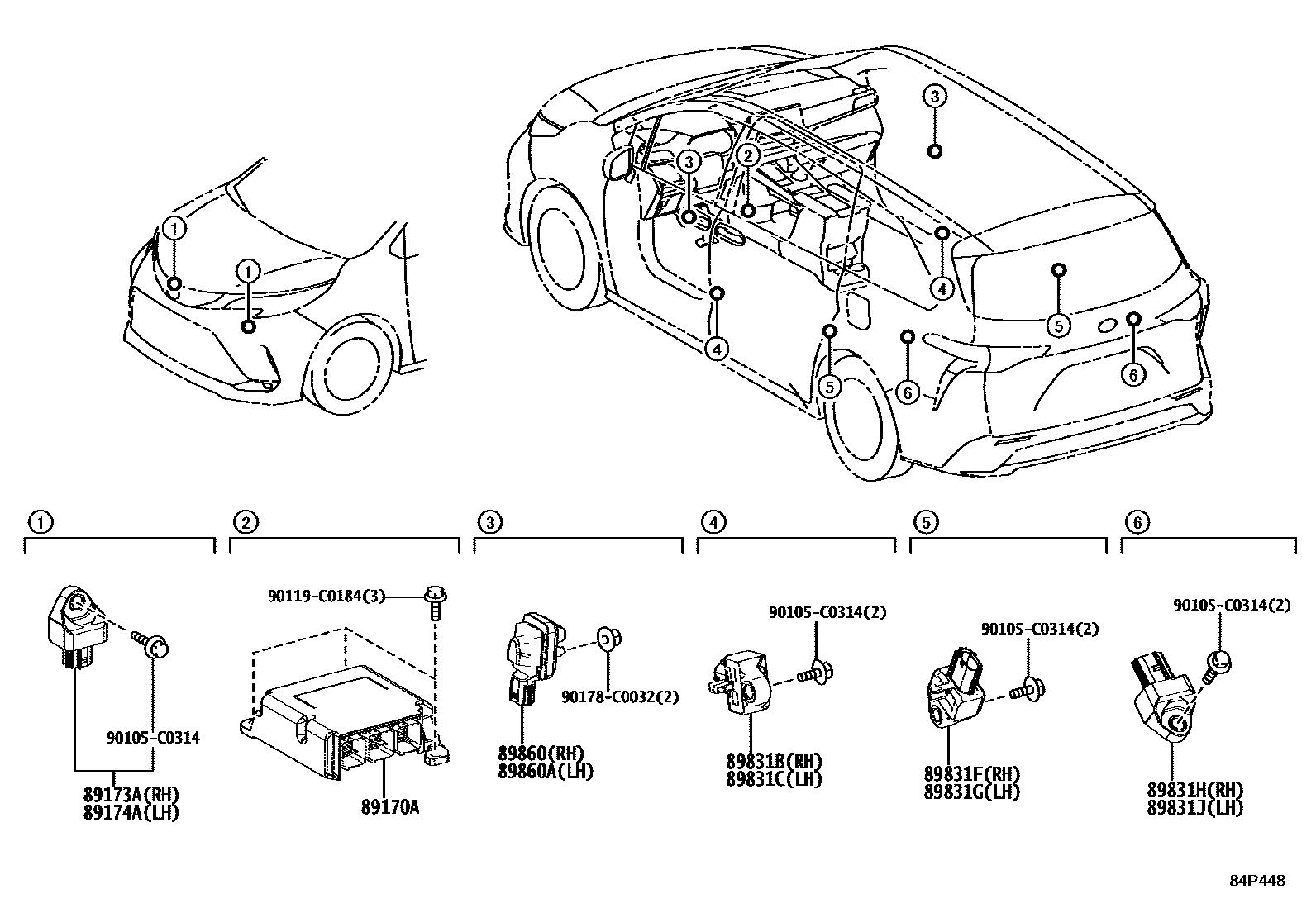

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-08110iAXLH40202211-202404

*614

main89170-08250iAXLH4#..E,L,N,V,W,X202404

*614

main89170-08260iAXLH40..L,X; AXLH40..P202404

*614; REAR NO.1 SEAT-W(RH SEAT:SIDE TABLE & USB),*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-09888iAXLH4#202211

89174ASENSOR, AIRBAG, FRONT LH

main89173-09888iAXLH4#202211

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-0R170iAXLH4#202211

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-0R170iAXLH4#202211

89831FSENSOR, SIDE AIRBAG, RH, NO.3

main89831-0R160iAXLH4#202211

89831GSENSOR, SIDE AIRBAG, LH, NO.3

main89831-0R160iAXLH4#202211

89831HSENSOR, SIDE AIRBAG, RH, NO.4

main89831-0R160iAXLH4#202211

89831JSENSOR, SIDE AIRBAG, LH, NO.4

main89831-0R160iAXLH4#202211

89860SENSOR ASSY, SIDE AIRBAG, RH

main8983A-0R021iAXLH4#202211

89860ASENSOR ASSY, SIDE AIRBAG, LH

main8983A-0R021iAXLH4#202211

90105C0314

main90105-C0314

90119C0184

main90119-C0184

90178C0032

main90178-C0032

14 parts on this diagram · 1 diagram in section
