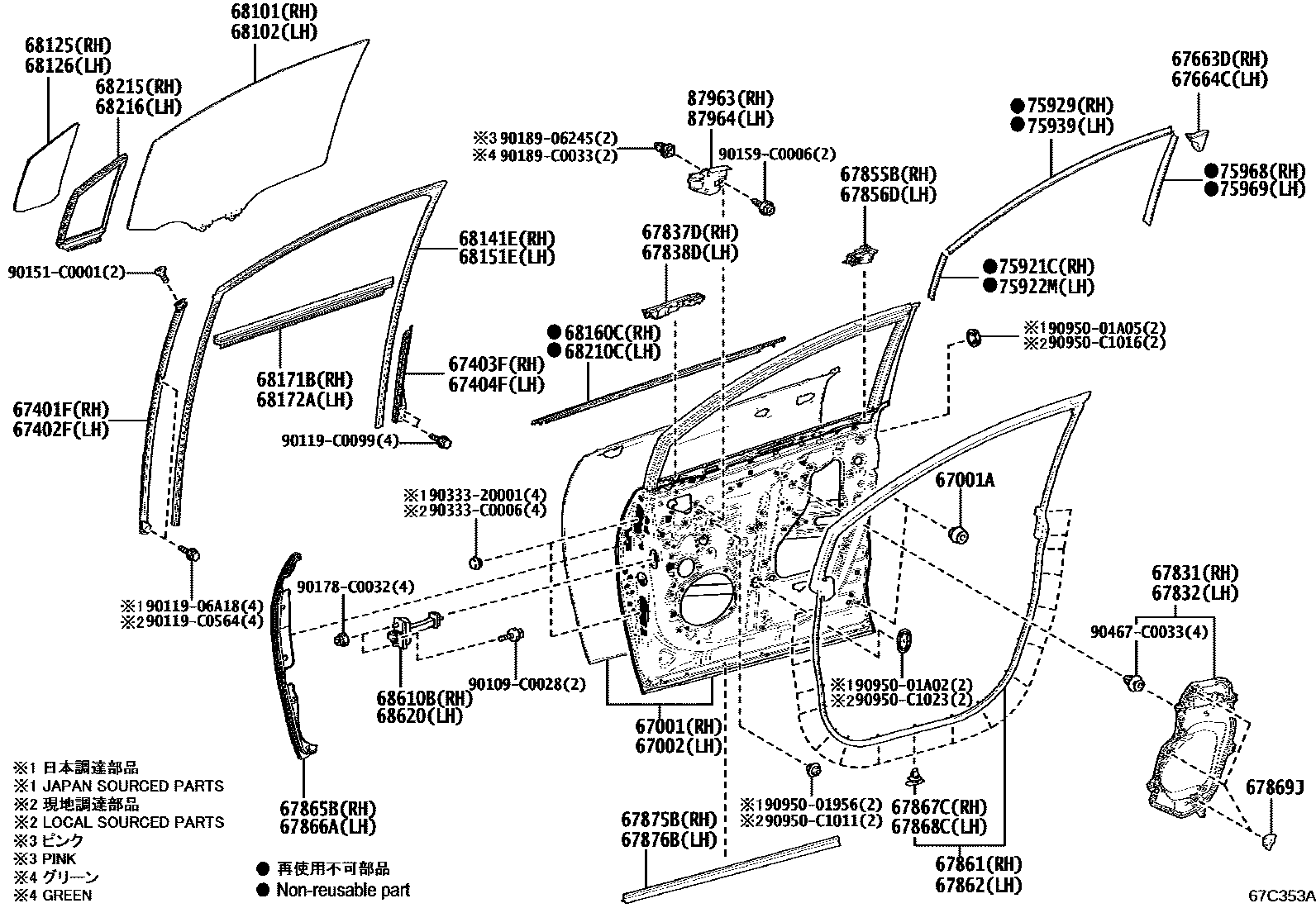

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-08100iAXLH4#202211

67001ACUSHION, FRONT DOOR PANEL

main90541-09143×4iAXLH4#202211

(J)

main90541-C0003×4iAXLH4#202211

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-08100iAXLH4#202211

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-08050iAXLH4#202211

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-08050iAXLH4#202211

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-08050iAXLH4#202211

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-08050iAXLH4#202211

67663DGARNISH, DOOR FRAME, RH

main67663-08040iAXLH4#202211

67664CGARNISH, DOOR FRAME, LH

main67664-08040iAXLH4#202211

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-08070iAXLH4#202211

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-08070iAXLH4#202211

67837DSEAL, FRONT DOOR VENT, RH

main67837-08070iAXLH4#202211

67838DSEAL, FRONT DOOR VENT, LH

main67838-08040iAXLH4#202211

67855BPROTECTOR, FRONT DOOR PANEL, RH

main67855-08050iAXLH4#202211

67856DPROTECTOR, FRONT DOOR PANEL, LH

main67856-08050iAXLH4#202211

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-08050iAXLH4#202211

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-08050iAXLH4#202211

67865BWEATHERSTRIP, FRONT DOOR, NO.3 RH

main67865-08040iAXLH4#202211

67866AWEATHERSTRIP, FRONT DOOR, NO.3 LH

main67866-08040iAXLH4#202211

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×18iAXLH4#202211

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×18iAXLH4#202211

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-47010×6iAXLH4#202211

(J)

main67869-F4020×6iAXLH4#202211

(L)

67875BWEATHERSTRIP, FRONT DOOR, NO.4 RH

main67875-08030iAXLH4#202211

67876BWEATHERSTRIP, FRONT DOOR, NO.4 LH

main67875-08030iAXLH4#202211

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-08110iAXLH40..X202211-202404

main68101-08120iAXLH4#..L,P,V,W202211

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-08110iAXLH40..X202211-202404

main68102-08120iAXLH4#..L,P,V,W202211

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-08030iAXLH4#202211

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-08030iAXLH4#202211

68141ERUN, FRONT DOOR GLASS, RH

main68141-08050iAXLH4#202211

68151ERUN, FRONT DOOR GLASS, LH

main68151-08050iAXLH4#202211

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-08050iAXLH4#202211

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-08050iAXLH4#202211

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-08050iAXLH4#202211

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-08050iAXLH4#202211

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-08030iAXLH4#202211

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-08030iAXLH4#202211

68610BCHECK ASSY, FRONT DOOR, RH

main68610-08050iAXLH4#202211

68620CHECK ASSY, FRONT DOOR, LH

main68610-08050iAXLH4#202211

75921CTAPE, BLACK OUT, NO.1 RH

main75921-08050iAXLH4#202211

75922MTAPE, BLACK OUT, NO.1 LH

main75922-08050iAXLH4#202211

75929TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH

main75929-08040iAXLH4#202211

75939TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH

main75939-08040iAXLH4#202211

75968TAPE, BLACK OUT FRONT DOOR, INNER REAR RH

main75968-08040iAXLH4#202211

75969TAPE, BLACK OUT FRONT DOOR, INNER REAR LH

main75969-08040iAXLH4#202211

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-08030iAXLH4#202211-202408

main87963-08031iAXLH4#202409

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-08030iAXLH4#202211-202408

main87964-08031iAXLH4#202409

90109C0028

main90109-C0028

9011906A18

main90119-06A18

90119C0099

main90119-C0099

90119C0564

main90119-C0564

90151C0001

main90151-C0001

90159C0006

main90159-C0006

90178C0032

main90178-C0032

9018906245

main90189-06245

90189C0033

main90189-C0033

9033320001

main90333-20001

90333C0006

main90333-C0006

90467C0033

main90467-C0033

9095001956

main90950-01956

9095001A02

main90950-01A02

9095001A05

main90950-01A05

90950C1011

main90950-C1011

90950C1016

main90950-C1016

90950C1023

main90950-C1023

64 parts on this diagram · 2 diagrams in section
