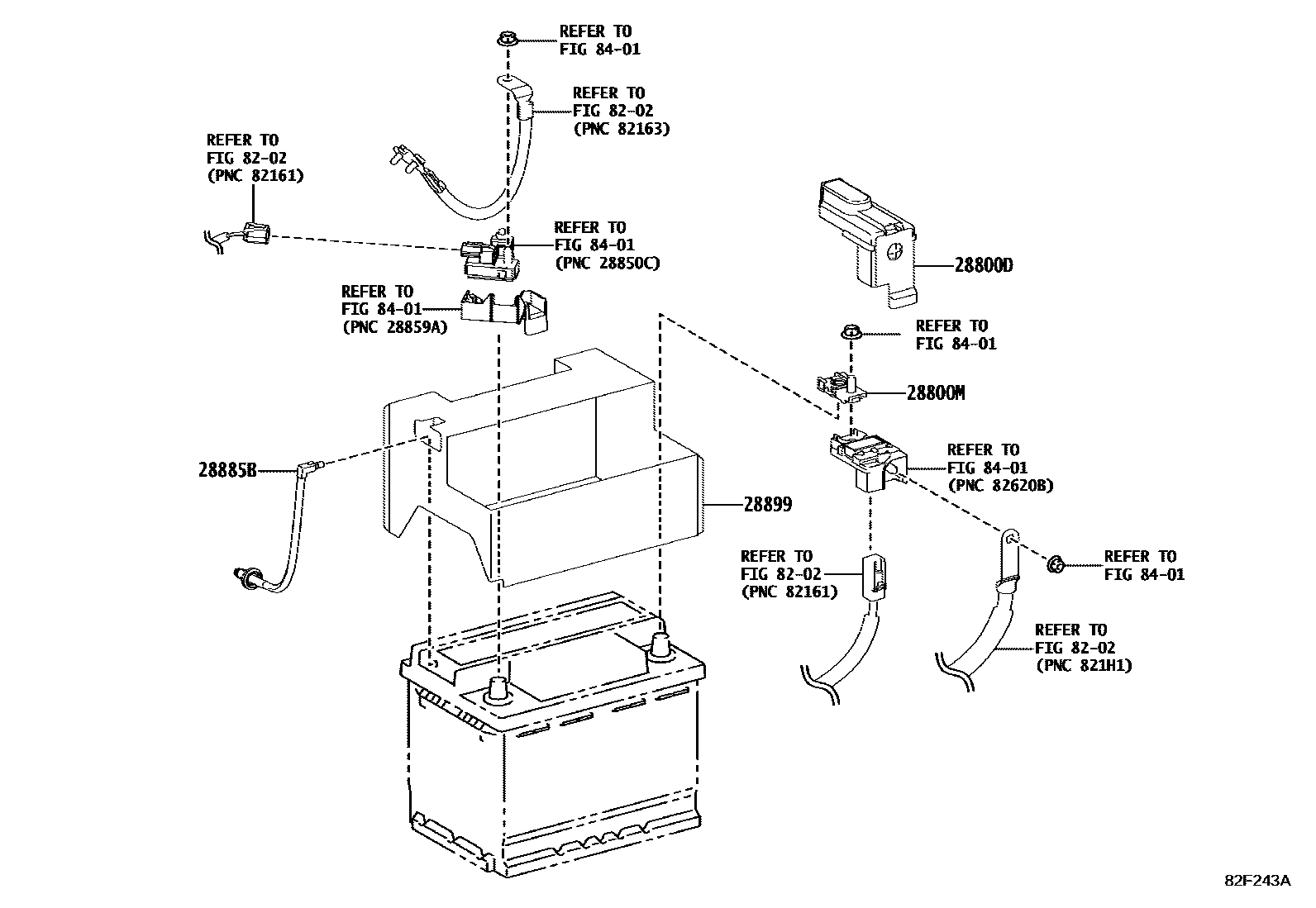

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 1/2 0003 1HV BATTERY 2/2

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-08090iA25DFXS..AXLH4#202112

28800MTERMINAL, BATTERY POSITIVE

main90982-05061iA25DFXS..AXLH4#202112

28885BHOSE, BATTERY

main28885-F0100iA25DFXS..AXLH40202112

28899INSULATOR, BATTERY

main28899-F0090iA25DFXS..AXLH40202112

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6 parts on this diagram · 3 diagrams in section
