FLOOR MAT & SILENCER PAD
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58441JCOVER, BATTERY SERVICE HOLE
NEUTRAL WARM GRAY,TRIM10,LH
NEUTRAL WARM GRAY,TRIM1#,LH
BLACK,TRIM0#,1#,2#,4#,LH
BLACK,TRIM11,2#,4#,LH
BLACK,TRIM0#,2#,4#,LH
BLACK,TRIM2#,LH
NEUTRAL WARM GRAY,TRIM1#,RH
NEUTRAL WARM GRAY,TRIM10,RH
BLACK,TRIM2#,RH
BLACK,TRIM11,2#,4#,RH
BLACK,TRIM0#,1#,2#,4#,RH
BLACK,TRIM0#,2#,4#,RH
58441NCLIP(FOR BATTERY SERVICE HOLE COVER)
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58442DCOVER, JACK
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58460GSTRIKER ASSY, LUGGAGE HOLD BELT
58511ECLIP(FOR FRONT FLOOR MAT)
58511FCARPET, FLOOR, FRONT RH
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58512DCARPET, FLOOR, FRONT LH
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58513DCARPET, FLOOR, FRONT CENTER
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
58530BCLIP(FOR FRONT FLOOR CARPET)
58556FCLIP, REAR FLOOR SILENCER
58651DSHEET, REAR FLOOR SILENCER, NO.1
58653BSHEET, REAR FLOOR SILENCER, NO.2
58661SHEET, REAR FLOOR SILENCER, NO.3
58694APLATE, MAT SET, UPPER
58698BPLATE, MAT SET, LOWER
58792JSUPPORT, JACK CARRIER
64993CBOX, DECK FLOOR, REAR
67935PLATE, BACK DOOR SCUFF
NEUTRAL WARM GRAY,TRIM10
NEUTRAL WARM GRAY,TRIM1#
BLACK,TRIM11,2#,4#
BLACK,TRIM0#,1#,2#,4#
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#
7158SEAT RAIL
8201BATTERY & BATTERY CABLE
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
C3224SPACER, FLOOR PANEL SIDE, LH
9011906A44
main90119-06A44
90178C0011
main90178-C0011
9046705171
main90467-05171
9046706147
main90467-06147
9046713079
main90467-13079
90467C0036
main90467-C0036
90467C0087
main90467-C0087
90467C0093
main90467-C0093

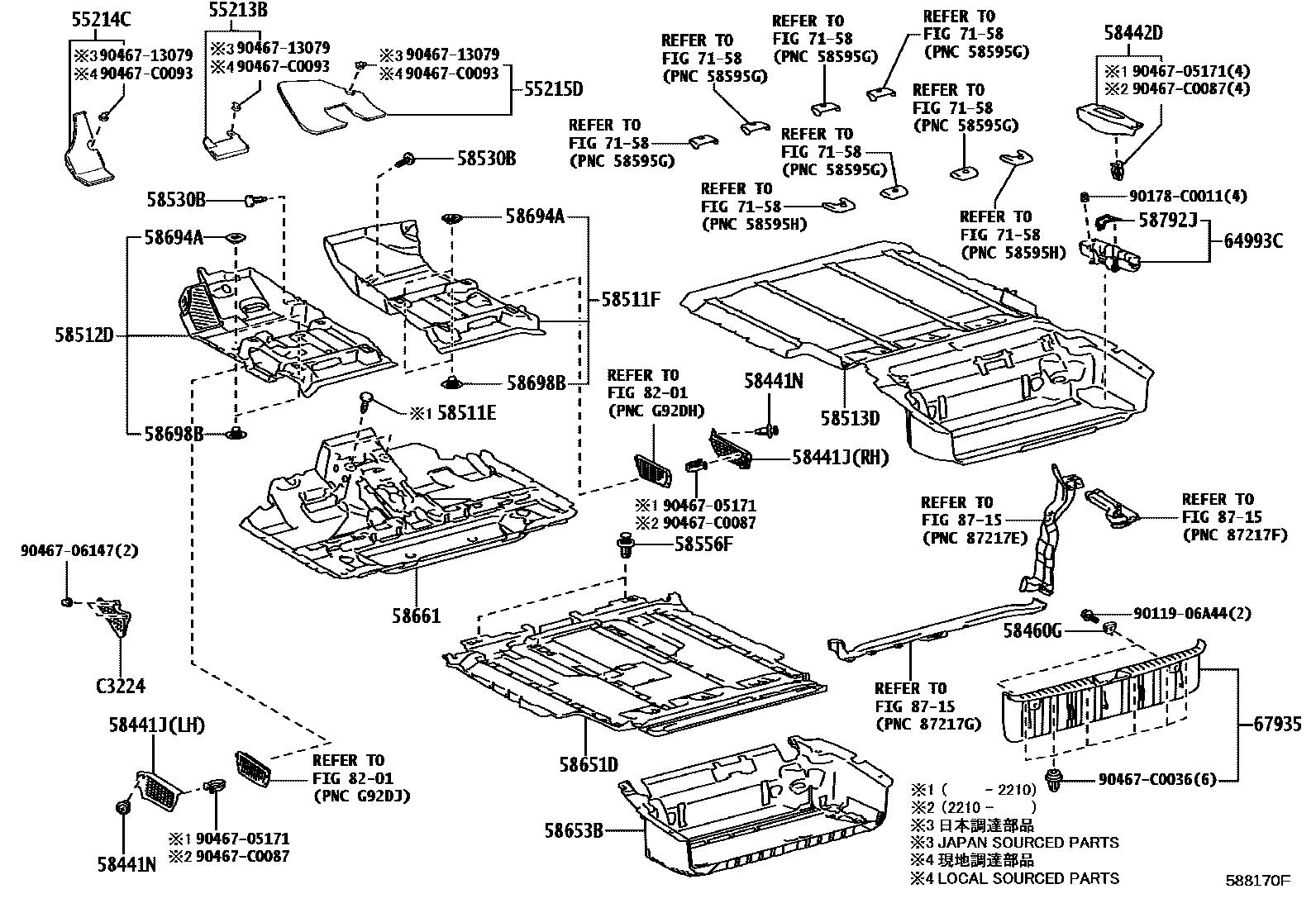

33 parts on this diagram · 2 diagrams in section
