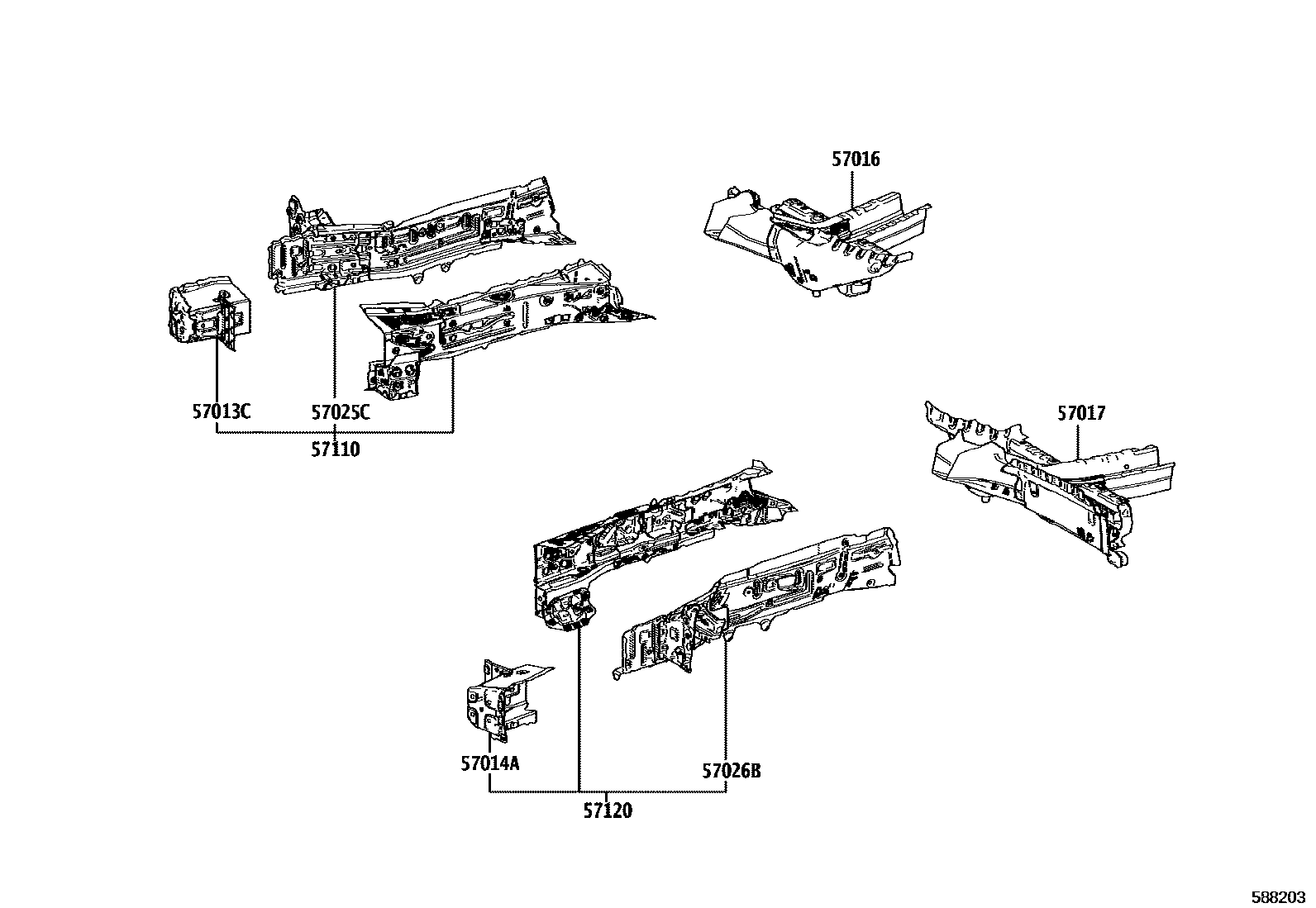

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FRONT SIDE MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR PANEL

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-08090iAXLH4#202112

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-08030iAXLH4#202112

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-08030iAXLH4#202112

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-08030iAXLH4#202112

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-08040iAXLH4#202112

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-08040iAXLH4#202112

57110MEMBER ASSY, FRONT SIDE, RH

main57110-08020iAXLH4#202112

57120MEMBER ASSY, FRONT SIDE, LH

main57120-08020iAXLH4#202112

8 parts on this diagram · 3 diagrams in section
