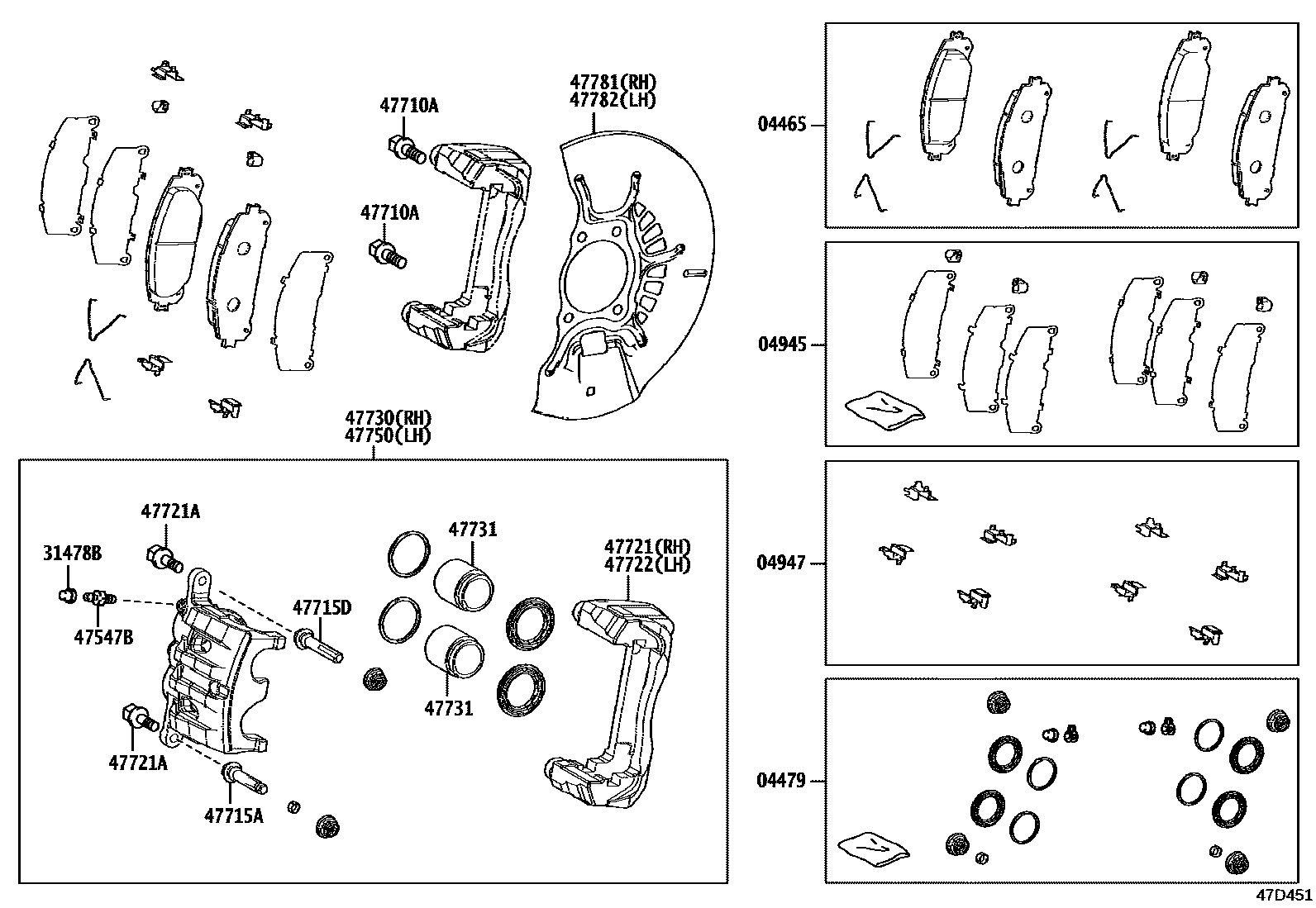

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0R040iAXLH4#202112

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0R030iAXLH4#202112

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0R060iAXLH4#202112

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0E020iAXLH4#202112

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0N010iAXLH4#202112

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iAXLH4#202112

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-C0361iAXLH4#202112

*14-1.5PX35.5-31

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-0D210iAXLH4#202112

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47714-0R020iAXLH4#202112

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-08050iAXLH4#202112

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA608iAXLH4#202112

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-08060iAXLH4#202112

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-08050iAXLH4#202112

47731PISTON, FRONT DISC BRAKE

main47731-0R050iAXLH4#202112

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-08060iAXLH4#202112

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0E070iAXLH4#202112

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0E070iAXLH4#202112

17 parts on this diagram · 1 diagram in section
