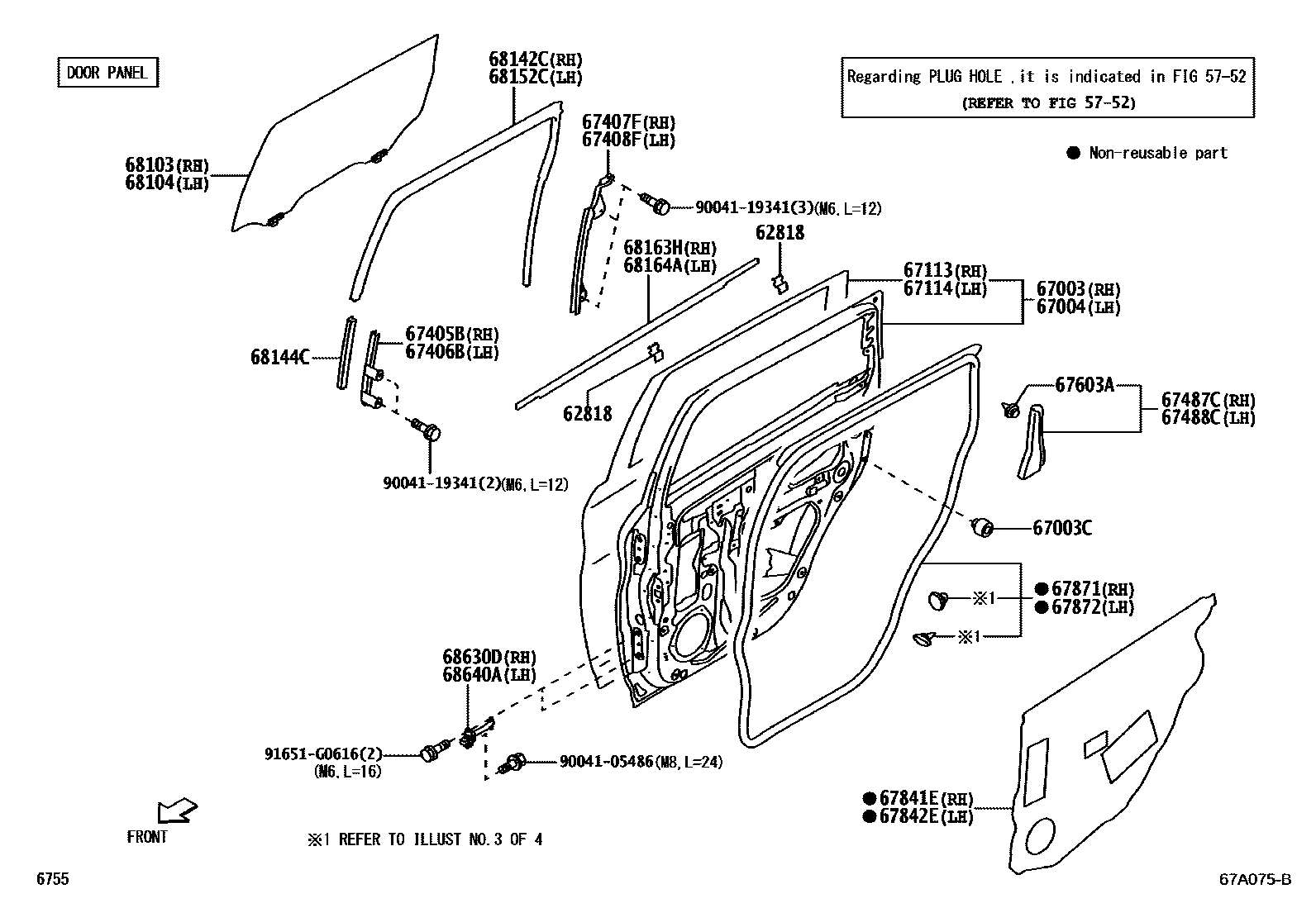

REAR DOOR PANEL & GLASS
5752HOLE PLUG
62818STOPPER, REAR WINDOW GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
-,TRIM1#
67603ARETAINER(FOR REAR DOOR TRIM BOARD)
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68144CRUN, REAR DOOR GLASS, LOWER FRONT
68152CRUN, REAR DOOR GLASS, LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
9004105486
main90041-05486
9004119341
main90041-19341
91651G0616
main91651-G0616
31 parts on this diagram · 4 diagrams in section
