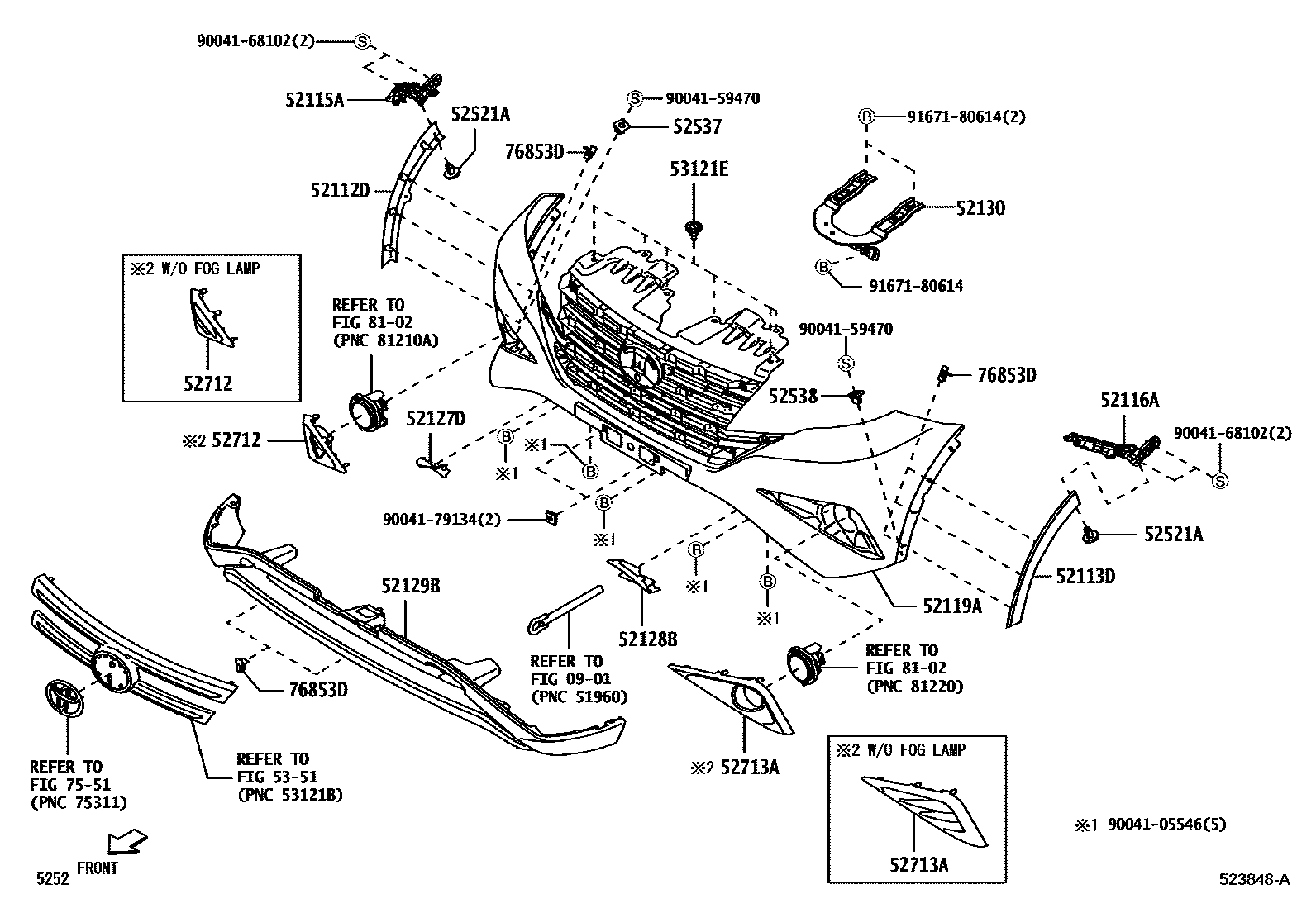

FRONT BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

52112DEXTENSION, FRONT BUMPER, RH

main52112-BZ130iF850201812-202310

52113DEXTENSION, FRONT BUMPER, LH

main52113-BZ110iF850201812-202310

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-BZ210iF850201812-202310

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-BZ170iF850201812-202310

52119ACOVER, FRONT BUMPER

main52119-BZP20iF850201812-202310

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-BZ780iF850201812-202310

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-BZ300iF850201812-202310

52129BCOVER, FRONT BUMPER, LOWER

main52129-BZ040iF850201812-202310

52130BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH

main52130-BZ060iF850201812-202310

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90044-67555×2iF850201812-202310

52537RETAINER, FRONT BUMPER END, RH

main52116-B2480iF850201812-202310

52538RETAINER, FRONT BUMPER END, LH

main52116-B2480iF850201812-202310

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-BZ250iF850..HI201812-202310

main52712-BZ270iF850..EXT201812-202310

52713AMOULDING, FRONT BUMPER SIDE, LH

main52713-BZ250iF850..HI201812-202310

main52713-BZ270iF850..EXT201812-202310

53121ECLIP(FOR FRONT BUMPER), NO.1

main9004A-46341×6iF850201812-202310

5351RADIATOR GRILLE

→ Go to FIG 53-51

7551EMBLEM & NAME PLATE

→ Go to FIG 75-51

76853DRETAINER, FRONT SPOILER, NO.1

main76854-BZ010×8iF850201812-202310

8102FOG LAMP

→ Go to FIG 81-02

9004105546

main90041-05546

9004159470

main90041-59470

9004168102

main90041-68102

9004179134

main90041-79134

9167180614

main91671-80614

25 parts on this diagram · 1 diagram in section
