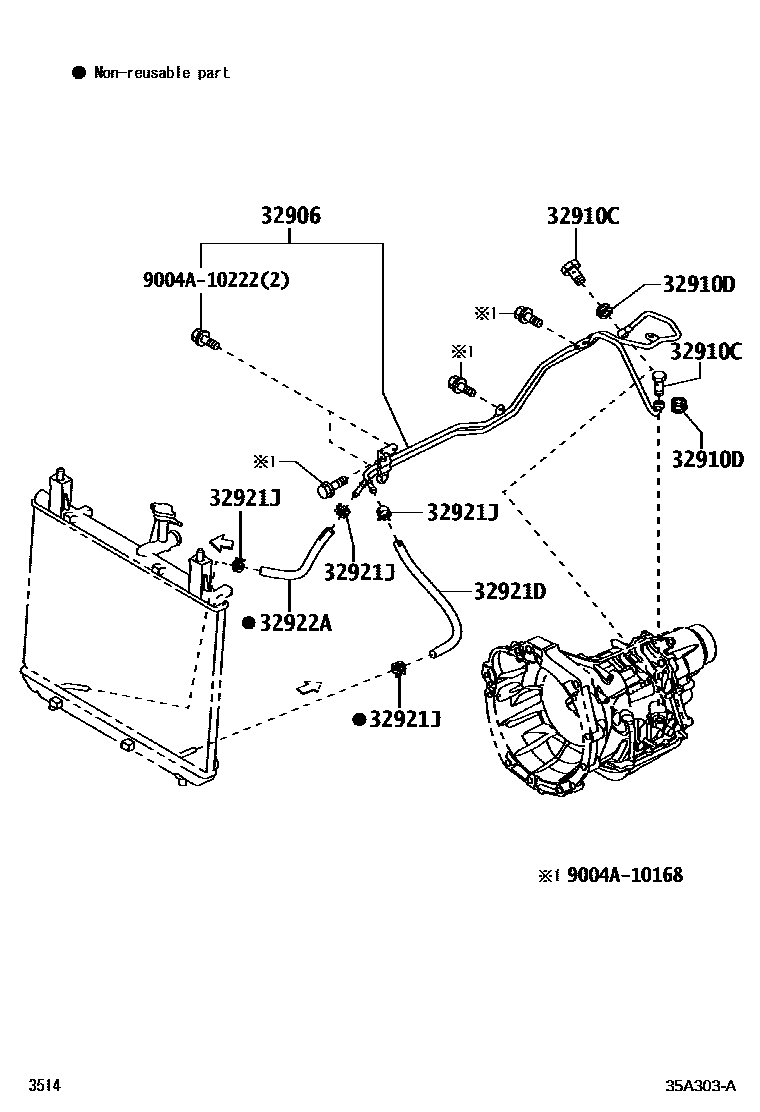

OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32909-BZ100iF850201812-202310

32910CBOLT, UNION(FOR OIL COOLER)

main90044-01081iF850201812-202310

32910DGASKET(FOR OIL COOLER)

main9004A-43023iF850201812-202310

32921DHOSE(FOR OIL COOLER INLET)

main32941-B0020iF850201812-202310

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16002iF850201812-202310

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-B0040iF850201812-202310

9004A10168

main9004A-10168

9004A10222

main9004A-10222

8 parts on this diagram · 1 diagram in section
