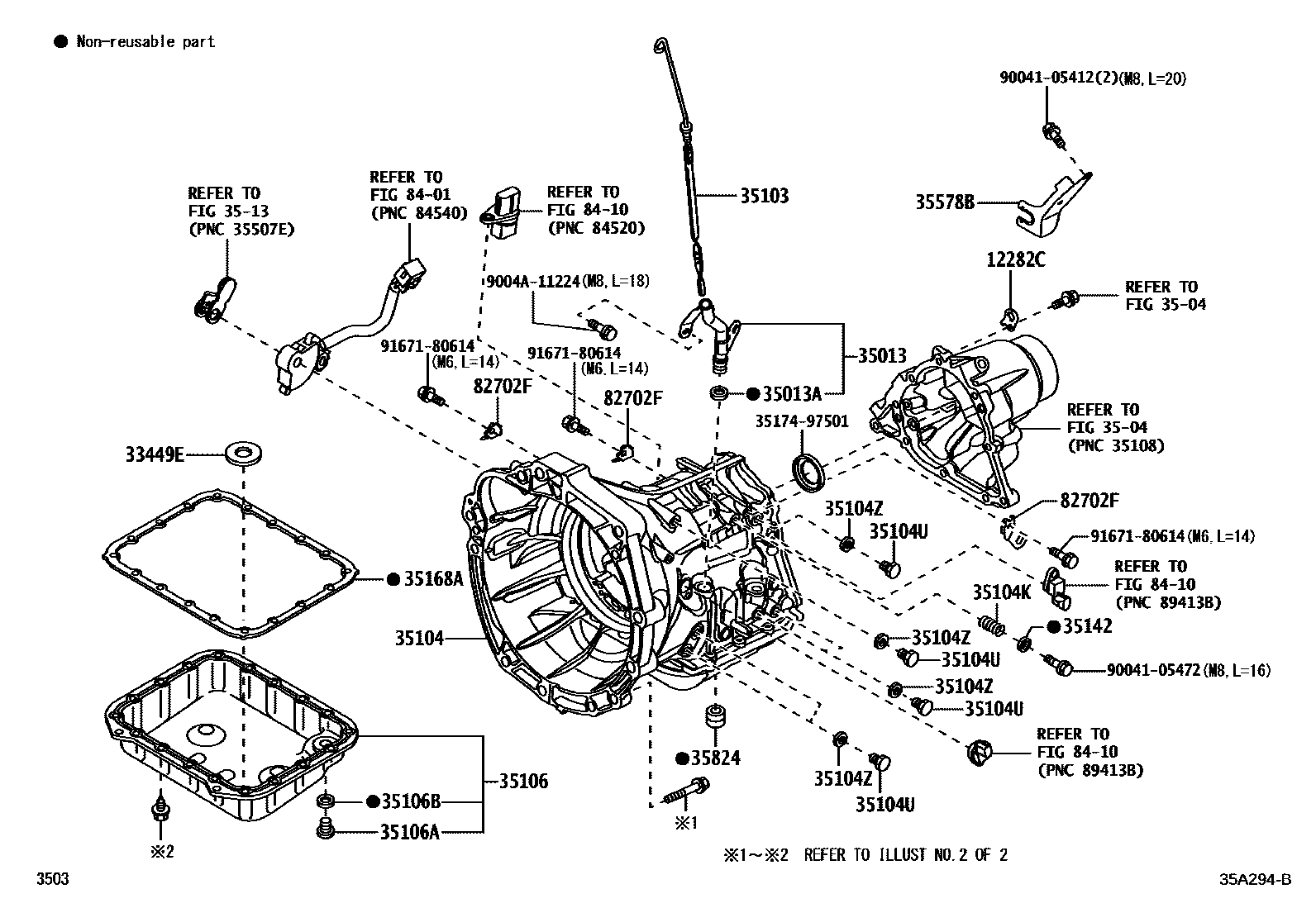

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1

12282CHANGER, ENGINE, NO.2

main12282-B1020i2NRVE..F850201812-202310

33449EMAGNET, TRANSAXLE

main33449-B2010iF850201812-202310

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-B1050iF850201812-202310

35013ARING, O(FOR TRANSMISSION OIL FILLER TUBE)

main90043-01193iF850201812-202310

3504EXTENSION HOUSING (ATM)

→ Go to FIG 35-04

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-BZ040iF850201812-202310

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35141-B1070iF850201812-202310

35104KCOMPRESSION SPRING, TRANSAXLE CASE

main90045-01951iF850201812-202310

35104UBOLT (FOR TRANSAXLE CASE)

main90041-05404×6iF850201812-202310

35104ZGASKET (FOR TRANSAXLE CASE)

main90044-30317×6iF850201812-202310

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35160-B1050iF850201812-202310

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iF850201812-202310

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iF850201812-202310

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35142GASKET, TRANSMISSION CASE(ATM)

main90044-30330iF850201812-202310

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-B1060iF850201812-202310

35578BBRACKET, TRANSMISSION CONTROL CABLE

main33524-B1040iF850201812-202310

35824SEAL, BRAKE CYLINDER

main35824-97501iF850201812-202310

82702FBRACKET SUB-ASSY, WIRING HARNESS

main82715-BZA40×3iF850201812-202310

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

3517497501SEPARATOR, TRANSAXLE HOUSING OIL

main35174-97501

9004105412

main90041-05412

9004105472

main90041-05472

9004A11224

main9004A-11224

9167180614

main91671-80614

26 parts on this diagram · 2 diagrams in section
