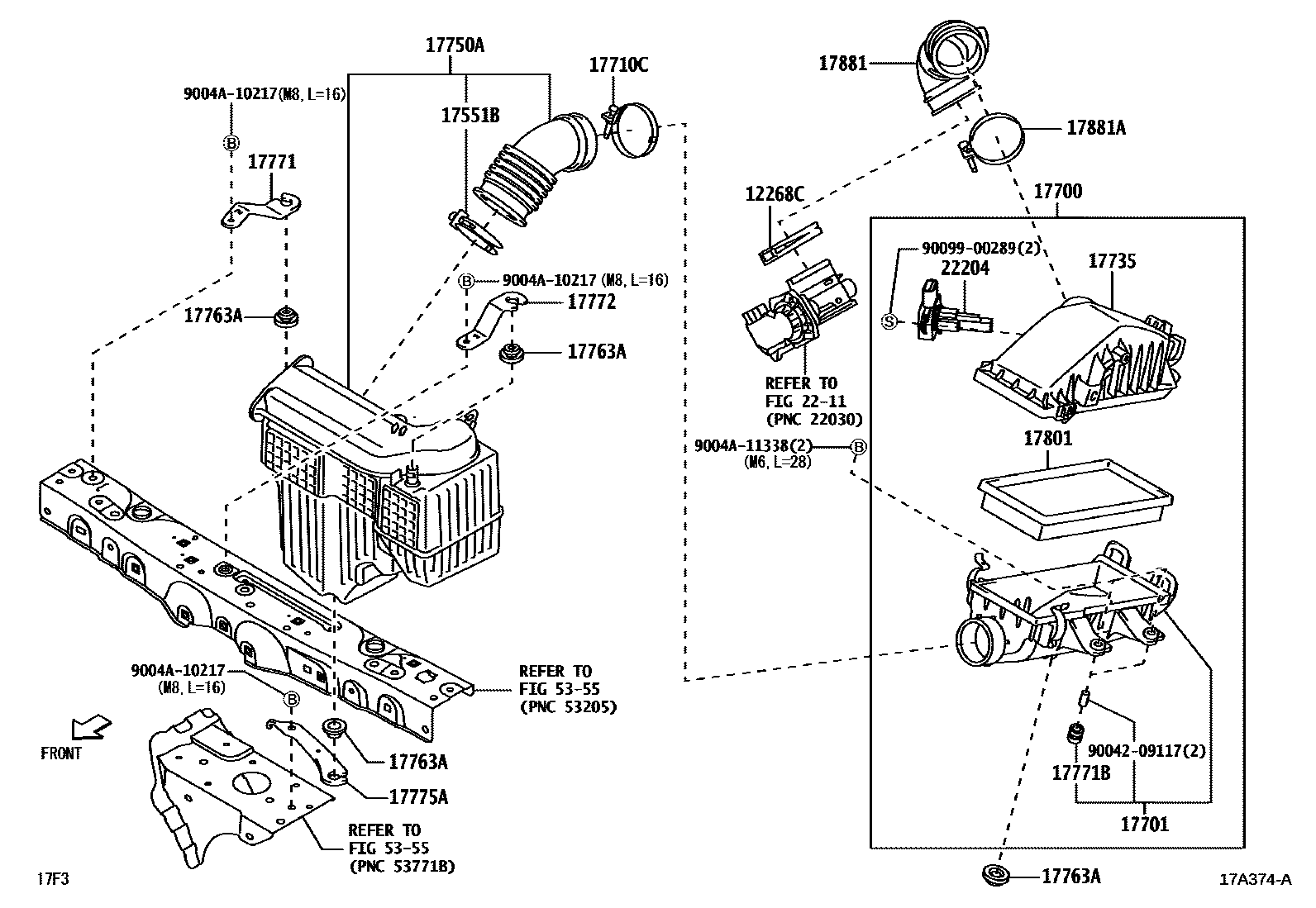

AIR CLEANER
12268CCLIP, HOSE
17551BCLAMP(FOR AIR CLEANER INLET, NO.1)
17700CLEANER ASSY, AIR
17701CASE SUB-ASSY, AIR CLEANER
17710CCLAMP(FOR AIR CLEANER INLET DUCT)
17735CAP, AIR CLEANER
17750AINLET ASSY, AIR CLEANER
17763AGROMMET, AIR CLEANER INLET DUCT
17771BRACKET, AIR CLEANER INLET DUCT
17771BGROMMET(FOR AIR CLEANER BRACKET)
17772BRACKET, INTAKE AIR CONNECTOR, NO.2
17775ABRACKET, AIR CLEANER PIPE, NO.3
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
2211FUEL INJECTION SYSTEM
22204METER SUB-ASSY, INTAKE AIR FLOW
5355FRONT FENDER APRON & DASH PANEL
9004209117
main90042-09117
9004A10217
main9004A-10217
9004A11338
main9004A-11338
9009900289
main90099-00289
22 parts on this diagram · 1 diagram in section
