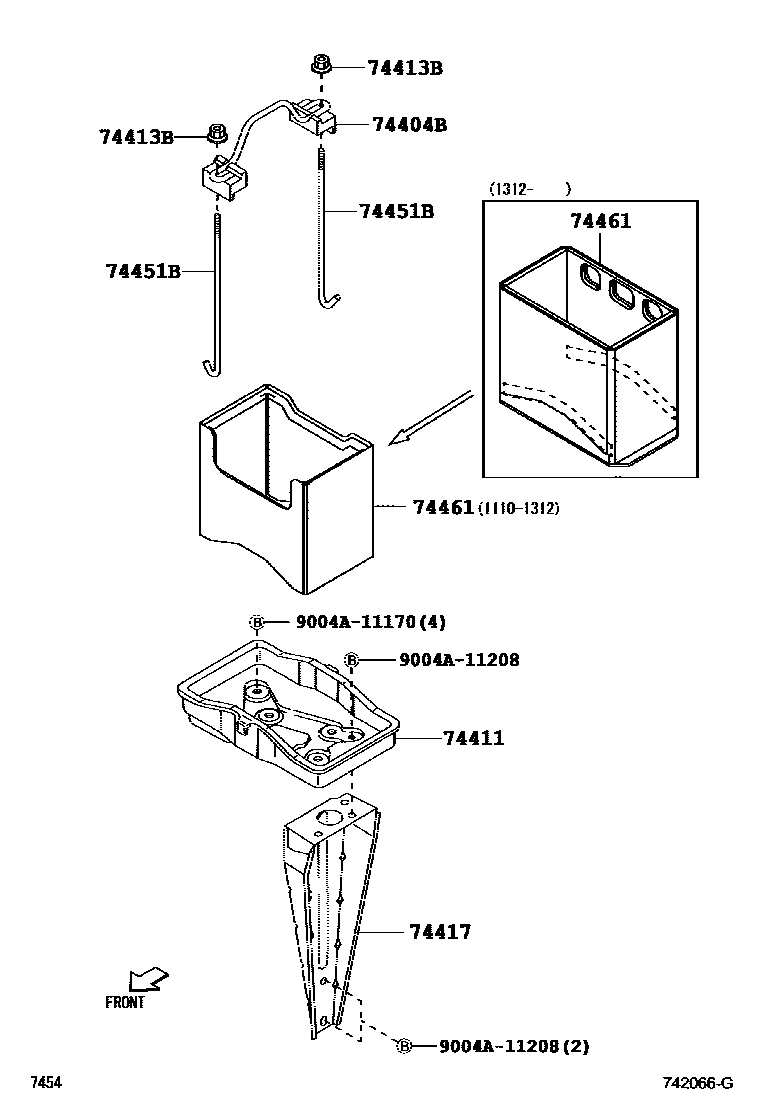

BATTERY CARRIER

74404BCLAMP SUB-ASSY, BATTERY

main74404-BZ010iF700200612-201009

74411CARRIER, BATTERY

main74411-BZ010iF700200612-201009

74413BNUT, WING (FOR BATTERY CLAMP BOLT)

main90041-79111×2iF700200612-201009

74417BRACKET, BATTERY CARRIER

main74417-BZ040iF700200612-201009

74451BBOLT, BATTERY CLAMP

main74451-87Z07×2iF700200612-201009

74461COVER, BATTERY

main74405-B1010iF700201110-201211

main74405-BZ020iF700201212-201312

main74405-BZ030iF700201312-201503

9004A11170

main9004A-11170

9004A11208

main9004A-11208

8 parts on this diagram · 1 diagram in section
