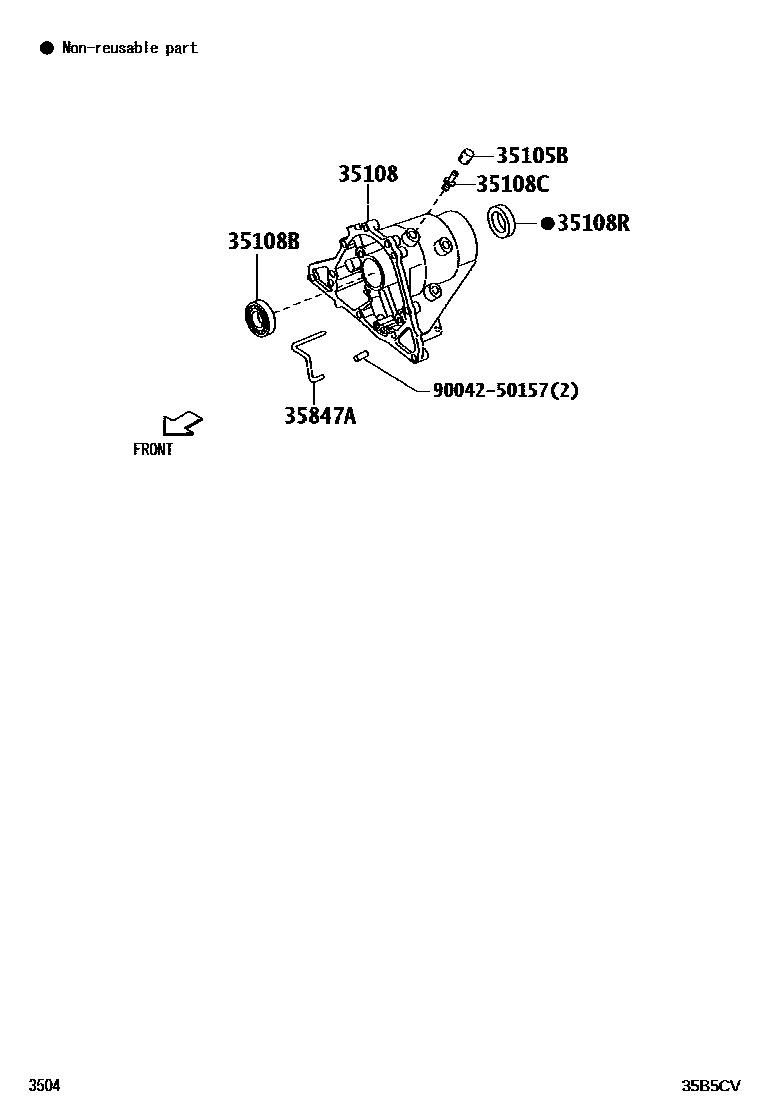

EXTENSION HOUSING (ATM)

35105BPLUG, BREATHER

main90049-15050iF700..E4AT200612-201009

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-B0011iF700..E4AT200612-201009

35108BBEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90043-63277iF700..E4AT200612-201009

35108CPLUG (FOR AUTOMATIC EXTENSION HOUSING)

main90049-15048iF700..E4AT200612-201009

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90043-11285iF700..E4AT200612-201009

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-97501iF700..E4AT200612-201009

9004250157

main90042-50157

7 parts on this diagram · 1 diagram in section
