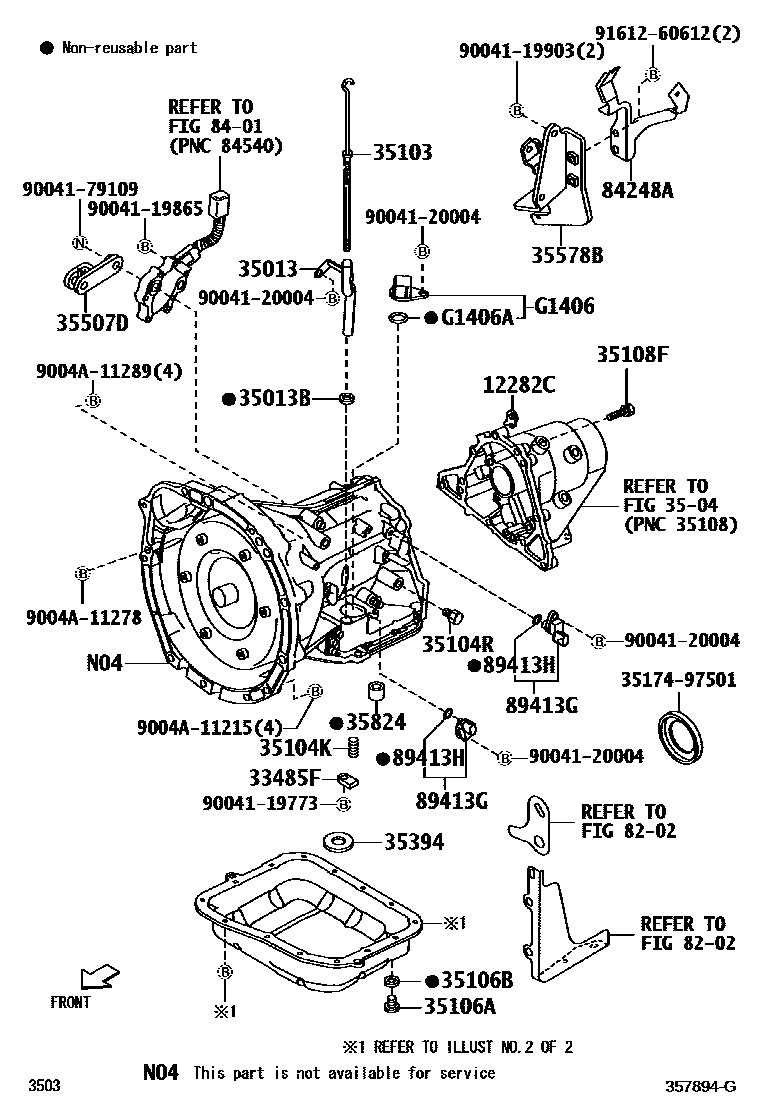

TRANSMISSION CASE & OIL PAN (ATM)

0001 1 0002 1 0003 1

12282CHANGER, ENGINE, NO.2

main12282-B5030i3SZVE..F700..E4AT200612-201009

33485FPLATE, SPEEDMETER LOCK

main33485-87201iF700..E4AT200612-201009

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-87402iF700..E4AT200612-201009

35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90043-01193iF700..E4AT200612-201009

3504EXTENSION HOUSING (ATM)

→ Go to FIG 35-04

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-B0010iF700..E4AT200612-201009

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35141-B0010iF700..E4AT..IDN200612-200808

main35141-B0011iF700..E4AT..IDN200809-201009

main35141-B0012iF700..E4AT..IDN201506

35104KCOMPRESSION SPRING, TRANSAXLE CASE

main90045-01801iF700..E4AT200612-201009

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90043-45040×8iF700..E4AT200612-201009

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iF700..E4AT200612-201009

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iF700..E4AT200612-201009

35108FBOLT, W/WASHER

main90041-19775×10iF700..E4AT200612-201009

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main33449-87502iF700..E4AT200612-200906

main33449-B2010iF700..E4AT200907-201009

35507DLEVER, TRANSMISSION CONTROL SHAFT

main35507-87402iF700..E4AT200612-201009

35578BBRACKET, TRANSMISSION CONTROL CABLE

main33524-B0010iF700..E4AT200612-201009

35824SEAL, BRAKE CYLINDER

main35824-97501iF700..E4AT200612-201009

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84248ACLAMP, SWITCH HARNESS

main84248-BZ020iF700..E4AT200612-201009

89413GSENSOR, TRANSMISSION REVOLUTION

main89413-97202×2iF700..E4AT200612-201009

89413HRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278×2iF700..E4AT200612-201009

G1406CONNECTOR SUB-ASSY, TRANS SOLENOID

mainG140697201iF700..E4AT200612-201009

G1406ARING, O(FOR TRANS SOLENOID CONNECTOR)

main90043-01281iF700..E4AT200612-201009

3517497501SEPARATOR, TRANSAXLE HOUSING OIL

main35174-97501

9004119773

main90041-19773

9004119865

main90041-19865

9004119903

main90041-19903

9004120004

main90041-20004

9004179109

main90041-79109

9004A11215

main9004A-11215

9004A11278

main9004A-11278

9004A11289

main9004A-11289

9161260612

main91612-60612

33 parts on this diagram · 3 diagrams in section
