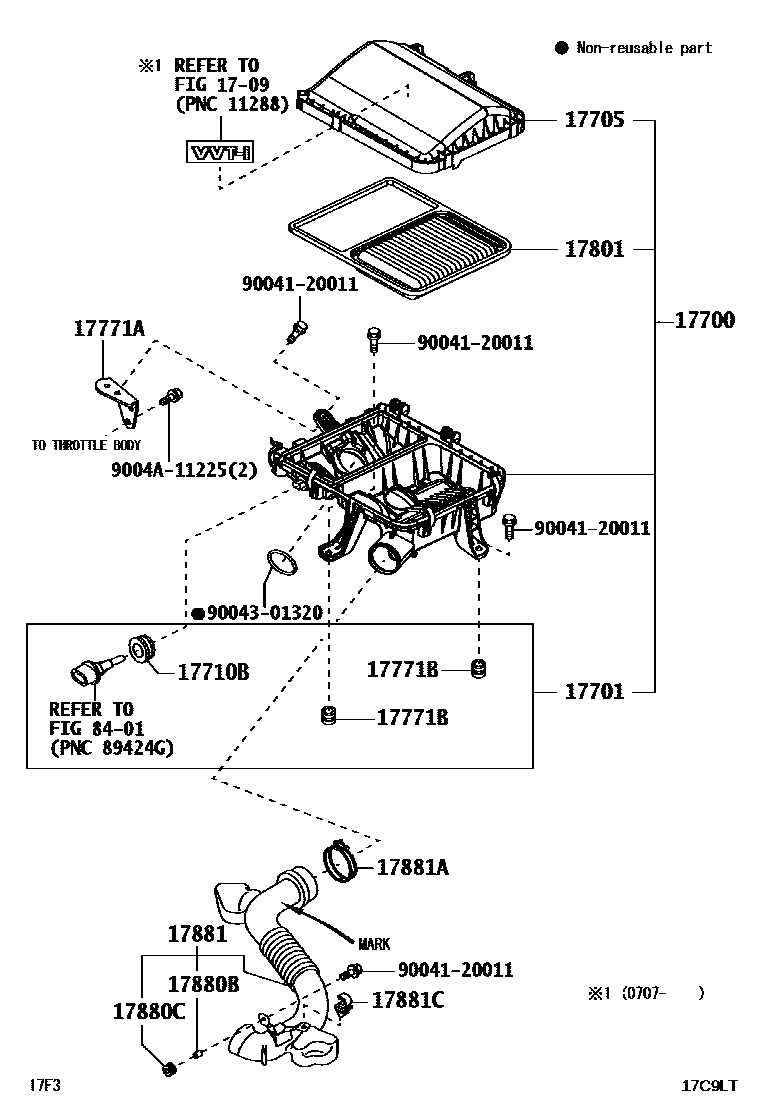

AIR CLEANER

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17700CLEANER ASSY, AIR

main17700-BZ070i3SZVE..F700200612-200707

main17700-BZ071i3SZVE..F700200707-201009

main17700-BZ190i3SZVE..F700201409-201503

17701CASE SUB-ASSY, AIR CLEANER

main17701-BZ080i3SZVE..F700200612-200707

main17701-BZ090i3SZVE..F700200707-201009

main17701-BZ091i3SZVE..F700201409-201503

17705CAP SUB-ASSY, AIR CLEANER

main17705-BZ070i3SZVE..F700200612-200707

main17705-BZ071i3SZVE..F700200707-201009

17710BGROMMET

main90044-80530i3SZVE..F700200612-201009

17771ABRACKET, AIR CLEANER

main17771-BZ090i3SZVE..F700200612-201009

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90044-80392×2i3SZVE..F700200612-201009

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-BZ050i3SZVE..F700200612-201009

17880BCOLLAR(FOR AIR CLEANER HOSE)

main9004B-38004i3SZVE..F700200612-201009

17880CGROMMET(FOR AIR CLEANER HOSE)

main9004B-48001i3SZVE..F700200612-201009

17881HOSE, AIR CLEANER, NO.1

main17881-BZ090i3SZVE..F700200612-200706

main17881-BZ091i3SZVE..F700200706-201009

main17881-BZ092i3SZVE..F700201010-201503

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main9004A-46128i3SZVE..F700200612-201009

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main90044-64563i3SZVE..F700200612-201009

main9004A-46364i3SZVE..F700201511

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004120011

main90041-20011

9004301320

main90043-01320

9004A11225

main9004A-11225

17 parts on this diagram · 1 diagram in section
