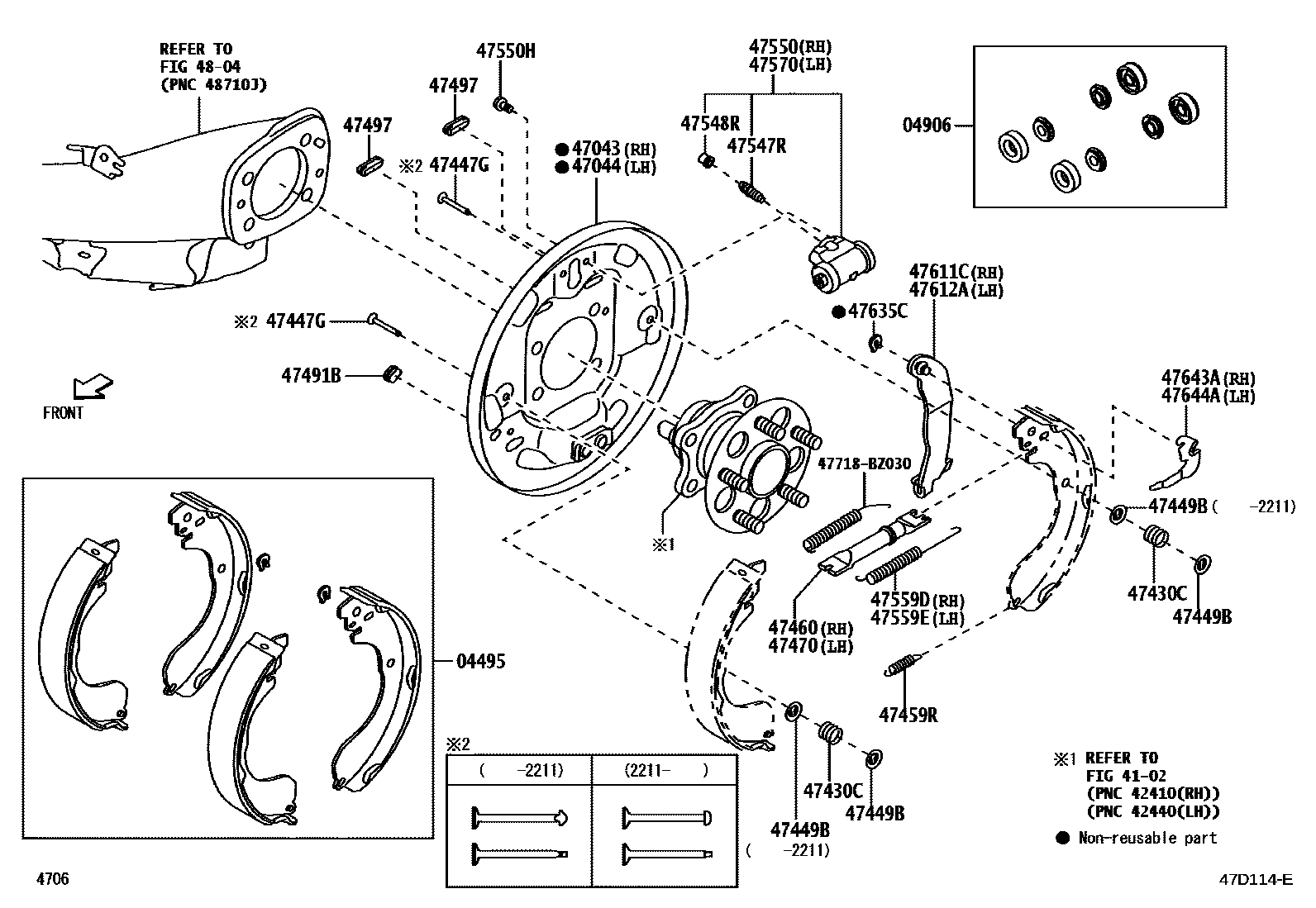

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04495SHOE KIT, REAR BRAKE

main04495-BZ180iW10#..(D,G,M)..(GEN,IDN,PHL,VN)202111-202406

main04495-BZ181iW100,101..(D,G,M)..(GEN,IDN,PHL,VN)202406

main04495-BZ190iW101..MXC202201-202406

main04495-BZ191iW101..MXC202406

04906CUP KIT, REAR WHEEL CYLINDER

main04906-BZ020iW101..MXC202201

main04906-BZ120iW101..5F..PHL202111-202309

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-BZ130iW101..MXC202201

main47043-BZ160iW100;W101..CVT..M..PHL;W101..(G,M)..(GEN,IDN,VN)202111

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-BZ140iW101..MXC202201

main47044-BZ180iW101..5F..PHL202111-202309

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-BZ100×4iW101..5F..PHL202111-202309

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-BZ030×4iW101..MXC202201

main47447-BZ080×4iW10#..(D,G,M)..(GEN,IDN,PHL)202111-202211

main47447-BZ081×4iW101..5F..PHL202211-202309

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-BZ080×8iW10#..(D,G,M)..(GEN,IDN,PHL)202111-202211

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-BZ010×2iW101..5F..PHL202111-202309

main47459-BZ130×2iW101..MXC202201

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47460-BZ090iW101..5F..PHL202111-202309

main47460-BZ100iW101..MXC202201

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47470-BZ090iW101..5F..PHL202111-202309

main47470-BZ100iW101..MXC202201

47491BPLUG, HOLE(FOR REAR BRAKE)

main47419-BZ010×2iW100;W101..CVT..M..PHL;W101..(G,M)..(GEN,IDN,MXC,VN)202111

47497PLUG, HOLE NO.2(FOR REAR BRAKE)

main47419-BZ020×4iW100;W101..CVT..M..PHL;W101..(G,M)..(GEN,IDN,VN)202111

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-BZ110×2iW101..5F..PHL202111-202309

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-BZ080×2iW101..5F..PHL202111-202309

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-BZ130iW101..5F..PHL202111-202309

main47550-BZ140iW101..MXC202201

47550HBOLT(FOR REAR WHEEL CYLINDER)

main9004A-10131×4iW101..5F..PHL202111-202309

47559DSPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, RH

main47559-BZ030iW101..5F..PHL202111-202309

47559ESPRING, REAR BRAKE AUTOMATIC ADJUST LEVER SUPPORT, LH

main47559-BZ030iW101..5F..PHL202111-202309

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-BZ130iW100;W101..CVT..M..PHL;W101..(G,M)..(GEN,IDN,VN)202111

main47550-BZ140iW101..MXC202201

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-BZ070iW101..MXC202201

main47611-BZ090iW100;W101..CVT..M..PHL;W101..(G,M)..(GEN,IDN,VN)202111

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-BZ070iW101..MXC202201

main47612-BZ090iW101..5F..PHL202111-202309

47635CRETAINER, ADJUSTING BOLT SPRING

main47635-BZ030×2iW101..5F..PHL202111-202309

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-BZ090iW101..5F..PHL202111-202309

main47643-BZ110iW101..MXC202201

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-BZ080iW101..5F..PHL202111-202309

main47644-BZ090iW101..MXC202201

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

47718BZ030SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-BZ030
