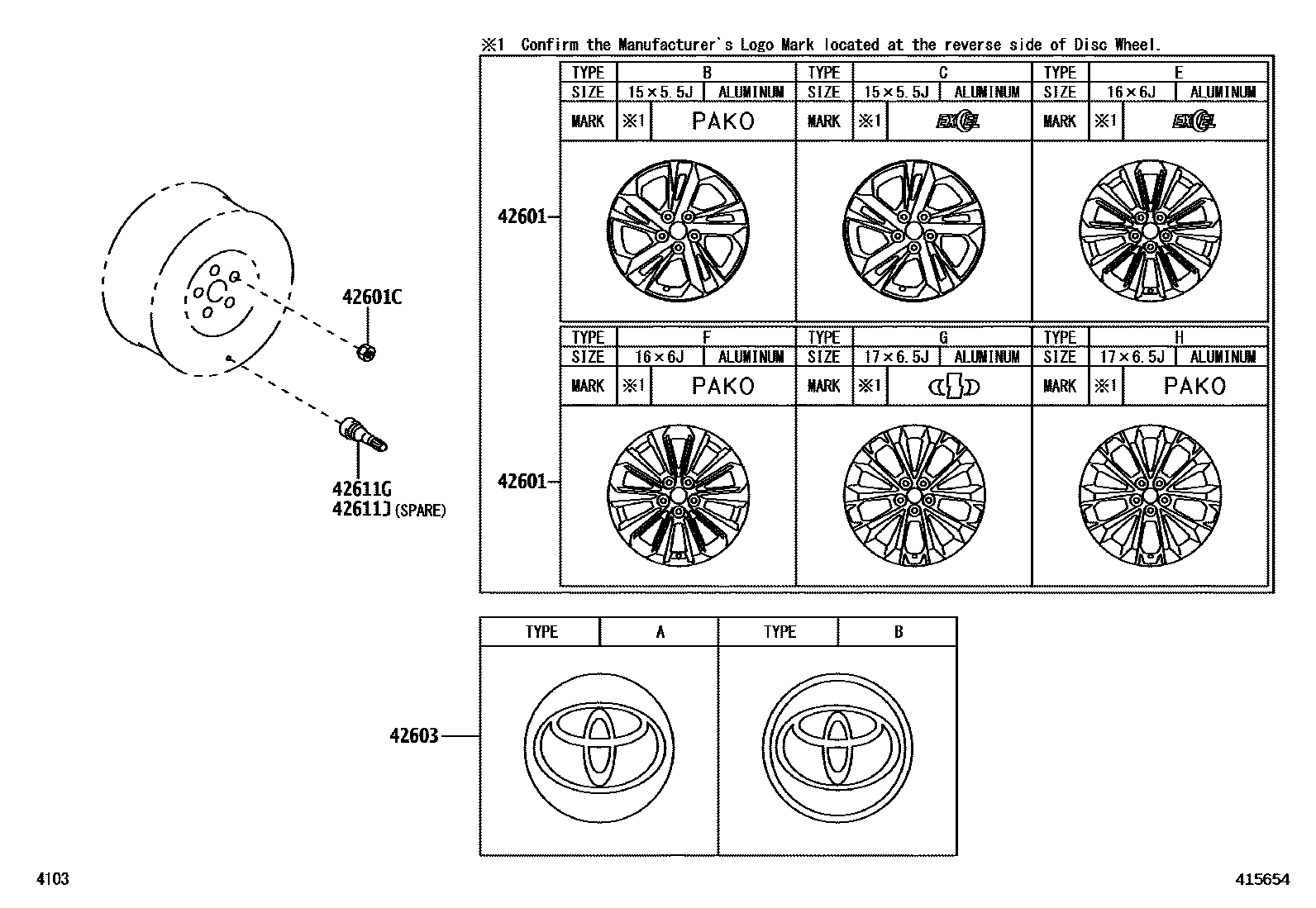

DISC WHEEL & WHEEL CAP

0001 1WHEEL 0002 1WHEEL 0003 1WHEEL 0004 1WHEEL 0005 1WHEEL 0006 1WHEEL(SPARE) 0007 1WHEEL(SPARE) 0008 1WHEEL(SPARE) 0009 1WHEEL(SPARE) 0010 1WHEEL(SPARE) 0011 1ORNAMENT,WHEEL CAP 0012 1WEIGHT, BALANCE 0014 1WEIGHT, BALANCE

42601WHEEL, DISC

main42611-BZB50×4iW100..LHD..D; W101..CVT..MXC202201

15X5.5J(ST),PERU + BOLIVIA,TYPE A BLACK; 15X5.5J(ST),TYPE A BLACK

main42611-BZE10×4iW100..M;W100..IDN;W101..M..GEN;W101..5F..GEN202111

15X5.5J(AL),TYPE B SILVER

main42611-BZE40×4iW101..CVT..G;W101..(M,S)..(GCC,IDN,PHL,THAI)202111

16X6J(AL),TYPE E

main42611-BZE60×4iW101..V..(GCC,IDN,PHL,THAI)202111

17X6.5J(AL),TYPE G

main42611-BZF90×4iW100..M;W100..IDN;W101..M..GEN;W101..5F..GEN202111

15X5.5J(AL),TYPE C

main42611-BZG00×4iW101..CVT..G;W101..(M,S)..(GCC,IDN,PHL,THAI)202111

16X6J(AL),TYPE F BLACK

main42611-BZG10×4iW101..V..(GCC,IDN,PHL,THAI)202111

17X6.5J(AL),TYPE H BLACK

main42611-BZK50×4iW101..(M,S)..VN202212

16X6J(AL),TYPE I

main42611-BZK60×4iW101..V..VN202212

17X6.5J(AL),TYPE J

42601CNUT, HUB (FOR AXLE)

main9004A-94124×20iW100..IDN;W101..CVT..MXC;W100,101..(G,M,S,V)..(GCC,GEN,IDN,PHL,THAI,VN)202111

TYPE B

main9004A-94125×20iW100..LHD..D;W101..5F..MXC; W101..CVT..MXC202201

PERU + BOLIVIA,TYPE A; TYPE A

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42638-BZ080×4iW100..M;W100..IDN;W101..M..GEN;W101..5F..GEN202111

*ALU,TYPE A

main42638-BZ490×4iW101..CVT..G;W101..GCC,IDN,PHL,THAI,VN202111

*ALU,TYPE B

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iW100,101..GEN,IDN,PHL,THAI202111

main90942-05009×4iW101..VN202212

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iW100,101..GEN,IDN,PHL,THAI202111

main90942-05009iW101..VN202212

5 parts on this diagram · 13 diagrams in section
