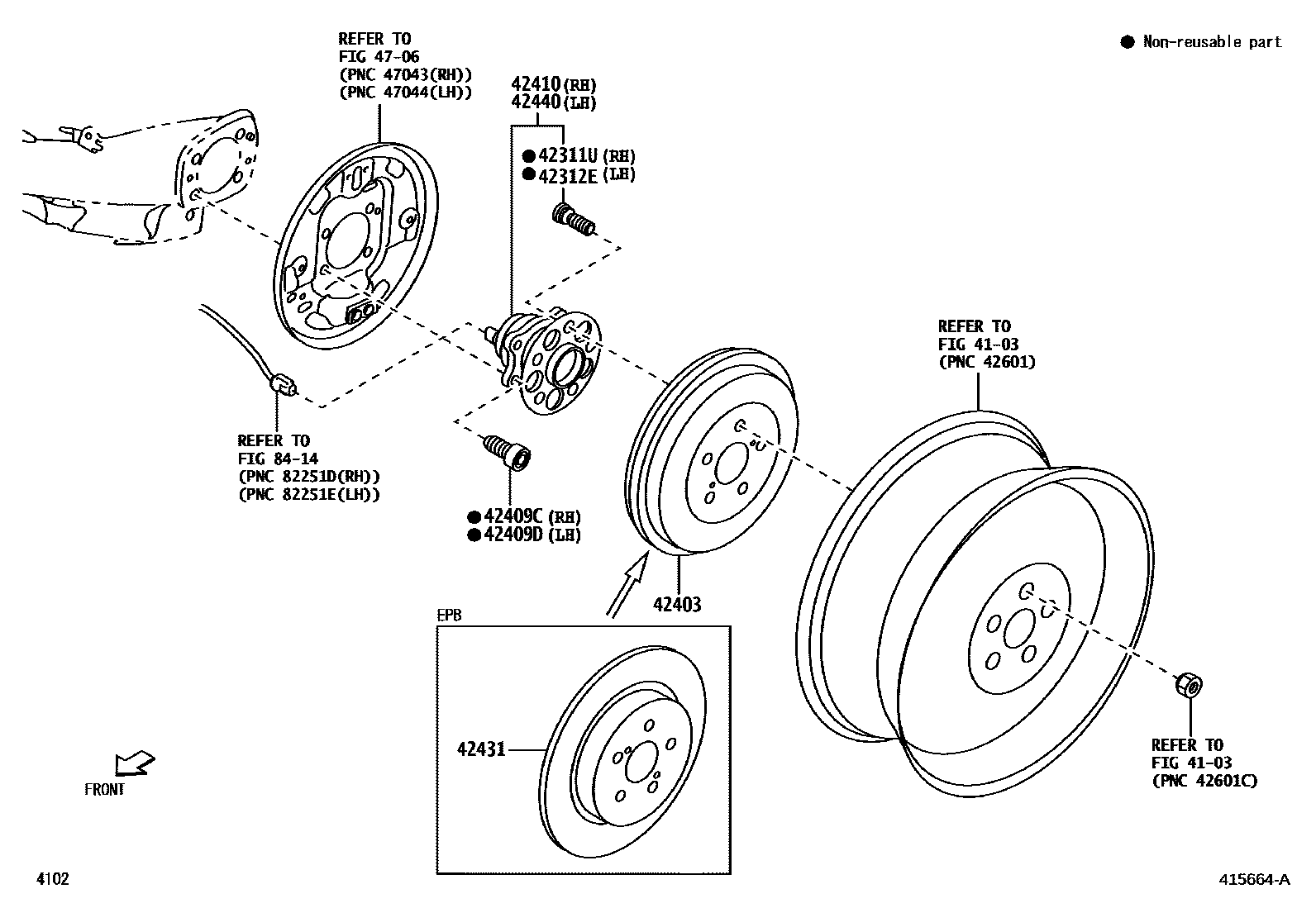

REAR AXLE SHAFT & HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12056×5iW100,101202111

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12056×5iW100,101202111

42403DRUM SUB-ASSY, REAR BRAKE

main42431-BZ190×2iW101..MXC202201

main42431-BZ200×2iW101..5F..PHL202111-202309

42409CBOLT (FOR REAR AXLE BEARING RH)

main9004A-10258×4iW100,101202111

42409DBOLT (FOR REAR AXLE BEARING LH)

main9004A-10258×4iW100,101202111

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-BZ140iW100,101..D,G,M202111

W/SENSOR

main42410-BZ150iW101..S,V202111

W/SENSOR

42431DISC, REAR

main42431-BZ210×2iW101..S,V202111

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-BZ140iW100,101..D,G,M202111

W/SENSOR

main42410-BZ150iW101..S,V202111

W/SENSOR

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8414ABS & VSC

→ Go to FIG 84-14

11 parts on this diagram · 1 diagram in section
