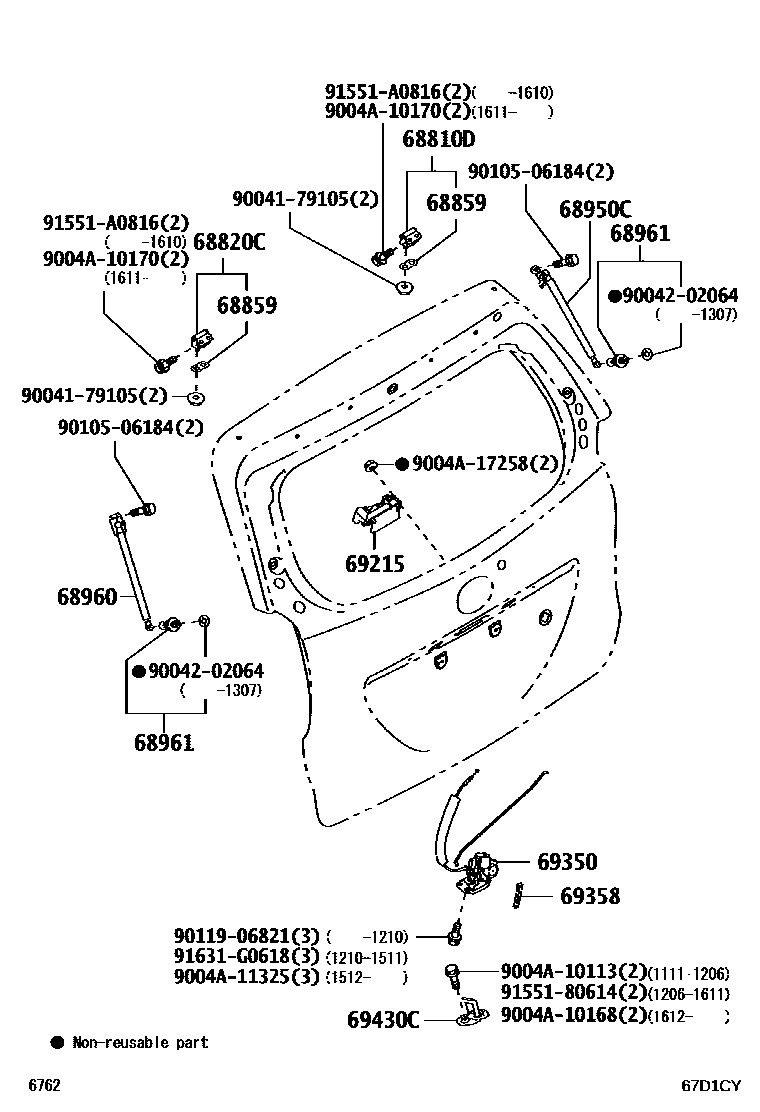

BACK DOOR LOCK & HINGE

68810DHINGE ASSY, BACK DOOR, RH

main68801-BZ140iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

68820CHINGE ASSY, BACK DOOR, LH

main68801-BZ140iF65#..(MID,SPO)..IDN201901-202110

68859PACKING, BACK DOOR HINGE

main68859-87101×2iF65#..IDN201111-201507

68950CSTAY ASSY, BACK DOOR, RH

main68950-B0010iF654..MXC;F653..LO..PHL;F654..STD..GCC201904

main68950-B0020iF65#..IDN201111-201507

W/RR WIPER

68960STAY ASSY, BACK DOOR, LH

main68960-B0010iF652..MXC;F651..LO..PHL;F652..STD..GCC201112-201508

W/O RR WIPER

main68960-B0020iF65#..IDN201111-201507

W/RR WIPER

68961BOLT, BACK DOOR STAY

main68459-87202×2iF65#..IDN201307-201507

main68459-87502×2iF65#201111-201306

69215HANDLE, BACK DOOR OUTSIDE

main69023-0K030iF65#..IDN201111-201507

main69023-BZ070iF65#201811-201904

69350LOCK ASSY, BACK DOOR

main69350-BZ120iF652;F651..RHD;F651..LHD..(MID,STD)201111-201204

main69350-BZ121iF651..LO..GEN201305-201508

W/KEYLESS

main69350-BZ130iF651..LHD..LO201112-201204

main69350-BZ131iF653..LO..PHL201904-202201

69358PROTECTOR, BACK DOOR LOCK

main69358-BZ010iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-201904

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B0020iF65#..(MID,SPO)..IDN201901-202110

9004179105

main90041-79105

9004202064

main90042-02064

9004A10113

main9004A-10113

9004A10168

main9004A-10168

9004A10170

main9004A-10170

9004A11325

main9004A-11325

9004A17258

main9004A-17258

9010506184

main90105-06184

9011906821

main90119-06821

9155180614

main91551-80614

91551A0816

main91551-A0816

91631G0618

main91631-G0618

22 parts on this diagram · 1 diagram in section
