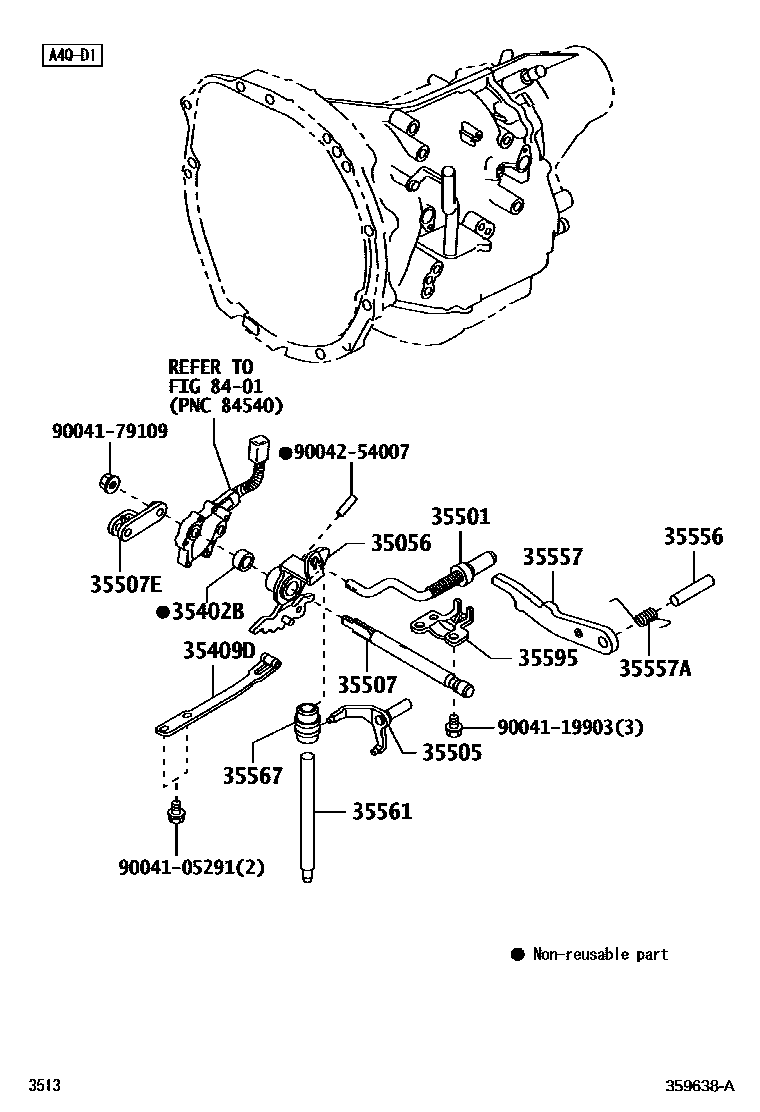

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A4Q-D1 0002 1

35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER

main35057-97501iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

main35057-B1010iF653,654..4AT201507-201904

35402BSEAL,OIL(FOR MANUAL VALVE)

main90043-11256iF65#..4AT..IDN201111-201507

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-97501iF65#..4AT..IDN201111-201507

main35409-B1020iF653,654..4AT201507-201904

35501ROD SUB-ASSY, PARKING LOCK

main35501-97501iF65#..4AT..IDN201111-201507

main35501-B1020iF653,654..4AT201507-201509

main35501-B1021iF65#..4AT201510-201604

main35501-B5010iF65#..4AT201605-201904

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-97501iF65#..4AT..IDN201111-201507

35507SHAFT SUB-ASSY, TRANSMISSION CONTROL INTERMEDIATE

main33511-B1010iF653,654..4AT201507-201904

main35511-97501iF65#..4AT..IDN201111-201507

35507ELEVER,TRANSMISSION CONTROL SHAFT

main35507-87402iF65#..4AT..IDN201111-201507

35556SHAFT, PARKING LOCK PAWL

main35556-87502iF65#..4AT..IDN201111-201507

35557PAWL, PARKING LOCK

main35557-B0010iF65#..4AT..IDN201111-201507

main35557-B1020iF653,654..4AT201507-201904

main35557-B1030iF65#..4AT..(MID,SPO)..IDN202004-202110

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90045-08388iF65#..4AT..IDN201111-201507

main90045-08419iF653,654..4AT201507-201904

35561SHAFT, MANUAL VALVE LEVER

main35568-97501iF65#..4AT..IDN201111-201507

35567ROD, TRANSMISSION CONTROL, 3RD

main35567-97501iF65#..4AT..IDN201111-201507

35595BRACKET, PARKING LOCK PAWL

main35595-97501iF65#..4AT..IDN201111-201507

main35595-B1020iF653,654..4AT201507-201904

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004105291

main90041-05291

9004119903

main90041-19903

9004179109

main90041-79109

9004254007

main90042-54007

18 parts on this diagram · 2 diagrams in section
