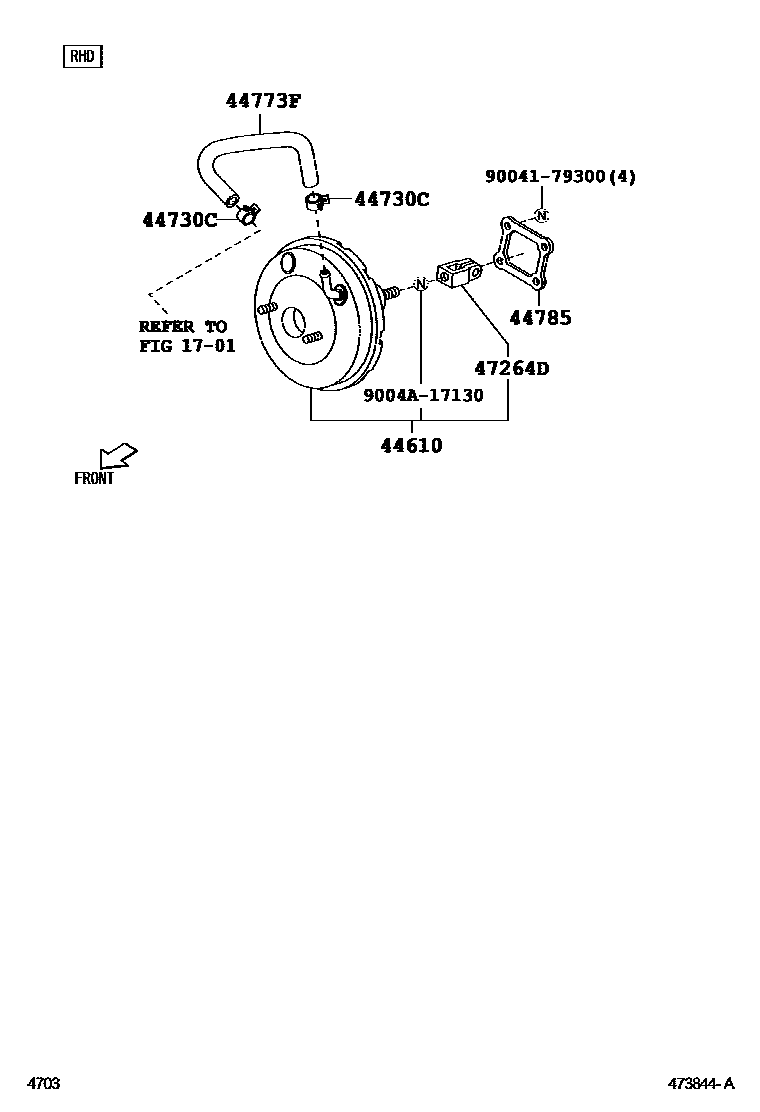

BRAKE BOOSTER & VACUUM TUBE

0001 1 0003 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-BZ010iF601..5F;F601..4AT..MA200312-200608

main44610-BZ040iF601..4AT..(BRU,IDN,TH)200404-200608

main44610-BZ110iF60#..LHD200608

44730CCLIP(FOR VACUUM HOSE)

main90044-67161×2iF601200312-200608

44773FHOSE, UNION TO CHECK VALVE

main44750-B0020iF601..4AT200609-200911

main44750-B0040iF60#..LHD200608

main44750-BZ010iF601..MA200312-200412

44785GASKET, BRAKE BOOSTER

main47275-BZ010iF601200312-200608

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ010iF601200312-200608

9004179300

main90041-79300

9004A17130

main9004A-17130

8 parts on this diagram · 2 diagrams in section
