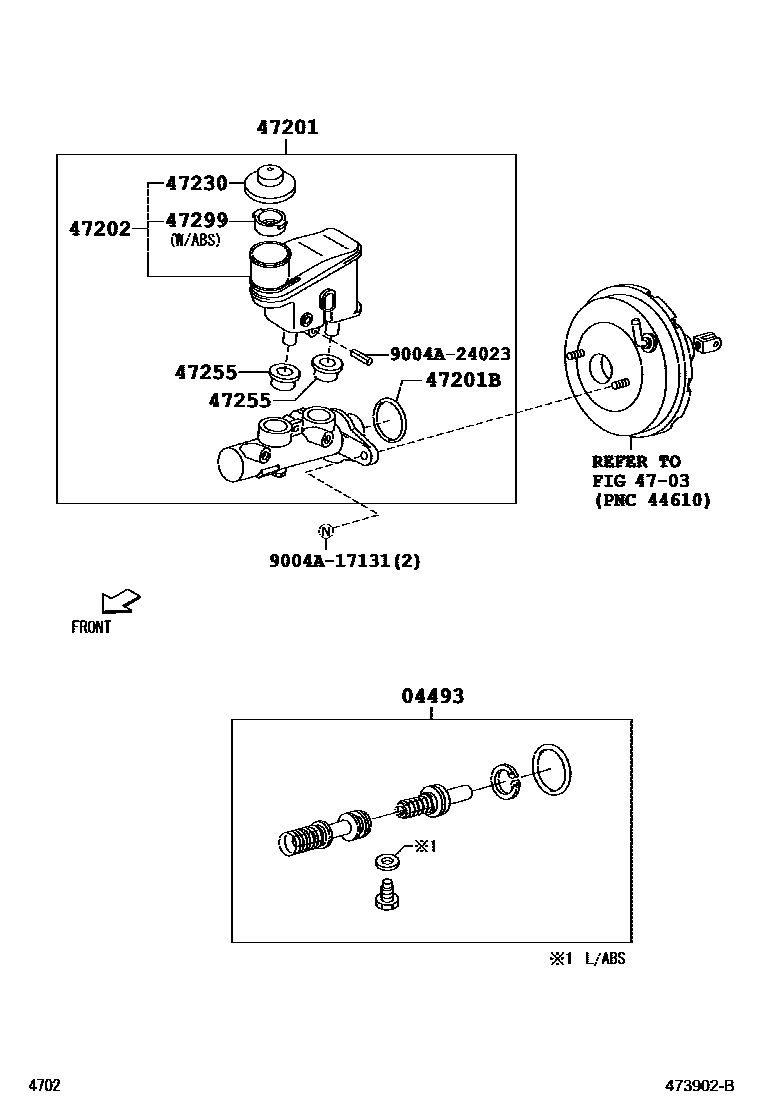

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-B1040iF601..5F;F601..4AT..MA200312-200608

main04493-B1050iF601..DLX..SA;F602..(G,S)..MA;F602..(DLX,E,G,GL,S)..(GEN,IDN,SA,TH)200608

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-BZ010iF601..5F;F601..4AT..MA200312-200608

main47201-BZ020iF601..4AT..(BRU,IDN,TH)200404-200608

main47201-BZ090iF602..4AT..PHL200608-200706

main47201-BZ100iF602..RHD..5F..(GEN,IDN,SA)200608

main47201-BZ110iF602..5F..PHL200610-200706

main47201-BZ120iF601..4AT200608-200911

main47201-BZ130iF602..5F..IDN201111

INDONESIA 1.5G

main47201-BZ140iF602..4AT..PHL200706

main47201-BZ150iF602..5F..PHL200706

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main9004A-30021iF601200312-200608

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-BZ010iF601..5F;F601..4AT..MA200312-200608

main47220-BZ020iF601..4AT..(BRU,IDN,TH)200404-200608

main47220-BZ070iF602..5F200608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-BZ010iF601..5F;F601..4AT..MA200312-200608

main47230-BZ020iF601..4AT..(BRU,IDN,TH)200404-200608

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-BZ010×2iF601200312-200608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-BZ010iF601..4AT..(BRU,IDN,TH)200404-200608

9004A17131

main9004A-17131

9004A24023

main9004A-24023

10 parts on this diagram · 2 diagrams in section
