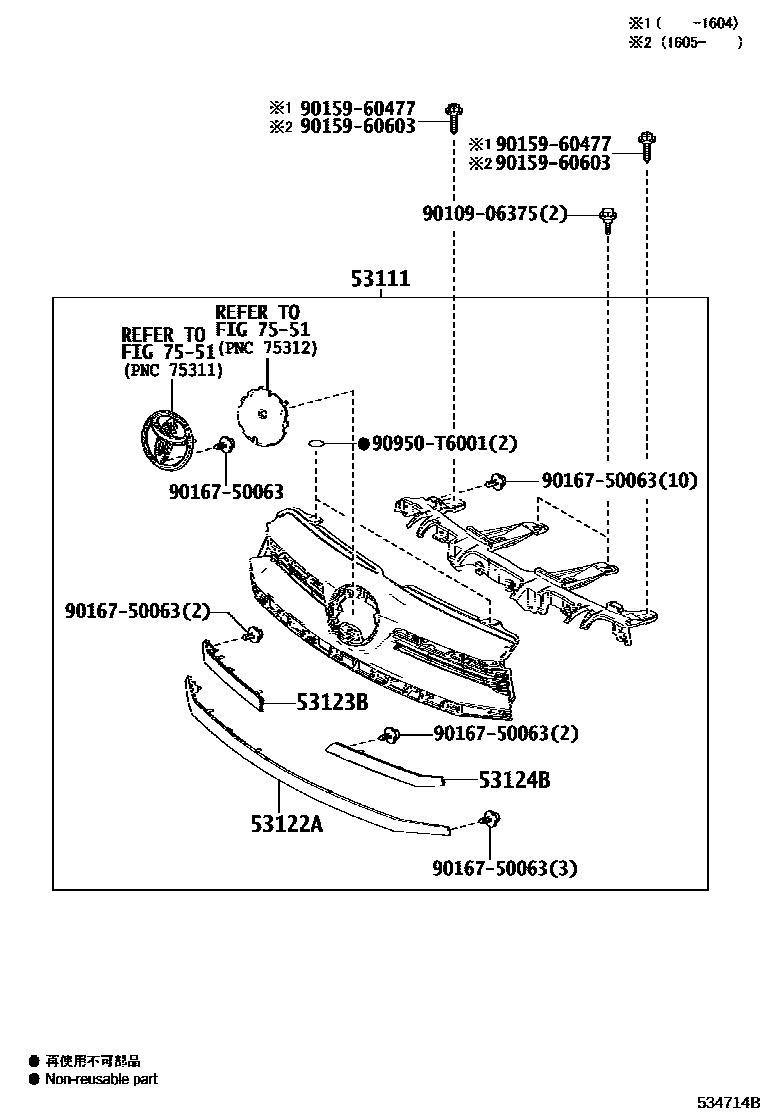

RADIATOR GRILLE
53111GRILLE, RADIATOR
NO PAINT REQ.
PLATED
NO PAINT REQ.
PLATED; PLATED,GRADE MARK-V
PLATED,MLM INDONESIA SPEC EURO4
PLATED,WITH(MLM LUXURY); PLATED,WITH(MLM PACKAGE)
PLATED,WITH(MLM PACKAGE(TMMIN VENTURER)); PLATED,WITH(MLM PACKAGE)
PLATED,WITH(MLM PACKAGE)
PLATED,WITH(MLM PACKAGE); PLATED,WITH(MLM PACKAGE)&GRADE MARK-V
PLATED,WITH(MLM PACKAGE),PLANT ASSB
PLATED,WITH(MLM PACKAGE(TMMIN VENTURER))
NO PAINT REQ.,WITH(TKM VANGUARD)
NO PAINT REQ.,WITH(TKM VANGUARD)
PLATED,WITH(TKM VANGUARD)
53122AMOULDING, RADIATOR GRILLE, LOWER
main53122-0K290iGUN14#,TGN141..6FC..(24,27,28)..GCC; GUN143..IDNP..(28G,28V)..(PHL,TH);GUN142,TGN140..(20Q,20V,24Q,24V)..IDN;GUN142,TGN140..IDNP..(20G,24G,24V)..(GEN,PHL);GUN143,TGN141..6FC..(27G,27SRV,28G,28V)..(GCC,LA)201511-202008
RADIATOR GRILLE-PAINTED & CHROME PLATED
main53122-0K370iGUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND; GUN14#,TGN141..(5F,6FC)..(24V,27V,27Z,28Z)..IND..(DCR,HTWC)201604-202010
MLM INDIA SPEC EURO5
main53122-YP060iGUN142..(6F,6FC)..(24V,24Z)..IND;GUN14#,TGN141..(5F,6FC)..(24V,27V,27Z,28Z)..IND201704-202010
MLM INDIA SPEC EURO4
WITH(MLM PACKAGE(TMMIN VENTURER)); WITH(MLM PACKAGE)
main53122-YP090iGUN142,TGN141..TH,VN; TGN140..20Q; TGN140..20V..VN;GUN142,TGN141..(24V,27V,N)..(IDN,TH,VN);GUN143,TGN140..(20,20Q,28,28V)..(IDN,PHL)202009
WITH(MLM LUXURY); WITH(MLM PACKAGE(TMMIN VENTURER)); WITH(MLM PACKAGE)
WITH(MLM PACKAGE)
WITH(MLM PACKAGE); WITH(MLM PACKAGE)&GRADE MARK-V
WITH(MLM PACKAGE(TMMIN VENTURER))
53123BMOULDING, RADIATOR GRILLE SIDE, RH
main53123-0K110iGUN14#,TGN141..6FC..(24,27,28)..GCC; GUN143..IDNP..(28G,28V)..(PHL,TH);GUN142,TGN140..(20Q,20V,24Q,24V)..IDN;GUN142,TGN140..IDNP..(20G,24G,24V)..(GEN,PHL);GUN143,TGN141..6FC..(27G,27SRV,28G,28V)..(GCC,LA)201511-202008
RADIATOR GRILLE-PAINTED & CHROME PLATED
GRADE MARK-V
WITH(MLM PACKAGE(TMMIN VENTURER))
main53123-YP020iGUN142..(6F,6FC)..(24V,24Z)..IND;GUN14#,TGN141..(5F,6FC)..(24V,27V,27Z,28Z)..IND201704-202010
MLM INDIA SPEC EURO4
WITH(MLM LUXURY); WITH(MLM PACKAGE)
WITH(MLM LUXURY); WITH(MLM PACKAGE)
WITH(MLM PACKAGE)
WITH(MLM PACKAGE); WITH(MLM PACKAGE)&GRADE MARK-V
53124BMOULDING, RADIATOR GRILLE SIDE, LH
main53124-0K020iGUN142,TGN14#..(20Q,20V,24V,27V)..(IDN,MA,VN); GUN143..(28,28V)..PHL;GUN142,TGN141..IDN,MA,TH,VN;TGN140..IDNP..(20,20G,20Q)..(IDN,PHL);TGN140..(MAP,PHLP,VNP)..6FC..(20,20V); TGN140..IDN; TGN140..IDN;TGN140..20V;GUN14#,TGN141..(24G,24V,27V,28,28V)..(IDN,PHL,VN)202009
WITH(MLM LUXURY); WITH(MLM PACKAGE(TMMIN VENTURER)); WITH(MLM PACKAGE)
main53124-0K200iGUN14#,TGN141..(24V,24Z,27V,27Z,28Z)..IND; GUN14#,TGN141..(5F,6FC)..(24V,27V,27Z,28Z)..IND..(DCR,HTWC)201604-202010
MLM INDIA SPEC EURO5
MLM PHILIPPINE SPEC
main53124-YP100supersedes 53124-0K280iGUN143..28E,N;TGN140..PHLP..N;TGN140..PHLP..6FC..20E;TGN140..(IDNP,MAP,VNP)..(20E,N)..(MA,PHL,VN)202009
WITH(MLM PACKAGE)
WITH(MLM LUXURY); WITH(MLM PACKAGE)
WITH(MLM PACKAGE)
WITH(MLM PACKAGE); WITH(MLM PACKAGE)&GRADE MARK-V
WITH(MLM PACKAGE(TMMIN VENTURER))
7551EMBLEM & NAME PLATE
9010906375
main90109-06375
9015960477
main90159-60477
9015960603
main90159-60603
9016750063
main90167-50063
90950T6001
main90950-T6001
10 parts on this diagram · 3 diagrams in section
