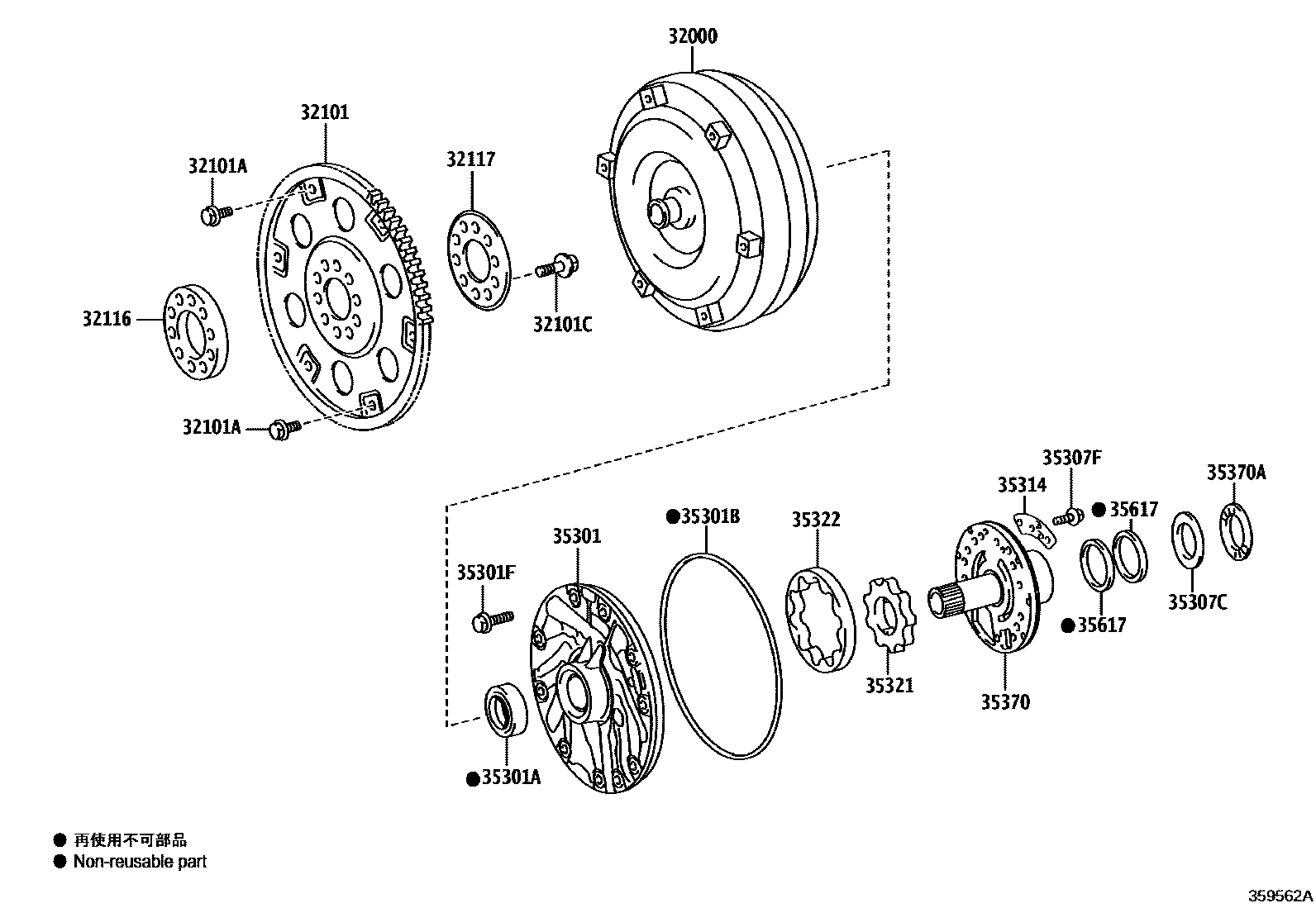

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
(L)
(L)
(L)
(J)
(J)
(J)
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*10-1.5PX11-8,(J),SILVER WHITE
*10-1.5PX11-8,BLACK
*10-1.5PX11-8,BLACK.
*10-1.5PX11-8,(L),SILVER WHITE
*9-1.25PX12.8-8.8,(L),SILVER WHITE
*9-1.25PX12.8-9,(L),BLACK
*9-1.25PX12.8-9,BLACK.
*9-1.25PX12.8-9,(J),BLACK
*9-1.25PX12.8-9,BLACK
*9-1.25PX12.8-8.8,SILVER WHITE
*9-1.25PX12.8-8.8,(J),SILVER WHITE
*9-1.25PX12.4-7.3,SILVER WHITE
*9-1.25PX12.4-8.8,BLACK
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX30-17.5
*13-1.5PX43.5-23.5,(L)
*13-1.5PX43.5-23.5
*13-1.5PX43.5-23.5,(J)
*13-1.5PX43.5-23.5
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
JAPAN SOURCED PARTS
THA SOURCED PARTS
35301BODY SUB-ASSY, FRONT OIL PUMP
main35301-0K010iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)201808-202309
(L)
(J)
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
main90105-08091iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201511-202309
*8-1.25PX35-35
35307CRACE, THRUST BEARING (FOR STATOR SHAFT)
35307FBOLT (FOR STATOR SHAFT)
(J)
(L)
35314PLATE, FRONT OIL PUMP
(L)
main35314-0K020iTGN140..GEN,TH;GUN14#,TGN141..6FC..(20G,24V,27,28,28V,G,SRV)..(GCC,GEN,LA,TH)201906-202309
(L)
(J)
35321GEAR, FRONT OIL PUMP DRIVE
main35321-0K010iTGN140..6FC..20G..IDN;GUN142,TGN141..6FC..(IDN,MA,TH,VN);GUN143,TGN140..6FC..(20,20E,20Q,20V,28E,28V)..(IDN,MA,PHL,VN)201808-202309
(L)
T=9.977-9.983
T=9.977-9.983,(J)
35322GEAR, FRONT OIL PUMP DRIVEN
T=9.977-9.983,(L)
T=9.977-9.983
T=9.977-9.983,(J)
35370SHAFT ASSY, STATOR
(L)
(J)
35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
35617RING, CLUTCH DRUM OIL SEAL
18 parts on this diagram · 2 diagrams in section
