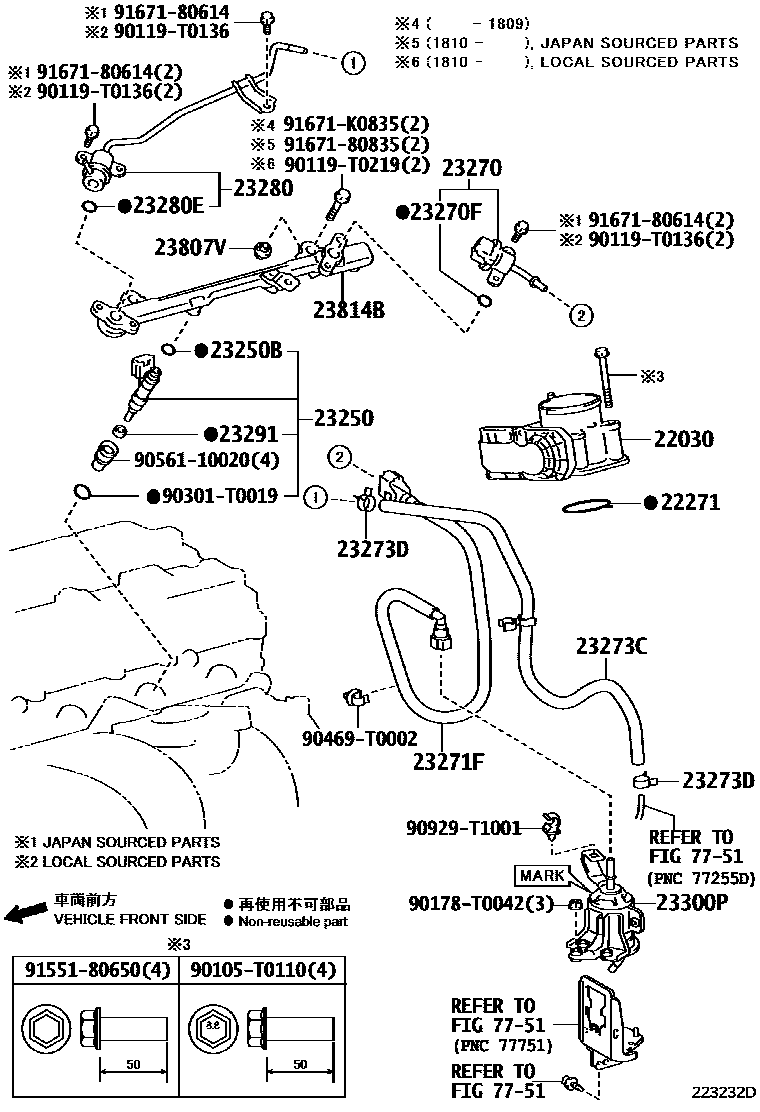

FUEL INJECTION SYSTEM

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0C030i2TRFE..TGN141..27G,27Z202009-202301

(L)

main22030-0C050i1TRFE..TGN140..PHLP..N;1TRFE..TGN140..PHLP..6FC..20E201607-202102

main22030-0T120i1TRFE..TGN140..20G..IDN;1TRFE..TGN140..(20E,N)..PHL201511-201607

(L)

main22030-37050i1TRFE..TGN140..(20Q,20V)..IDN;1TRFE..TGN140..IDNP..20G..PHL201511-201808

(J)

main22030-75040i2TRFE..TGN141..IND201511-202010

(J)

22271GASKET, THROTTLE BODY

main22271-0C021i2TRFE..TGN141..IDNP..5F..(27G,27SR)201511-201807

main22271-37010i1TRFE..TGN140..PHLP..(20,N);1TRFE..TGN140..PHLP..6FC..20E;1TRFE..TGN140..IDNP..(IDN,PHL);1TRFE..TGN140..(20E,20V)..(MA,VN)202009

23250INJECTOR ASSY, FUEL

main23209-09300×4i1TRFE..TGN140..6FC..MA201511-202012

(L)

main23209-09320×4i2TRFE..TGN141..IDNP..6FC;2TRFE..TGN141..5F..27..LA201511-202008

(L)

main23209-79215×4i2TRFE..TGN141..27G,27Z202009-202301

(J)

main23209-79225×4i1TRFE..TGN140..5F..MA201511-201905

(J)

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2TRFE..TGN141..IDNP..5F..(27G,27SR)201511-201807

main90301-07042×4i1TRFE..TGN140..PHLP..(20,N);1TRFE..TGN140..PHLP..6FC..20E;1TRFE..TGN140..IDNP..(IDN,PHL);1TRFE..TGN140..(20E,20V)..(MA,VN)202009

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-75050i1TRFE..TGN140..6FC..MA201511-202012

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i1TRFE..TGN140..PHLP..(20,N);1TRFE..TGN140..PHLP..6FC..20E;1TRFE..TGN140..IDNP..(IDN,PHL);1TRFE,2TRFE..TGN14#..(20E,20V,27V)..(MA,VN)202009

23271FHOSE, FUEL

main23271-0C070i1TRFE,2TRFE..TGN14#201511-201612

main23271-0C071i2TRFE..TGN141..27G,27Z202009-202301

23273CHOSE, FUEL, NO.2

main23273-0C170i1TRFE,2TRFE..TGN14#201511-201612

main23273-0C171i1TRFE..TGN140..6FC..MA201612-202012

23273DCLIP(FOR FUEL HOSE NO.2)

main90466-T0040×2i1TRFE..TGN140..GEN;2TRFE..TGN141..IDNP..5F..(27G,27SR)201511-201807

23280REGULATOR ASSY, FUEL PRESSURE

main23280-75100i2TRFE..TGN141..IND201511-202010

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07037i1TRFE..TGN140..GEN;2TRFE..TGN141..IDNP..5F..(27G,27SR)201511-201807

23291INSULATOR, INJECTOR VIBRATION

main23291-0C010×4i1TRFE..TGN140..GEN;2TRFE..TGN141..IDNP..5F..(27G,27SR)201511-201807

THA SOURCED PARTS

main23291-0C020×4i1TRFE,2TRFE..TGN14#..GCC,GEN,LA,TH202009-202304

IDN SOURCED PARTS

23300PFILTER, FUEL(FOR EFI)

main23300-75140i2TRFE..TGN141..5F..27..GCC201511-201904

MARK 23300-75140

main23300-75160i1TRFE,2TRFE..TGN14#..INDP,MAP,PHLP201708-201709

MARK 23300-75160

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-0C010×2i2TRFE..TGN141..IND202204-202301

(L)

main23891-75020×2i1TRFE..TGN140..6FC..MA201511-202012

23814BPIPE, FUEL DELIVERY

main23814-0C030i1TRFE..TGN140..20G..PHL;1TRFE..TGN140..5F..20E..PHL; 1TRFE..TGN140..PHLP..(20,N);1TRFE..TGN140..PHLP..6FC..20E;1TRFE..TGN140..IDNP..(IDN,PHL);1TRFE,2TRFE..TGN14#..(20E,20V,27V)..(MA,VN)202009

(L)

main23814-75110i1TRFE,2TRFE..TGN14#..GCC,GEN,LA,TH202009-202304

(J)

7751FUEL TANK & TUBE

→ Go to FIG 77-51

90105T0110

main90105-T0110

90119T0136

main90119-T0136

90119T0219

main90119-T0219

90178T0042

main90178-T0042

90301T0019

main90301-T0019

90469T0002

main90469-T0002

9056110020

main90561-10020

90929T1001

main90929-T1001

9155180650

main91551-80650

9167180614

main91671-80614

9167180835

main91671-80835

91671K0835

main91671-K0835

28 parts on this diagram · 1 diagram in section
