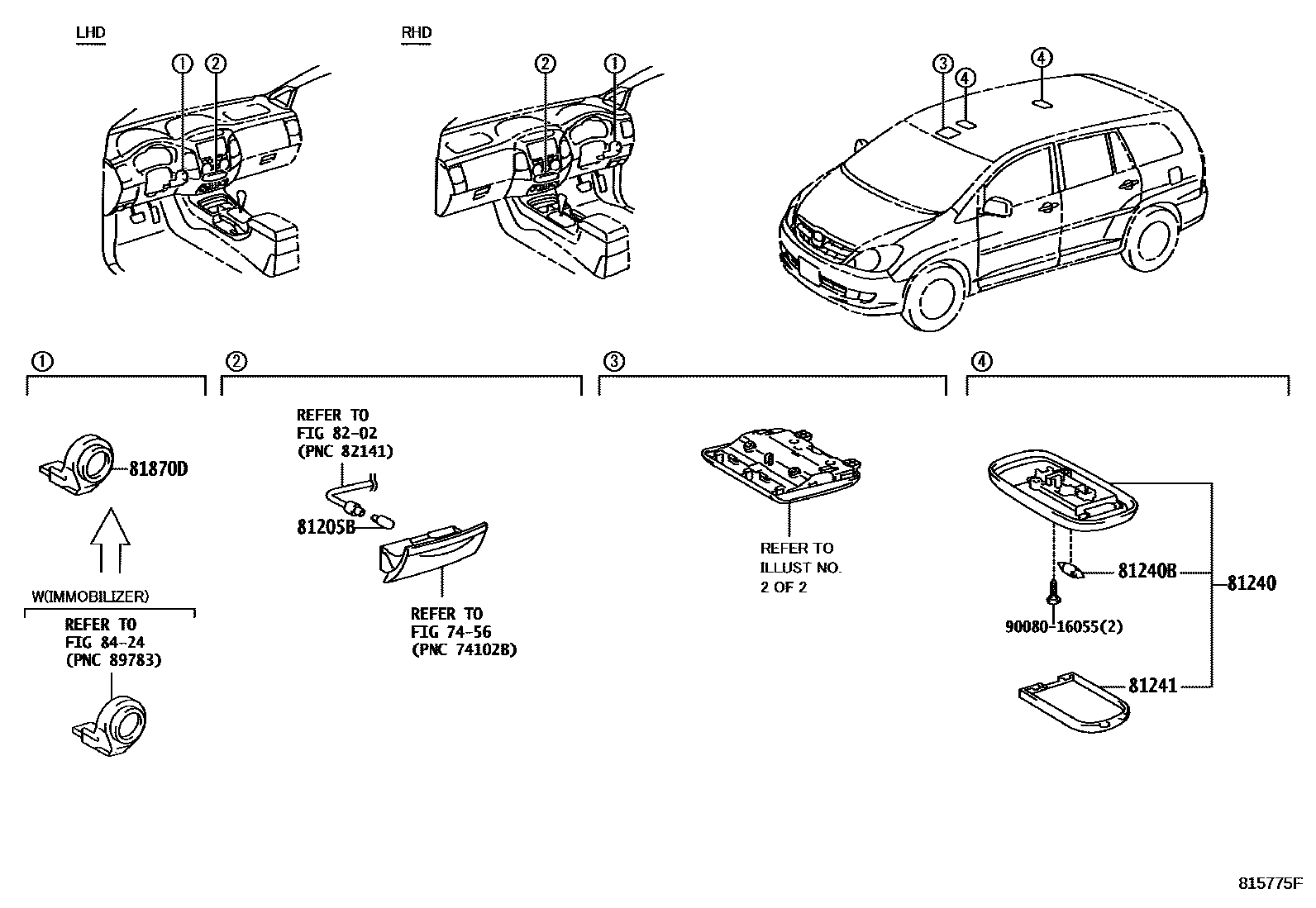

INTERIOR LAMP

0001 1 0002 1

7456ASH RECEPTACLE

→ Go to FIG 74-56

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014201107-201611

main90981-TB001201208-201603

81240LAMP ASSY, ROOM, NO.1

main81240-0K010-E1201201-201603

main81240-0K020-E0201107-201510

main81240-12080-B2201202-201611

main81240-12080-E1201107-201611

81240BBULB, ROOM LAMP, NO.1

main90981-14011201107-201611

81241LENS, ROOM LAMP, NO.1

main81241-12020201107-201611

81870DLAMP ASSY, KEY CYLINDER

main81870-0K010201107-201611

main81870-0K030201212-201510

8202WIRING & CLAMP

→ Go to FIG 82-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

9008016055

main90080-16055

9 parts on this diagram · 2 diagrams in section
