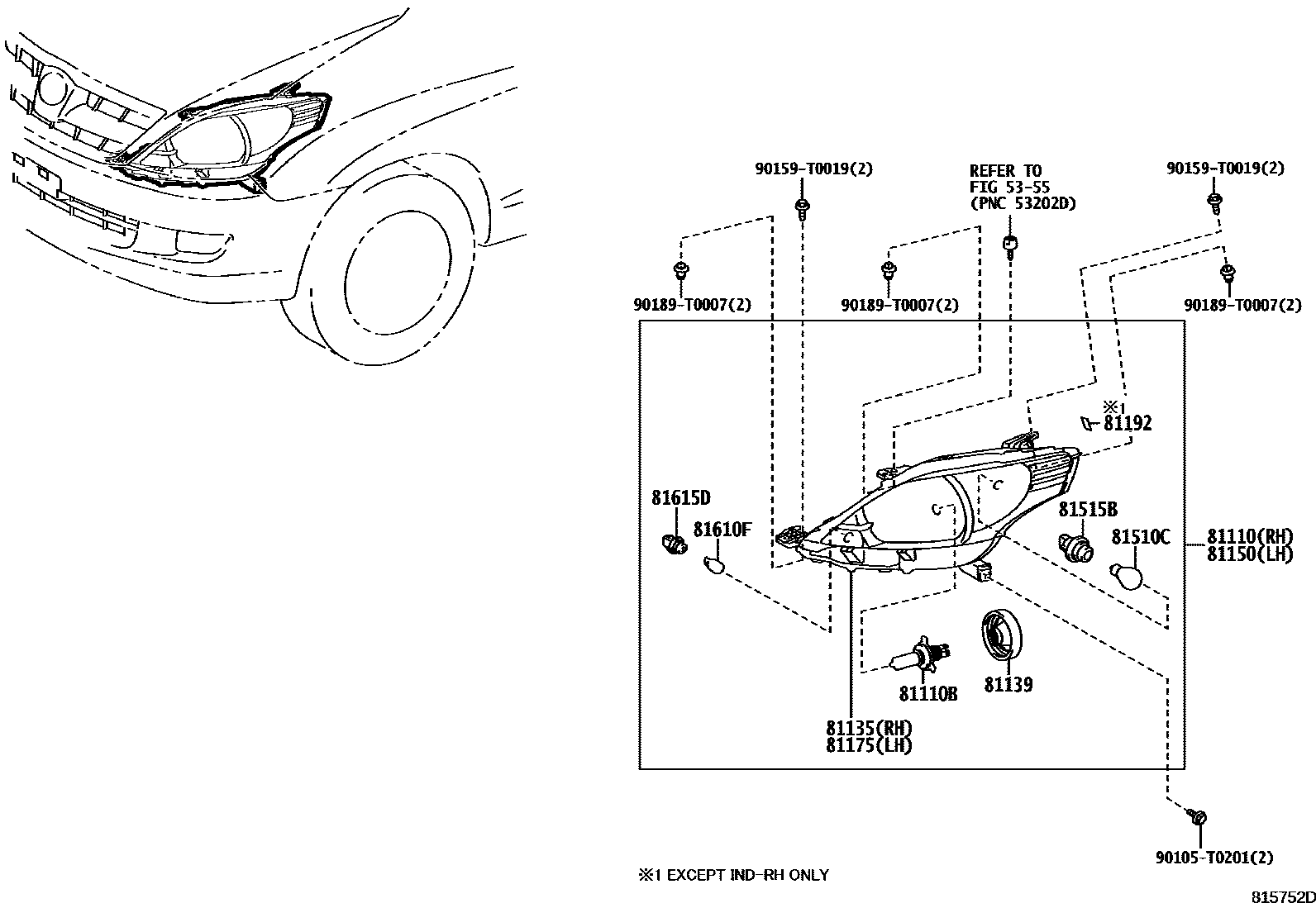

HEADLAMP

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

81110HEADLAMP ASSY, RH

main81110-0K520iKUN40,TGN40..IDN,MA201107-201601

main81110-0K530iKUN40,TGN40..LHD201202-201611

main81110-0K540iTGN41..GCC201107-201307

main81110-0K541iTGN41..GCC201307-201510

main81110-0K550iKUN40,TGN40..IND201201-201603

main81110-0K560iTGN4#..SA,TH201107-201307

main81110-0K561iTGN4#..SA,TH201307-201510

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iKUN40,TGN4#201107-201611

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0K520iKUN40,TGN40..IDN,MA201107-201601

main81130-0K530iKUN40,TGN40..LHD201202-201611

main81130-0K540iTGN41..GCC201107-201307

main81130-0K541iTGN41..GCC201307-201510

main81130-0K550iKUN40,TGN40..IND201201-201603

main81130-0K560iTGN4#..SA,TH201107-201307

main81130-0K561iTGN4#..SA,TH201307-201510

81139COVER, HEADLAMP SOCKET

main81139-0K520×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main90075-65002×2iKUN40,TGN40..IND201201-201603

81150HEADLAMP ASSY, LH

main81150-0K520iKUN40,TGN40..IDN,MA201107-201601

main81150-0K530iKUN40,TGN40..LHD201202-201611

main81150-0K540iTGN41..GCC201107-201307

main81150-0K541iTGN41..GCC201307-201510

main81150-0K550iKUN40,TGN40..IND201201-201603

main81150-0K560iTGN4#..SA,TH201107-201307

main81150-0K561iTGN4#..SA,TH201307-201510

81175UNIT ASSY, HEADLAMP, LH

main81170-0K520iKUN40,TGN40..IDN,MA201107-201601

main81170-0K530iKUN40,TGN40..LHD201202-201611

main81170-0K540iTGN41..GCC201107-201307

main81170-0K541iTGN41..GCC201307-201510

main81170-0K550iKUN40,TGN40..IND201201-201603

main81170-0K560iTGN4#..SA,TH201107-201307

main81170-0K561iTGN4#..SA,TH201307-201510

81192SEAL, HEADLAMP

main81192-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201204

main81192-0K011iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201205-201611

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90080-81116×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

12V 21W,YELLOW

main90981-WF005×2iKUN40,TGN40..IND201201-201603

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81090×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main90075-60069×2iKUN40,TGN40..IND201201-201603

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iKUN40,TGN4#201107-201611

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81138-52570×2iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main90075-60077×2iKUN40,TGN40..IND201201-201603

90105T0201

main90105-T0201

90159T0019

main90159-T0019

90189T0007

main90189-T0007

15 parts on this diagram · 1 diagram in section
