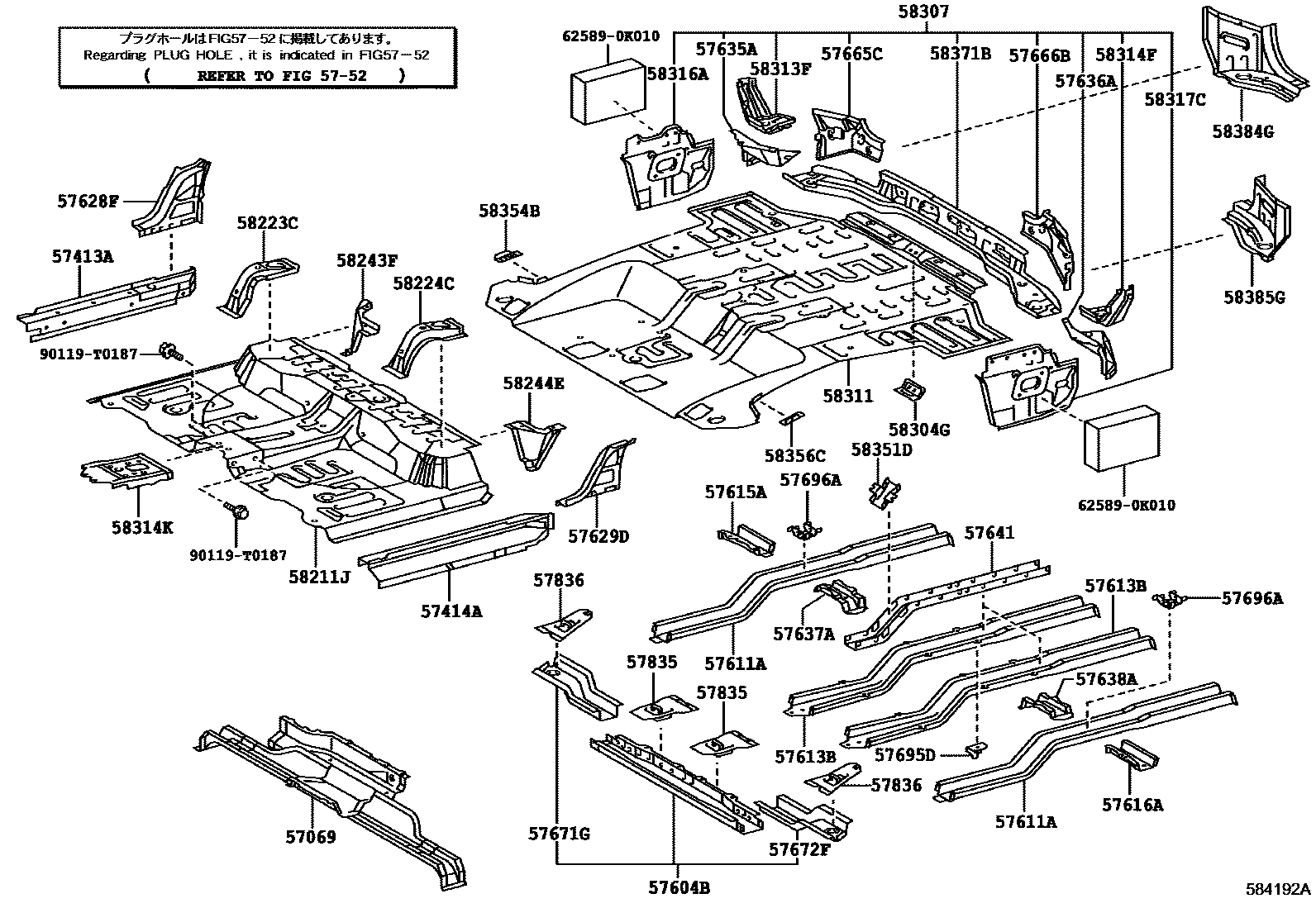

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-0K010iTGN4#..GCC,SA,TH201107-201611

main57069-0K020iKUN40,TGN40..IDN,MA,PHL,VN201107-201505

main57069-0K030iKUN40,TGN40..IND201201-201503

main57069-0K031iKUN40..IND201504-201603

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-0K040iTGN4#..GCC,SA,TH201107-201510

main57413-0K050iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-0K040iTGN4#..GCC,SA,TH201107-201510

main57414-0K050iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

5752HOLE PLUG

→ Go to FIG 57-52

57604BMEMBER SUB-ASSY, REAR FLOOR SIDE, NO.3

main57604-0K906iKUN40..IND201504-201603

main57604-0K908iKUN40,TGN40..IND201201-201503

main57604-0K909iTGN4#..GCC,SA,TH201107-201611

main57604-0K910iKUN40,TGN40..IDN,MA,PHL,VN201107-201504

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-0K010iTGN4#..GCC,SA,TH201107-201611

main57611-0K020iKUN40,TGN40..IND201201-201504

RH

main57611-0K020iKUN40,TGN40..IDN,MA,PHL,VN201107-201505

main57612-0K010iKUN40,TGN40..IND201201-201504

LH

57613BMEMBER, REAR FLOOR SIDE CENTER, RH

main57613-0K010iKUN40,TGN40..IDN,MA,PHL,VN201107-201604

main57613-0K011iTGN40201605-201611

main57613-0K030iKUN40,TGN40..IND201201-201312

RH

main57613-0K030iKUN40,TGN40..IDN,MA,PHL,VN201107-201505

main57613-0K080iKUN40,TGN40..IND201401-201504

RH

main57614-0K010iKUN40,TGN40..IND201201-201504

LH

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main57615-0K020iKUN40,TGN40..IND201201-201504

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main57616-0K020iKUN40,TGN40..IND201201-201504

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main57628-0K030iKUN40,TGN40..IND201201-201603

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0K020iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main57629-0K030iKUN40,TGN40..IND201201-201603

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-0K010iTGN4#..GCC,SA,TH201107-201611

main57635-0K020iKUN40,TGN40..IND201201-201603

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57636-0K010iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main57636-0K020iKUN40,TGN40..IND201201-201603

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-0K010iKUN40,TGN40..IDN,MA,PHL,VN201107-201506

main57637-0K020iKUN40,TGN40..IND201201-201504

main57637-0K030iKUN40,TGN40..IDN,MA,PHL,VN201507-201611

57638AREINFORCEMENT, REAR FLOOR SIDE, LH

main57637-0K010iTGN4#..GCC,SA,TH201107-201506

main57637-0K020iKUN40,TGN40..IND201201-201401

main57637-0K030iKUN40,TGN40..IDN,MA,PHL,VN201507-201611

main57638-0K010iKUN40,TGN40..IND201401-201504

57641REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER RH

main57641-0K020iKUN40..IND201107-201505

main57641-0K040iTGN4#..GCC,SA,TH201107-201611

57665CPANEL, LOWER BACK SIDE, RH

main57665-0K010iTGN4#..GCC,SA,TH201107-201510

main57665-0K020iKUN40,TGN40..IND201107-201611

57666BPANEL, LOWER BACK SIDE, LH

main57666-0K010iTGN4#..GCC,SA,TH201107-201510

main57666-0K020iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

57671GMEMBER, REAR FLOOR CROSS, NO.1 RH

main57671-0K010iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

main57671-0K020iKUN40..IDN,PHL;TGN40..IDN,IND,MA,PHL,VN201107-201505

57672FMEMBER, REAR FLOOR CROSS, NO.1 LH

main57672-0K010iTGN4#..GCC,SA,TH201107-201611

main57672-0K020iKUN40..GL..IND201107-201505

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main57695-0K020iKUN40,TGN40..IND201201-201504

57696AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-0K010iKUN40..IND201107-201611

main57696-0K020iKUN40,TGN40..IND201201-201504

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-0K020iTGN40..GL..(IDN,MA,PHL);KUN40,TGN41..GCC,IDN,PHL,SA;TGN40..(DLX,LO,STD)..(IDN,MA,PHL,TH,VN)201107-201611

main57835-0K030iKUN40,TGN40..(DLX,STD)..IND201201-201504

REAR SEAT-6/4 TUMBLE SLIDE

main57835-0K040iTGN40..GL..(TH,VN)201107-201611

main57835-0K050iKUN40,TGN40..GL..IND201201-201603

REAR SEAT-CAPTAIN SLIDE, WITHOUT(ARMREST)

main57835-0K050iKUN40..STD..IND201201-201603

REAR SEAT-CAPTAIN SLIDE

57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2

main57836-0K010iTGN40..GL..(IDN,MA,PHL);KUN40,TGN41..GCC,IDN,PHL,SA;TGN40..(DLX,LO,STD)..(IDN,MA,PHL,TH,VN)201107-201611

main57836-0K020iKUN40..GL..IND201201-201504

REAR SEAT-6/4 TUMBLE SLIDE

main57836-0K030iTGN40..GL..(TH,VN)201107-201611

main57836-0K040iKUN40..DLX..IND201201-201603

REAR SEAT-CAPTAIN SLIDE, WITHOUT(ARMREST)

main57836-0K040iKUN40,TGN40..GL..IND201201-201603

REAR SEAT-CAPTAIN SLIDE

58211JPAN, CENTER FLOOR

main58211-0K020iTGN4#..GCC,SA,TH201107-201510

main58211-0K030iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

58223CREINFORCEMENT, SEAT SET, NO.1

main58223-0K020iKUN40,TGN4#..GCC,IND,SA,TH201107-201603

main58223-0K030iTGN40..VN201202-201611

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-0K020iKUN40,TGN40..IDN,MA,PHL201107-201603

main58224-0K030iTGN40..VN201202-201611

58243FPANEL, FLOOR SIDE, REAR RH

main58243-0K030iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

main58243-0K050iTGN4#..GCC,SA,TH201107-201510

58244EPANEL, FRONT FLOOR SIDE, REAR LH

main58244-0K020iTGN4#..GCC,SA,TH201107-201510

main58244-0K030iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

58304GREINFORCE SUB-ASSY, BODY LOWER BACK PANEL

main58304-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201405

main58304-0K020iKUN40,TGN40..IND201201-201504

main58304-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201406-201611

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0K040iKUN40,TGN40..IND201201-201504

main58307-0K042iKUN40..IND201504-201603

main58307-0K902iTGN4#..GCC,SA,TH201107-201504

main58307-0K903iKUN40,TGN40..IDN,MA,PHL,VN201107-201504

main58307-0K905iTGN4#..GCC,SA,TH201504-201510

main58307-0K906iKUN40,TGN40..IDN,MA,PHL,VN201504-201611

58311PAN, REAR FLOOR

main58311-0K140iTGN4#..GCC,SA,TH201107-201406

main58311-0K142iTGN4#..GCC,SA,TH201406-201410

main58311-0K143iKUN40..IND201411-201604

main58311-0K150iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201407

main58311-0K152iKUN40,TGN40..IDN,MA,PHL,VN201407-201504

main58311-0K153iKUN40,TGN40..IDN,MA,PHL,VN201411-201505

main58311-KK190iTGN40201605-201611

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-0K020iTGN4#..GCC,SA,TH201107-201510

main58305-0K030iKUN40,TGN40..IND201107-201611

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58306-0K020iTGN4#..GCC,SA,TH201107-201510

main58306-0K030iKUN40,TGN40..IDN,MA,PHL,VN201107-201611

58314KPANEL, REAR FLOOR, CENTER

main58314-0K020iKUN40,TGN4#201107-201611

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-0K020iTGN4#..GCC,SA,TH201107-201604

main58316-0K021iTGN40201605-201611

main58316-0K030iKUN40..IND201107-201504

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-0K010iTGN4#..GCC,SA,TH201107-201604

main58317-0K011iTGN40201605-201611

main58317-0K020iKUN40..IDN,PHL;TGN40..IDN,IND,MA,PHL,VN201107-201504

58351DREINFORCEMENT, REAR FLOOR PANEL

main58351-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main58351-0K020iKUN40,TGN40..IND201201-201504

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K030iKUN40,TGN4#201107-201611

58356CREINFORCEMENT, REAR FLOOR PANEL, NO.6

main58356-0K010iKUN40,TGN4#201107-201611

58371BPANEL, BODY LOWER BACK, OUTER

main58371-0K010iTGN4#..GCC,SA,TH201107-201503

main58371-0K020iKUN40..IND201107-201504

main58371-0K030iKUN40,TGN4#201504-201611

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0K020iKUN40,TGN4#201107-201611

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0K020iKUN40,TGN4#201107-201611

625890K010GARNISH, BACK PANEL

main62589-0K010

90119T0187

main90119-T0187

45 parts on this diagram · 2 diagrams in section
