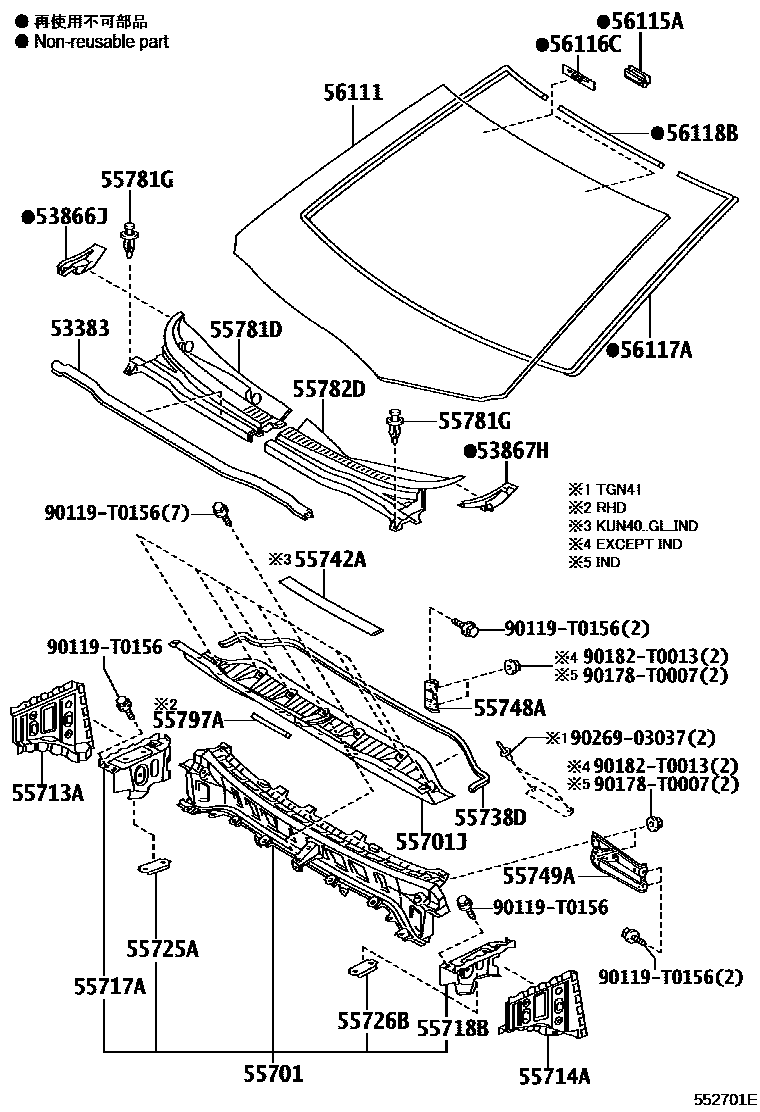

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-0K030iKUN40,TGN4#..GCC,MA,PHL,VN201107-201307

main53383-0K050iKUN40,TGN4#..GCC,MA,PHL,VN201308-201611

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53866-0K020iKUN40,TGN40..IND201201-201603

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53867-0K020iKUN40,TGN40..IND201201-201603

55701PANEL SUB-ASSY, COWL

main55700-0K040iTGN40..TH201107-201510

main55700-0K050iTGN41..GCC201107-201510

main55700-0K060iKUN40,TGN40..IDN,MA201107-201601

main55700-0K070iTGN40..IND;KUN40..(DLX,STD)..IND201201-201603

main55700-0K080iKUN40,TGN40..LHD201202-201611

main55700-0K130iKUN40..GL..IND201201-201603

main55700-0K140iTGN41..SA201107-201510

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0K010iKUN40,TGN4#..IDN,MA,SA,TH201107-201601

main55701-0K020iKUN40,TGN4#..LHD201107-201611

main55701-0K030supersedes 55701-0K040iKUN40..GL..IND; TGN40..IND;KUN40..(DLX,STD)..IND201201-201603

INDIA SPEC(EURO 3 REGULATION)

55713APANEL, COWL TOP SIDE, RH

main55713-0K010iTGN4#..GCC,SA,TH201107-201510

main55713-0K020iKUN40,TGN40..IDN,IND,MA,PHL201107-201603

main55713-0K030iTGN40..VN201202-201611

55714APANEL, COWL TOP SIDE, LH

main55714-0K010iTGN4#..GCC,SA,TH201107-201510

main55714-0K020iKUN40,TGN40..IDN,IND,MA,PHL201107-201603

main55714-0K030iTGN40..VN201202-201611

55717APANEL, COWL TOP SIDE, INNER RH

main55717-0K020iTGN4#..GCC,SA,TH201107-201510

main55717-0K030iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-0K020iTGN4#..GCC,SA,TH201107-201510

main55718-0K030iKUN40,TGN40..IDN,IND,MA,PHL,VN201107-201611

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main55725-0K020iKUN40,TGN40..IND201201-201603

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main55725-0K020iKUN40,TGN40..IND201201-201603

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-0K010iKUN40,TGN4#201107-201611

55742ASHEET, COWL TOP INSULATOR

main55742-0K040iKUN40..GL..IND201201-201603

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-0K030iKUN40,TGN40..IND201107-201305

main55748-0K040iTGN40..VN201202-201611

main55748-0K070iKUN40,TGN40..IND201305-201603

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH201107-201603

main55749-0K020iTGN40..VN201202-201611

main55749-0K050iKUN40,TGN40..IND201305-201603

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0K100iKUN40,TGN4#..IDN,MA,SA,TH201107-201310

main55708-0K101iKUN40,TGN4#..IDN,MA,SA,TH201311-201601

main55708-0K110iKUN40,TGN4#..LHD201107-201310

main55708-0K111iKUN40,TGN4#..LHD201311-201611

main55708-0K120iKUN40,TGN40..IND201201-201310

main55708-0K121iKUN40,TGN40..IND201311-201603

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iKUN40,TGN40..IND201107-201212

BLACK

main90467-T0022×2iKUN40,TGN40..IND201301-201603

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0K100iTGN40..MA201110-201310

main55709-0K101iTGN40..MA201311-201601

main55709-0K110iKUN40,TGN4#..LHD201107-201310

main55709-0K111iKUN40,TGN4#..LHD201311-201611

main55709-0K120iKUN40,TGN40..IND201201-201310

main55709-0K121iKUN40,TGN40..IND201311-201603

main55709-0K130iKUN40,TGN4#..IDN,SA,TH201107-201310

main55709-0K131iKUN40,TGN4#..IDN,SA,TH201311-201510

55797ASEAL, COWL WATER EXTRACT

main55797-0K090iKUN40,TGN4#..RHD201107-201611

56111GLASS, WINDSHIELD

main56101-0K090iKUN40,TGN40..IDN,TH201107-201510

*LAM,T=4.76,GREEN

main56101-0K100iKUN40..STD..IND201201-201603

*LAM,T=4.76,CLEAR

main56101-0K111iKUN40,TGN40..(DLX,GL)..IND201201-201603

*LAM,T=4.76,GREEN

main56101-0K120iKUN40,TGN40..LHD201202-201611

*LAM,T=4.76,GREEN

main56101-0K140iTGN41..GCC201107-201510

*LAM,T=4.76,GREEN

main56101-0K150iTGN40..MA201110-201601

*LAM,T=4.76,GREEN

main56101-0K230iTGN41..SA201107-201510

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020×2iKUN40,TGN4#201107-201611

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020×2iKUN40,TGN4#201107-201611

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0K040iKUN40,TGN4#201107-201611

L=3429

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-0K040iKUN40,TGN4#201107-201611

L=635

90119T0156

main90119-T0156

90178T0007

main90178-T0007

90182T0013

main90182-T0013

9026903037

main90269-03037

28 parts on this diagram · 1 diagram in section
