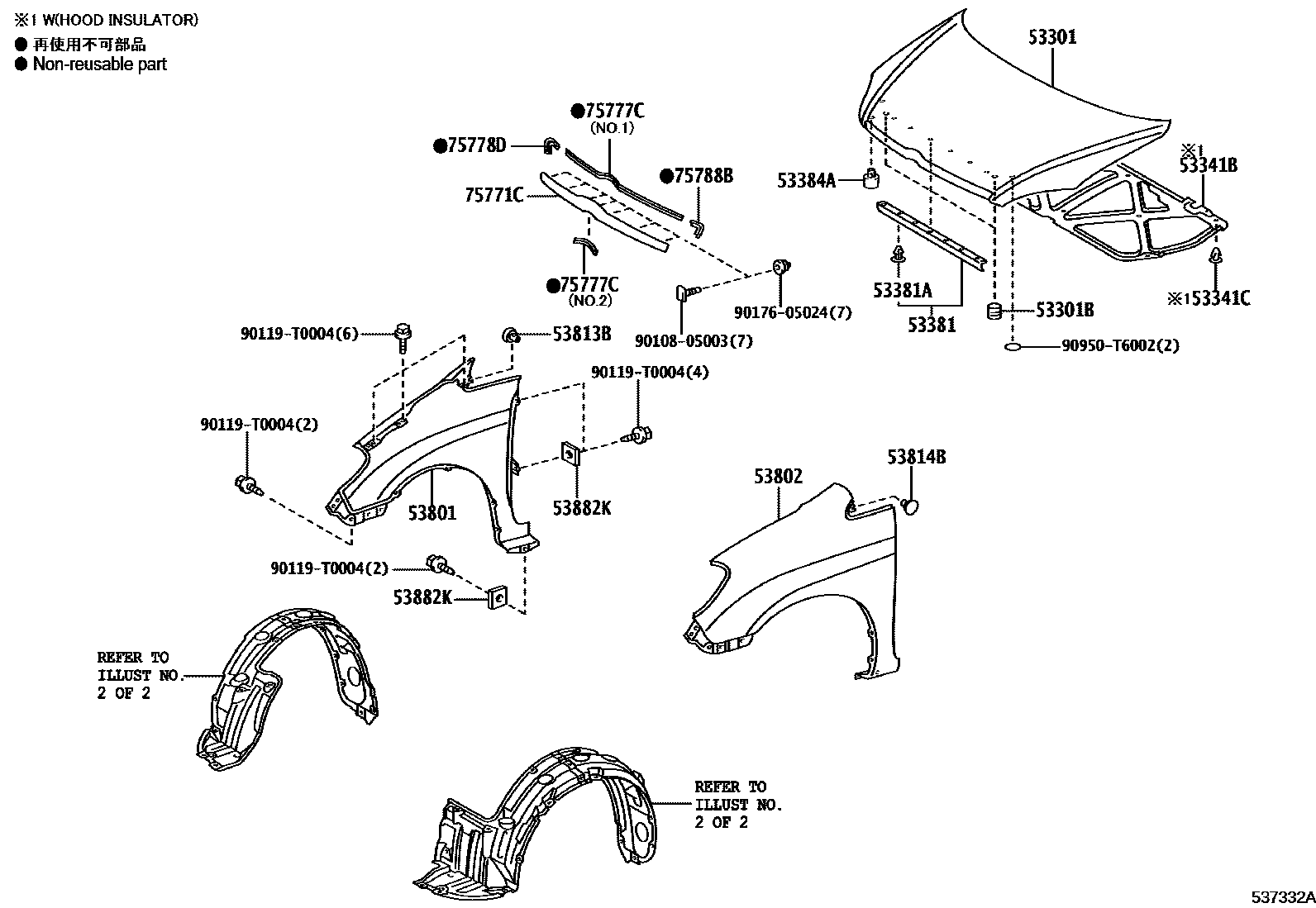

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0K120iKUN40,TGN4#..GCC,PHL,SA,TH,VN201107-201611

main53301-0K130iKUN40,TGN40..IDN,MA201107-201601

main53301-0K140iKUN40,TGN40..IND201201-201603

53301BCUSHION, HOOD BUMPER

main90541-15025×2iKUN40,TGN4#201107-201611

53341BINSULATOR, HOOD

main53341-0K220iKUN40,TGN41..IDN,PHL,SA201107-201603

main53341-0K230iKUN40,TGN40..(DLX,GL)..IND201201-201603

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014×8iTGN4#..IND,SA;KUN40..DLX,GL,LO;KUN40..STD..(IDN,PHL)201107-201603

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K040iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main53381-0K050iKUN40,TGN40..IND201201-201603

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main53326-0K010×6iKUN40,TGN4#..GCC,IDN,MA,PHL,SA,TH,VN201107-201611

main90467-08011×6iKUN40,TGN40..IND201201-201603

53384ABUMPER, FENDER TO HOOD

main53384-71010×2iKUN40,TGN4#201107-201611

53801FENDER SUB-ASSY, FRONT RH

main53811-0K120iTGN4#..(DLX,STD)..(GCC,MA,TH)201107-201601

main53811-0K140iTGN40..STD..VN;KUN40,TGN40..IDN,PHL;TGN4#..GL..(GCC,MA,SA,TH,VN)201107-201611

main53811-0K160iKUN40,TGN40..(DLX,STD)..IND201201-201603

main53811-0K170iKUN40,TGN40..GL..IND201201-201603

53802FENDER SUB-ASSY, FRONT LH

main53812-0K120iTGN40..DLX..VN201107-201503

main53812-0K140iTGN40..STD..VN;KUN40,TGN40..IDN,PHL;TGN4#..GL..(GCC,MA,SA,TH,VN)201107-201611

main53812-0K160iKUN40,TGN40..(DLX,STD)..IND201201-201603

main53812-0K170iKUN40,TGN40..GL..IND201201-201603

53813BEXTENSION, FRONT FENDER, RH

main53813-0K010iKUN40,TGN4#201107-201611

53814BEXTENSION, FRONT FENDER, LH

main53813-0K010iKUN40,TGN4#201107-201611

53882KSEAL, FRONT FENDER

main53882-0K010×4iKUN40,TGN4#201107-201402

main53882-0K020×4iKUN40,TGN4#201403-201611

75771CMOULDING, HOOD, FRONT

main75771-0K230iKUN40,TGN40..GL..(MA,PHL);KUN40,TGN4#..(DLX,GL)..(GCC,IDN,SA,TH,VN)201107-201611

main75771-0K240iKUN40,TGN40..STD..(IDN,TH);KUN40,TGN40..DLX..(MA,PHL)201107-201603

main75771-0K250iKUN40,TGN40..LO;KUN40,TGN40..LHD..STD201107-201611

main75771-0K260iKUN40,TGN40..GL..IND201201-201603

main75771-0K270supersedes 75771-0K280iKUN40,TGN40..DLX..IND201201-201603

75777CPAD, HOOD FRONT MOULDING

main75777-0K050iKUN40,TGN4#201107-201611

NO.2

main75777-0K060iKUN40,TGN4#201107-201611

NO.1

75778DPAD, HOOD FRONT MOULDING, RH NO.1

main75778-0K040iKUN40,TGN4#201107-201611

75788BPAD, HOOD FRONT MOULDING, LH NO.1

main75788-0K040iKUN40,TGN4#201107-201611

9010805003

main90108-05003

90119T0004

main90119-T0004

9017605024

main90176-05024

90950T6002

main90950-T6002

20 parts on this diagram · 2 diagrams in section
