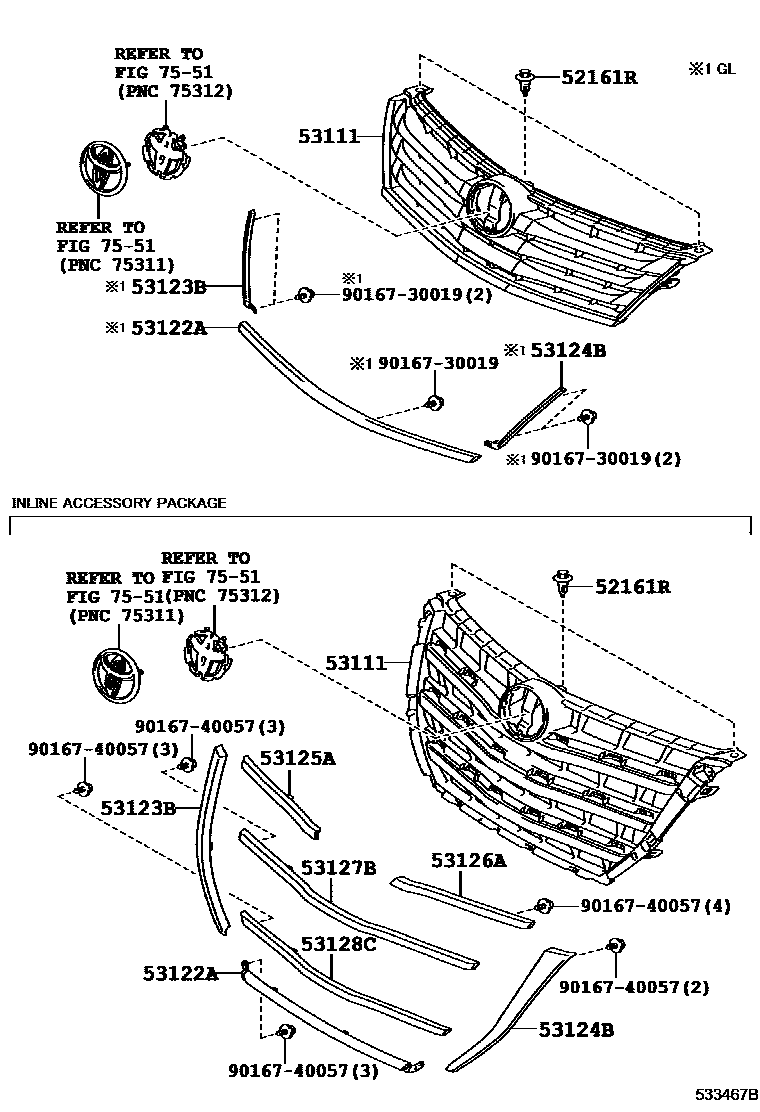

RADIATOR GRILLE
52161RPIECE, FRONT BUMPER
53111GRILLE, RADIATOR
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE); NO PAINT REQ.,FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
53122AMOULDING, RADIATOR GRILLE, LOWER
FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)&SEAT COVER MATERIAL-LEATHER
53123BMOULDING, RADIATOR GRILLE SIDE, RH
FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)&SEAT COVER MATERIAL-LEATHER
53124BMOULDING, RADIATOR GRILLE SIDE, LH
FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)&SEAT COVER MATERIAL-LEATHER
53125AMOULDING, RADIATOR GRILLE, CENTER RH
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE); FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)
53126AMOULDING, RADIATOR GRILLE, CENTER LH
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE); FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)
53127BMOULDING, RADIATOR GRILLE, NO.7
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE); FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)
53128CMOULDING, RADIATOR GRILLE, NO.8
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE); FRONT FOG LAMP-WITHOUT(INLINE ACCESSORY PACKAGE)
FRONT FOG LAMP-WITH(INLINE ACCESSORY PACKAGE)
7551EMBLEM & NAME PLATE
9016730019
main90167-30019
9016740057
main90167-40057
12 parts on this diagram · 1 diagram in section
