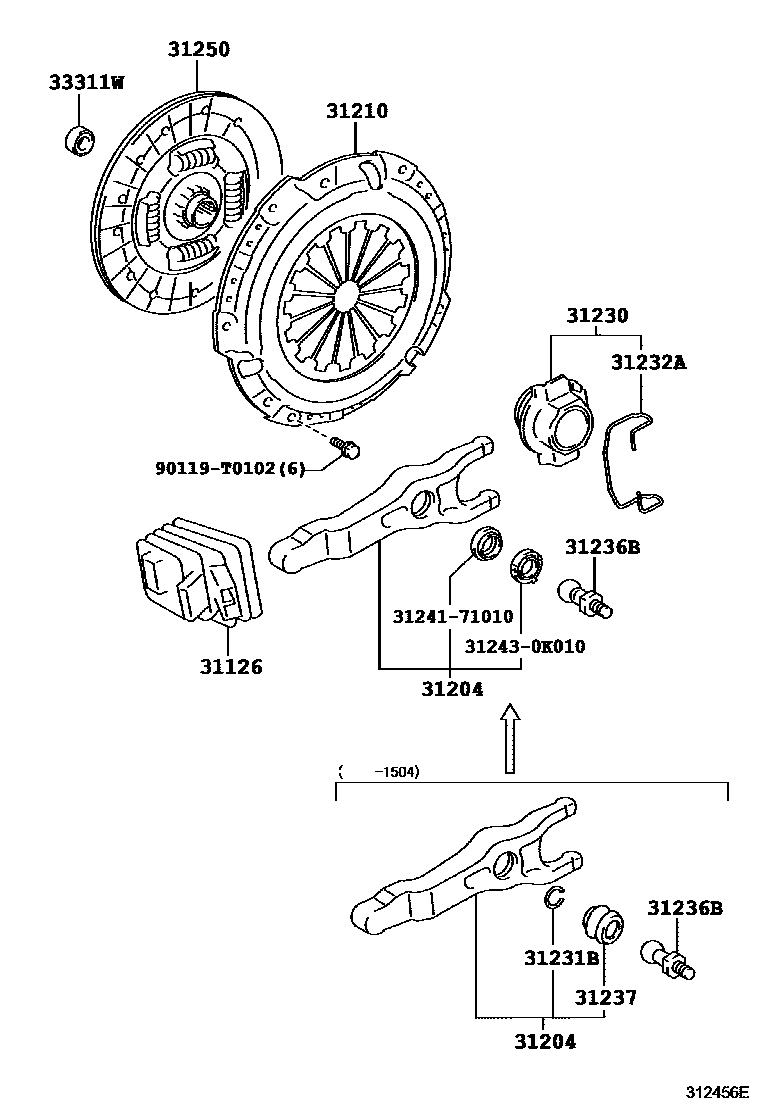

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
TYPE C:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE A:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE A:REFER 33-01
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
TYPE D:REFER 33-01
TYPE D:REFER 33-01,TYPE C:REFER 33-01
TYPE A:REFER 33-01
31231BRING, SNAP(FOR CLUTCH RELEASE HUB)
31232ACLIP, RELEASE BEARING HUB
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE D:REFER 33-01,TYPE C:REFER 33-01
TYPE D:REFER 33-01
31236BSUPPORT, RELEASE FORK
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE A:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01
TYPE D:REFER 33-01,TYPE C:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
TYPE D:REFER 33-01
TYPE D:REFER 33-01
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
(L)
(J)
(L)
(L)
3124171010SEAL, CLUTCH RELEASE FORK DUST
main31241-71010
312430K010COLLAR, CLUTCH RELEASE FORK
main31243-0K010
90119T0102
main90119-T0102
13 parts on this diagram · 2 diagrams in section
