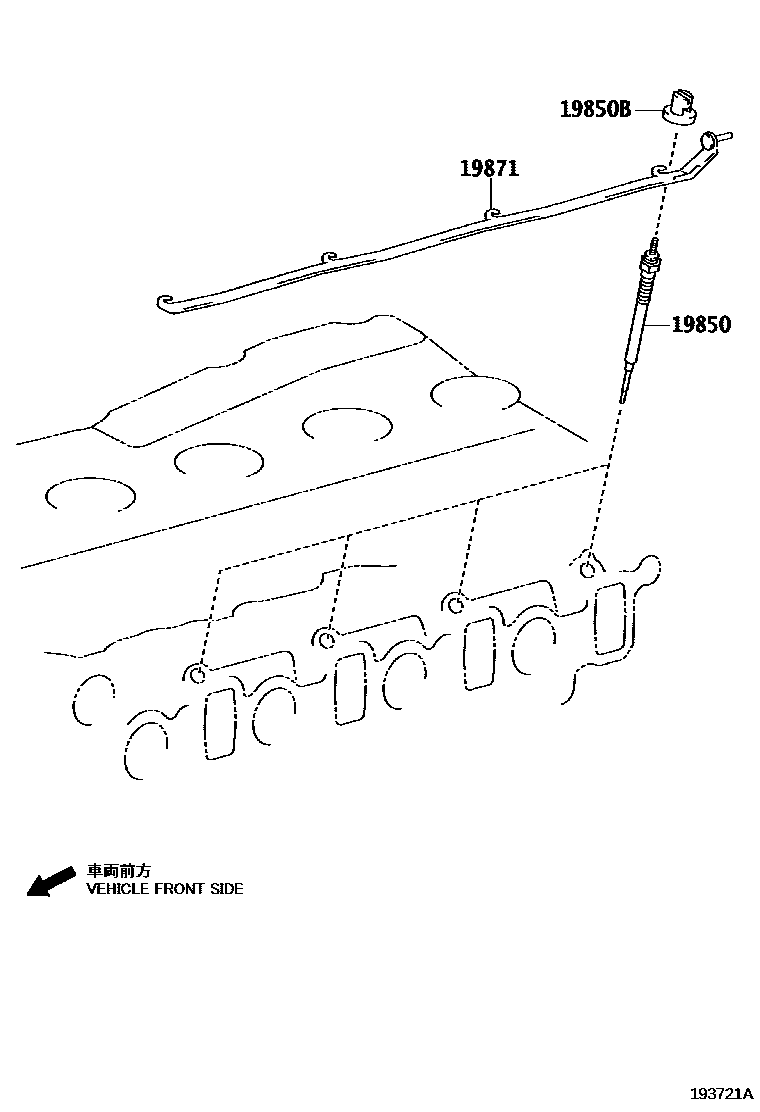

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19850PLUG ASSY, GLOW

main19850-0L010×4i2KDFTV..KUN40201107-201603

*BV-GV=12V-11V,*130

main19850-30010×4i2KDFTV..KUN40..HDCR..IDN201107-201208

*BV-GV=12V-11V,*360

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

main90189-T0001×4i2KDFTV..KUN40201107-201603

*130

19871CONNECTOR, GLOW PLUG NO.1

main19871-0L011i2KDFTV..KUN40201107-201409

*130

main19871-0L012i2KDFTV..KUN40; 2KDFTV..KUN40..DCR..(IDN,PHL); 2KDFTV..KUN40..IND201410-201603

*130; *360; INDIA SPEC(EURO 3 REGULATION),*360

main19871-30031i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

3 parts on this diagram · 2 diagrams in section
