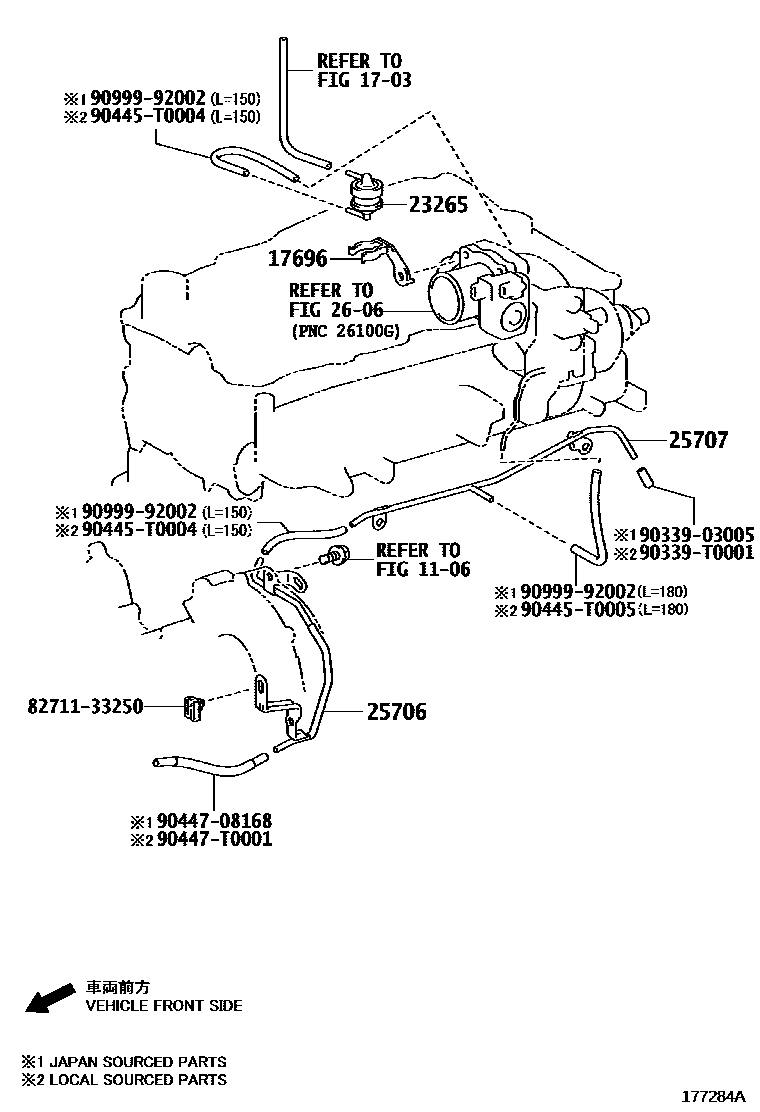

VACUUM PIPING

0001 1 0002 1EURO 4 REGULATION 0003 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1703AIR CLEANER

→ Go to FIG 17-03

17696BRACKET, GAS FILTER

main17696-0L010i2KDFTV..KUN40..IDN,PHL201107-201603

*130

main17696-30010supersedes 17696-0L040i2KDFTV..KUN40..HDCR..IDN201107-201208

*360

23265FILTER, GAS, NO.1

main90917-11036supersedes 90917-11044i2KDFTV..KUN40..DCR..(IDN,PHL); 2KDFTV..KUN40..IDN,PHL201107-201603

*130; *360

25706PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1

main25706-0L010i2KDFTV..KUN40..IDN,PHL201107-201603

*130

main25706-30020supersedes 25706-0L010i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

25707PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2

main25707-0L020i2KDFTV..KUN40..IDN,PHL201107-201603

*130

main25707-30020supersedes 25707-0L020i2KDFTV..KUN40..DCR..(IDN,PHL)201107-201603

*360

2606VENTURI

→ Go to FIG 26-06

8271133250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33250

9033903005

main90339-03005

90339T0001

main90339-T0001

90445T0004

main90445-T0004

90445T0005

main90445-T0005

9044708168

main90447-08168

90447T0001

main90447-T0001

9099992002

main90999-92002

15 parts on this diagram · 3 diagrams in section
