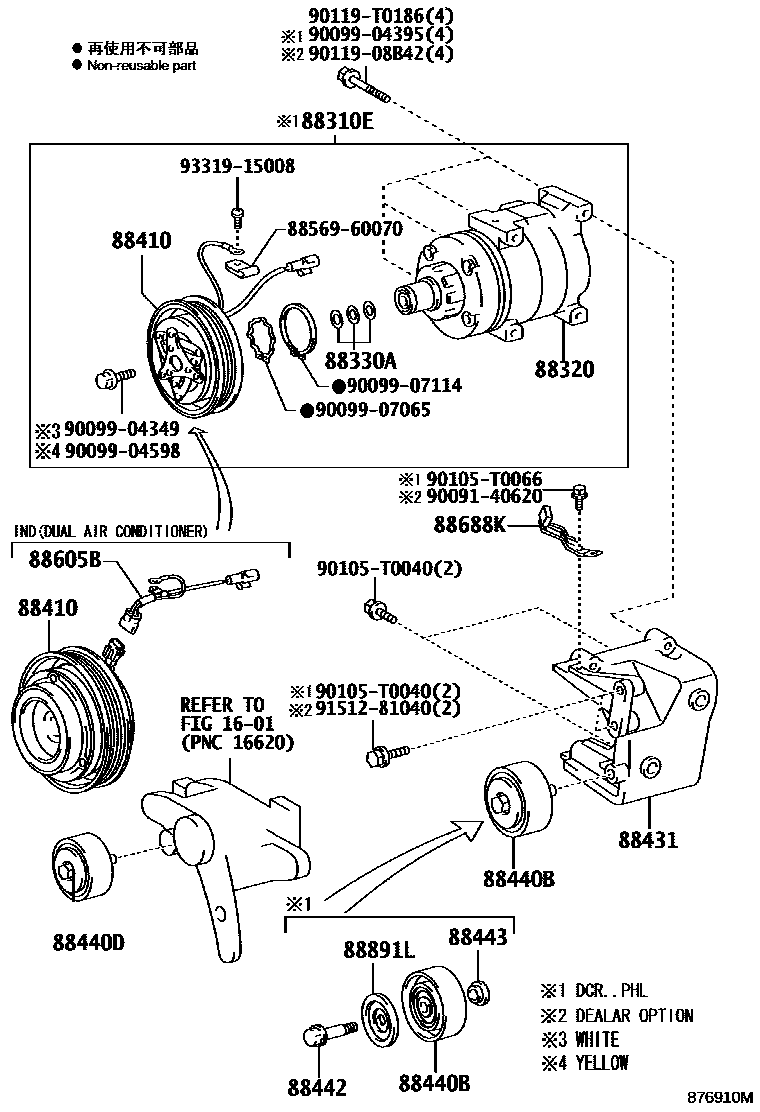

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0005 1 0010 1SINGLE AIR CONDITIONER 0011 1DUAL AIR CONDITIONER 0012 1SINGLE AIR CONDITIONER 0016 1DUAL AIR CONDITIONER 0020 1DUAL AIR CONDITIONER(DOP) 0021 1 0022 1 0023 1SINGLE AIR CONDITIONER 0024 1DUAL AIR CONDITIONER

1601WATER PUMP

→ Go to FIG 16-01

88310ECOMPRESSOR, W/MAGNET CLUTCH

main88310-0K310iKUN40..DCR..PHL200501-200805

main88310-0K311iKUN40..DCR..PHL200809

88320COMPRESSOR ASSY, COOLER

main88320-0K090supersedes 88320-0K240iKUN40..DLX..HDCR..PHL200609-200812

main88320-0K100iTGN41..STD200910-201606

main88320-0K110iTGN41..STD200501-200910

main88320-2F030supersedes 88320-0K420iKUN40..WG..DLX..IND; KUN40..WG..GL..IND201004

AIR CONDITIONER-AIR CONDITIONER DUAL

main88320-0K080iKUN40..STD..IDN200808-201107

AIR CONDITIONER-COOLER SINGLE

main88320-0K240iKUN40..INDWG..STD201004

FRONT HEATER-WITH(EVAPORATOR)

main88320-0K260iTGN41..GCC200507-200808

AIR CONDITIONER DUAL

main88320-0K420supersedes 88320-0K080iKUN40..WG..DLX..IND; KUN40..WG..STD..IND201004

FRONT HEATER-WITH(EVAPORATOR)

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iTGN41..STD200501-200910

main88335-30420iTGN40..MA,PHL;TGN40..GL..VN200501-200809

main88318-87704iKUN40..TH200411-200808

DUAL AUTO COOLER(DEALER OPTION),T=0.1

main88318-87705iKUN40..TH200411-200808

DUAL AUTO COOLER(DEALER OPTION),T=0.3

main88318-87706iKUN40..TH200411-200808

DUAL AUTO COOLER(DEALER OPTION),T=0.5

88410CLUTCH ASSY, MAGNET

main88410-0K070iTGN40..STD..VN200601-200801

main88410-0K090iTGN40..MA,PHL;TGN40..GL..VN200809

main88410-0K100iKUN40..GL..HDCR..PHL200501-200809

main88410-0K200supersedes 88410-0K470iKUN40,TGN40..WG..DLX..(IND,TAIW); TGN41..4FC..TAIW;KUN40,TGN40..WG..GL..(IND,TAIW)200502-201606

AIR CONDITIONER DUAL

main88410-0K300iTGN40..(DLX,STD)..IND200502-200712

main88410-0K420iTGN40..STD..VN200801-200804

main88410-0K430iTGN40..DLX..IND200712-200804

main88410-0K470iKUN40..INDWG..DLX200812

main88410-0K490iTGN40..STD..VN200804-200809

main88410-0K500iTGN40..DLX..IND200812

main88410-0K540supersedes 88410-0K190iKUN40..WG..(DLX,GL)..IND; KUN40..WG..STD..IND201004

FRONT HEATER-WITH(EVAPORATOR)

main88410-0K080iKUN40..STD..IDN200408-200712

COOLER SINGLE

main88410-0K380iTGN41..GCC; TGN41..GL..GCC200808-201107

FRONT HEATER-WITH(AIR CONDITIONER); FRONT HEATER-WITH(EVAPORATOR)

main88410-0K390iKUN40..STD..IDN200712-200805

COOLER SINGLE

main88410-0K460iKUN40..STD..IDN200805-200808

COOLER SINGLE

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-0K010iTGN40..IND,MA,PHL,VN200809

main88431-0K020iKUN40..STD..IND200501-200702

main88431-0K050iKUN40..DCR..PHL200501-200809

main88431-0K100iTGN4#..TAIW200707-201606

88440BPULLEY ASSY, IDLE

main88440-0K060iKUN40..(DLX,GL)..IND;KUN40..GL..HDCR..PHL200501-200812

main88440-0K200iKUN40..DCR..PHL200501-200809

main88440-0K350iTGN41..TAIW200707-201107

main88440-0K351iTGN4#..TAIW201108-201606

main88440-0K380iTGN40..IND,MA,PHL,VN200809-201110

main88440-0K381iTGN40..IND,VN201111-201202

88440DPULLEY ASSY, IDLE NO.2

main88440-0K050iKUN40..(DLX,GL)..IND200502-200812

main88440-0K300iKUN40..DLX..HDCR..PHL200609-200809

main88440-0K010iKUN40..TH200411-200808

DUAL AUTO COOLER(DEALER OPTION)

main88440-0K020iKUN40..DLX..IDN; KUN40..GL..IDN; KUN40..STD..IDN200408-200808

AUTO COOLER DUAL; COOLER DUAL; COOLER SINGLE

88442SHAFT, IDLE PULLEY

main88442-0K010iKUN40..DCR..PHL200809

88443COLLAR, IDLE PULLEY

main88443-0K010iKUN40..DCR..PHL200809

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-0K010iTGN40..DLX..IND; TGN40..GL..IND200502-200812

AIR CONDITIONER DUAL

main88605-0K030iKUN40..DLX..IND; KUN40..GL..IND200502-200812

AIR CONDITIONER DUAL

main88605-0K150iKUN40..WG..(DLX,GL)..IND; KUN40..WG..STD..IND201004-201201

FRONT HEATER-WITH(EVAPORATOR)

88688KBRACKET, COOLER COMPRESSOR

main88688-0K090iTGN40..MA,PHL,VN200809

main88688-0K130iKUN40..(DLX,GL)..IND200812-201003

main88688-0K150iKUN40..HDCR..PHL200809

main88688-0K280iTGN40..IND200812

main88688-0K690supersedes 88688-0K130iKUN40..WG..(DLX,GL)..IND; KUN40..WG..STD..IND201004

FRONT HEATER-WITH(EVAPORATOR)

main88688-0K100iKUN40..TH200411-200808

DUAL AUTO COOLER(DEALER OPTION)

main88688-0K110iKUN40..DLX..IDN; KUN40..GL..IDN; KUN40..STD..IDN200408-200808

AUTO COOLER DUAL; COOLER DUAL; COOLER SINGLE

88891LCOVER, COOLER, NO.1

main88891-0K220iKUN40..DCR..PHL200809

8856960070CLAMP (FOR COOLER RELAY)

main88569-60070

9009140620

main90091-40620

9009904349

main90099-04349

9009904395

main90099-04395

9009904598

main90099-04598

9009907065

main90099-07065

9009907114

main90099-07114

90105T0040

main90105-T0040

90105T0066

main90105-T0066

9011908B42

main90119-08B42

90119T0186

main90119-T0186

9151281040

main91512-81040

9331915008

main93319-15008

26 parts on this diagram · 11 diagrams in section
