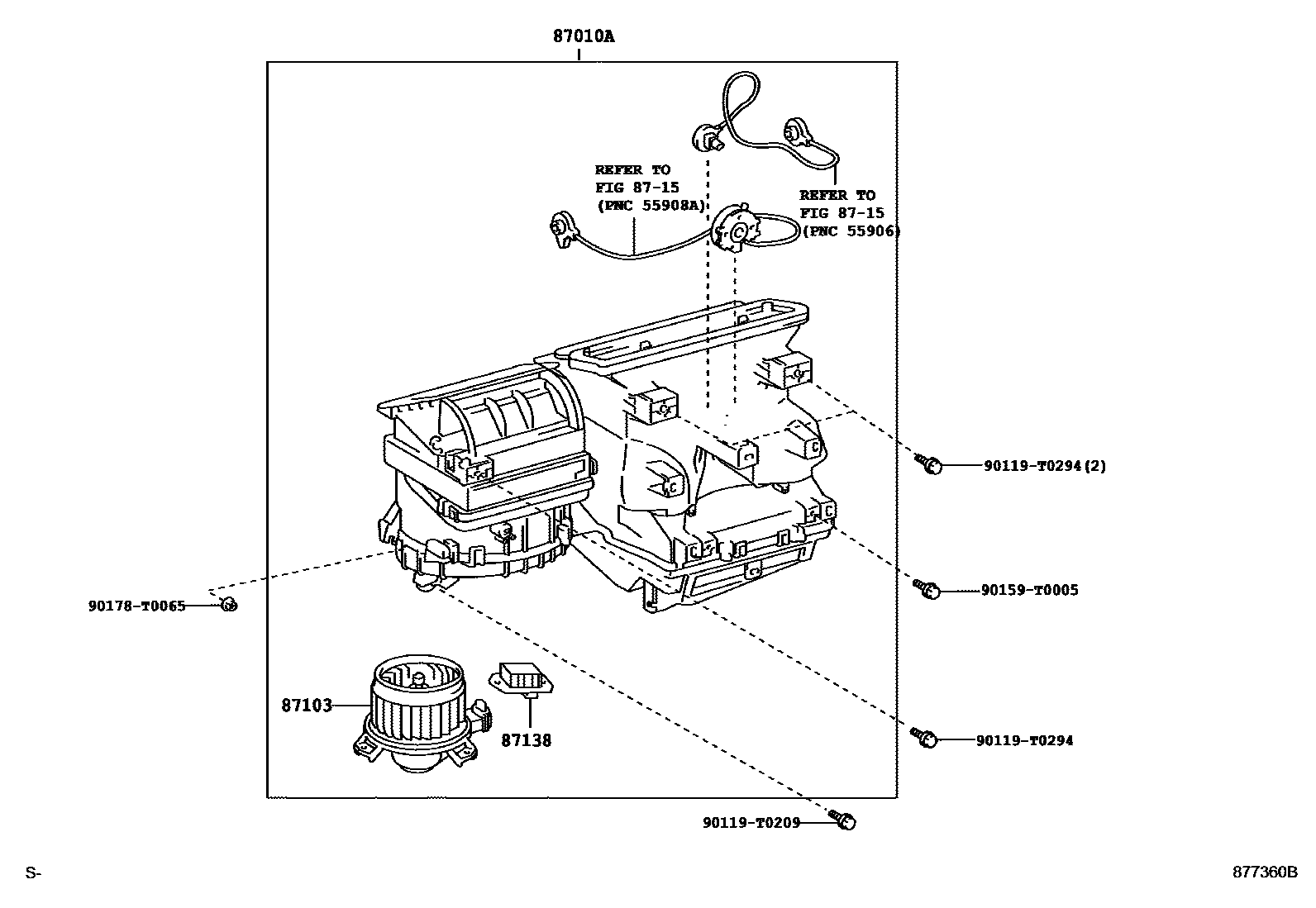

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87010AUNIT ASSY,AIR CONDITIONER

main87010-0K090iKUN40,TGN40..IDN200408-200808

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-0K120iKUN40,TGN40..IDN200408-200808

87138RESISTOR, HEATER BLOWER

main87138-0K090iKUN40,TGN40..IDN200408-200808

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

90119T0209

main90119-T0209

90119T0294

main90119-T0294

90159T0005

main90159-T0005

90178T0065

main90178-T0065

8 parts on this diagram · 1 diagram in section
