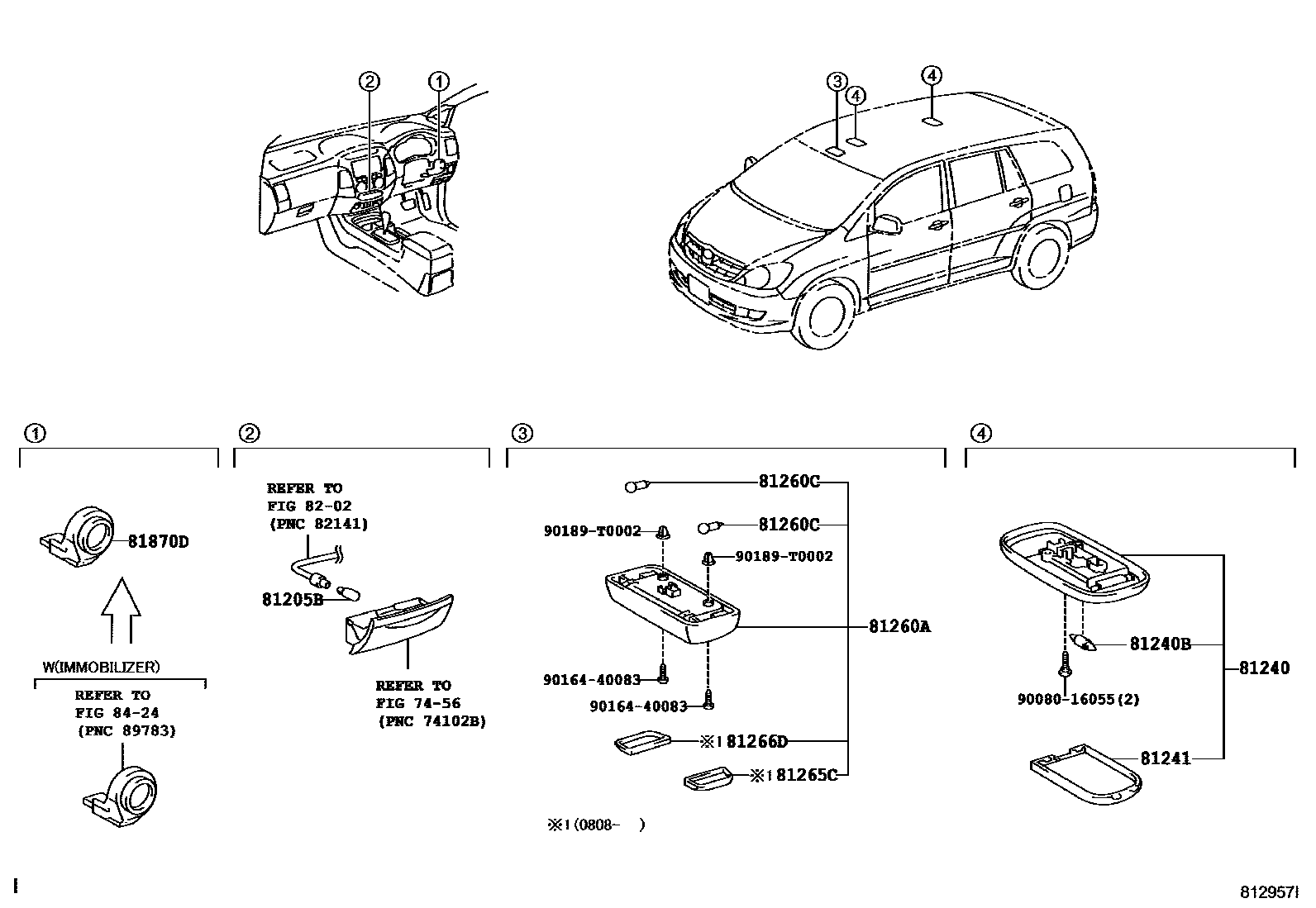

INTERIOR LAMP

7456ASH RECEPTACLE

→ Go to FIG 74-56

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iTGN40..5F..GL..VN;KUN40,TGN4#..WG..GL..(GCC,IDN,IND,MA,PHL,TAIW,TH)200408

14V 1.4W

81240LAMP ASSY, ROOM, NO.1

main81240-0K010-A0×2iTGN41..GL..TAIW200707-201111

IVORY,TRIM0#

main81240-0K010-B0×2iTGN4#..TAIW200707-201606

LT.GRAY,TRIM1#

main81240-0K020-E0iKUN40,TGN40..LO200908-201107

GREGE,TRIM4#

main81240-12080-A1×2iTGN40..5F..GL..VN;TGN40..5F..DLX..MA;KUN40..GL..HDCR..PHL;TGN40..DLX..(IDN,IND,TH);KUN40..(DLX,GL)..DCR..PHL;TGN40..GL..(IDN,IND,MA,PHL,TH);KUN40,TGN41..(DLX,GL)..(GCC,IDN,IND,TH)200408-200812

IVORY,TRIM0#

main81240-12080-B2×2iKUN40,TGN40..DLX..PHL;KUN40,TGN40..5F..STD..(IDN,PHL,TH,VN)200809-201202

LT.GRAY,TRIM1#

main81240-12080-E1iKUN40..STD..IND200812-201201

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011×2iTGN40..4FC..DLX..MA200408-200808

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12020×2iTGN40..4FC..DLX..MA200408-200808

81260ALAMP ASSY, MAP

main81260-0K010-A0iTGN40..DLX..TH;TGN40..5F..GL..VN;KUN40,TGN4#..WG..GL..(IDN,IND,MA,PHL,TAIW,TH)200408-201111

IVORY,TRIM0#

main81260-0K010-B0iTGN41..GL..TAIW200707-200812

LT.GRAY,TRIM1#

main81260-0K010-E0iTGN40..4FC..GL..MA200808-201107

GREGE,TRIM4#

81260CBULB(FOR MAP LAMP)

main90981-12020×2iTGN40..DLX..TH;TGN40..5F..GL..VN;KUN40,TGN4#..WG..GL..(IDN,IND,MA,PHL,TAIW,TH)200408

12V 8W

81265CLENS, MAP LAMP, NO.1

main81265-0K010iTGN40..4FC..GL..MA200808-201107

81266DLENS, MAP LAMP, NO.2

main81266-0K010iTGN40..DLX..TH;KUN40,TGN40..GL..(IDN,IND,PHL,TH,VN)200808

81870DLAMP ASSY, KEY CYLINDER

main81870-0K010iTGN40..MA200408-200709

main81870-0K020iTGN4#..GL..TAIW; TGN41..DLX..TAIW;TGN40..(DLX,STD)..TAIW200707

ANTI-THEFT SYSTEM-SECURITY HORN

8202WIRING & CLAMP

→ Go to FIG 82-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

9008016055

main90080-16055

9016440083

main90164-40083

90189T0002

main90189-T0002

15 parts on this diagram · 1 diagram in section
