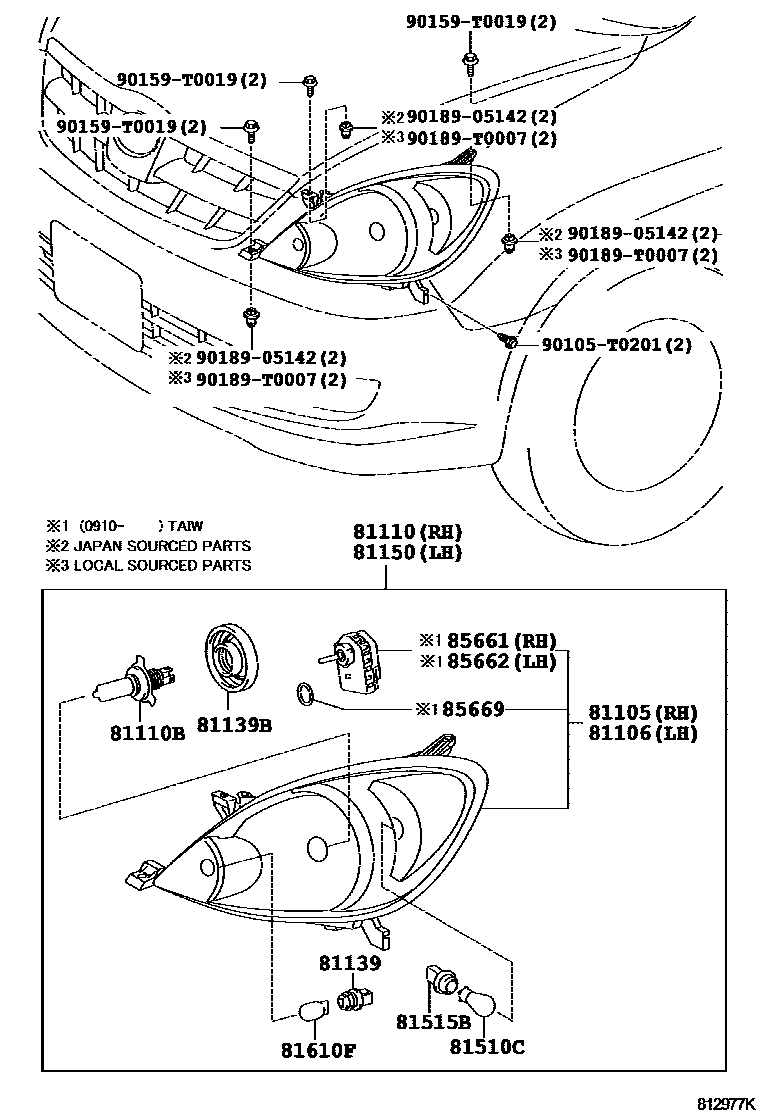

HEADLAMP

0001 1 0005 1 0006 1

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-0K130iKUN40,TGN4#..IDN,MA,TH200408-200809

main81105-0K140iKUN40,TGN4#..GCC,PHL,VN200501-200809

main81130-0K160iKUN40,TGN40..IND200502-200812

main81130-0K330iKUN40,TGN40..IND200909

main81130-0K360iTGN4#..TAIW200910

main81130-8C018iTGN41..TAIW200707-200910

main81105-0K150iTGN41..GCC200507-200808

SAUDI ARABIA SPEC

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-0K130iKUN40,TGN4#..IDN,MA,TH200408-200809

main81106-0K140iKUN40,TGN4#..GCC,PHL,VN200501-200809

main81170-0K160iKUN40,TGN40..IND200812-200909

main81170-0K330iKUN40,TGN40..IND200909

main81170-0K360iTGN4#..TAIW200910

main81170-8C018iTGN41..TAIW200707-200910

main81106-0K150iTGN41..GCC200507-200808

SAUDI ARABIA SPEC

81110HEADLAMP ASSY, RH

main81110-0K130iKUN40,TGN4#..IDN,MA,TH200408-200809

main81110-0K140iKUN40,TGN4#..GCC,PHL,VN200501-200809

main81110-0K160iKUN40,TGN40..IND200502-200812

main81110-0K170iTGN41..TAIW200707-200910

main81110-0K300iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,TH200808-201107

main81110-0K310iKUN40,TGN4#..GCC,PHL,VN200808

main81110-0K330iKUN40,TGN40..IND200812-200908

main81110-0K331iKUN40,TGN40..IND200909

main81110-0K360iTGN4#..TAIW200910-201303

main81110-0K361iTGN40201303-201606

main81110-0K150iTGN41..GCC200507-200808

SAUDI ARABIA SPEC

main81110-0K320iTGN41..GCC200808-201107

SAUDI ARABIA SPEC

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015×2iKUN40,TGN40..IND200812-201204

12V 60/55W,*HAL *WH

main90981-13058×2iKUN40,TGN40..WG..IND200808

12V 60/55W,HALOGEN

81139COVER, HEADLAMP SOCKET

main81138-0K160×2iKUN40,TGN40..IND200502-200812

main81139-58010×2iKUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main90075-8C010×2iTGN4#..TAIW200707

main90075-99109×2iKUN40,TGN40..IND200812

81139BSOCKET, HEADLAMP BULB

main81139-0K130×2iTGN40..4FC..MA;TGN40..5F..DLX..MA200808-201107

main81139-0K160×2iKUN40,TGN40..IND200502-200812

main90075-65002×2iKUN40,TGN40..IND200812

main90075-8C003×2iTGN4#..TAIW200707

81150HEADLAMP ASSY, LH

main81150-0K130iKUN40,TGN4#..IDN,MA,TH200408-200809

main81150-0K140iKUN40,TGN4#..GCC,PHL,VN200501-200809

main81150-0K160iKUN40,TGN40..IND200502-200812

main81150-0K170iTGN41..TAIW200707-200910

main81150-0K300iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,TH200808-201107

main81150-0K310iKUN40,TGN4#..GCC,PHL,VN200808

main81150-0K330iKUN40,TGN40..IND200812-200908

main81150-0K331iKUN40,TGN40..IND200909

main81150-0K360iTGN4#..TAIW200910-201303

main81150-0K361iTGN40201303-201606

main81150-0K150iTGN41..GCC200507-200808

SAUDI ARABIA SPEC

main81150-0K320iTGN41..GCC200808-201107

SAUDI ARABIA SPEC

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90080-81116×2iTGN40..4FC..MA;TGN40..5F..DLX..MA200808-201107

12V 21W,YELLOW

main90981-15009×2iKUN40,TGN40..IND200812

12V 21W,AMBER

main90981-WF005iTGN40201303

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81128-0K160×2iKUN40,TGN40..IND200502-200812

main90075-60006×2iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main90075-60069×2iTGN4#..TAIW200707-201606

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

12V 5W

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iTGN4#..TAIW200910

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iTGN4#..TAIW200910

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iTGN4#..TAIW200910

90105T0201

main90105-T0201

90159T0019

main90159-T0019

9018905142

main90189-05142

90189T0007

main90189-T0007

17 parts on this diagram · 3 diagrams in section
