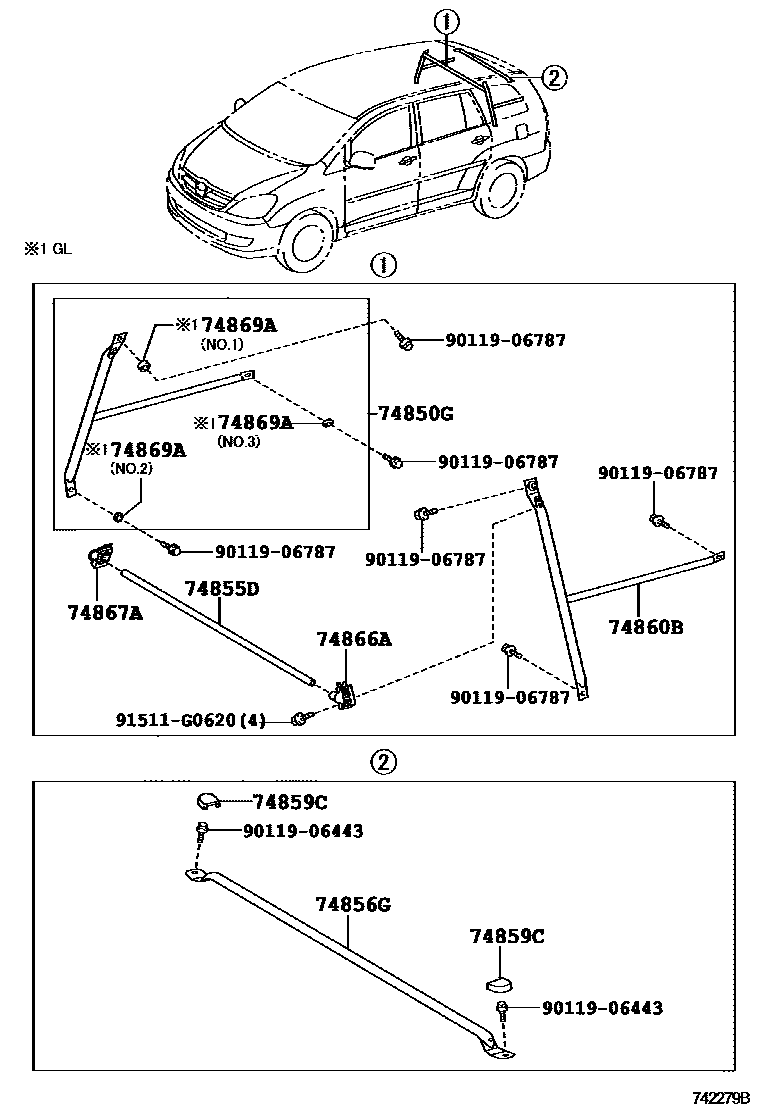

SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1

74850GSEPARATOR ASSY, REAR

main74850-0K010iTGN41..(DLX,STD)..TAIW200707-200909

main74850-0K011iTGN4#..(DLX,STD)..TAIW200909

main74850-0K020iTGN41..GL..TAIW200707-200908

main74850-0K021iTGN4#..GL..TAIW200909

74855DBAR, SEPARATOR, UPPER

main74855-0K010iTGN41..TAIW200707-200909

main74855-0K020iTGN4#..TAIW200909

74856GBAR, SEPARATOR, NO.6

main74856-0K010iTGN4#..TAIW200707

74859CCOVER, REAR SEPARATOR BAR, LH

main74858-0K010-A0×2iTGN41..GL..TAIW200909-201111

IVORY,TRIM0#,RH

main74858-0K010-B0×2iTGN40..TAIW;TGN41..(DLX,STD)..TAIW200909

LT.GRAY,TRIM1#,RH

main74859-0K010-A0×2iTGN41..GL..TAIW200707-200909

IVORY,TRIM0#

main74859-0K010-B0×2iTGN41..(DLX,STD)..TAIW200707-200909

LT.GRAY,TRIM1#

main74859-0K020-A0×2iTGN41..GL..TAIW200909-201111

IVORY,TRIM0#,LH

main74859-0K020-B0×2iTGN40..TAIW;TGN41..(DLX,STD)..TAIW200909

LT.GRAY,TRIM1#,LH

74860BSEPARATOR ASSY, REAR LH

main74860-0K010iTGN41..GL..TAIW200707-200908

main74860-0K011iTGN41..GL..TAIW200909-200910

main74860-0K012iTGN4#..GL..TAIW200910

74866ABRACKET, SEPARATOR BAR, NO.3

main74866-0K010iTGN41..TAIW200707-200909

74867ABRACKET, SEPARATOR BAR, NO.4

main74867-0K010iTGN41..TAIW200707-200909

74869APROTECTOR, SEPARATOR BAR

main74869-0K010iTGN41..GL..TAIW200707-200910

NO.1

main74869-0K020×2iTGN4#..GL..TAIW200910

NO.2

main74869-0K030iTGN41..GL..TAIW200707-200910

NO.3

9011906443

main90119-06443

9011906787

main90119-06787

91511G0620

main91511-G0620

11 parts on this diagram · 2 diagrams in section
