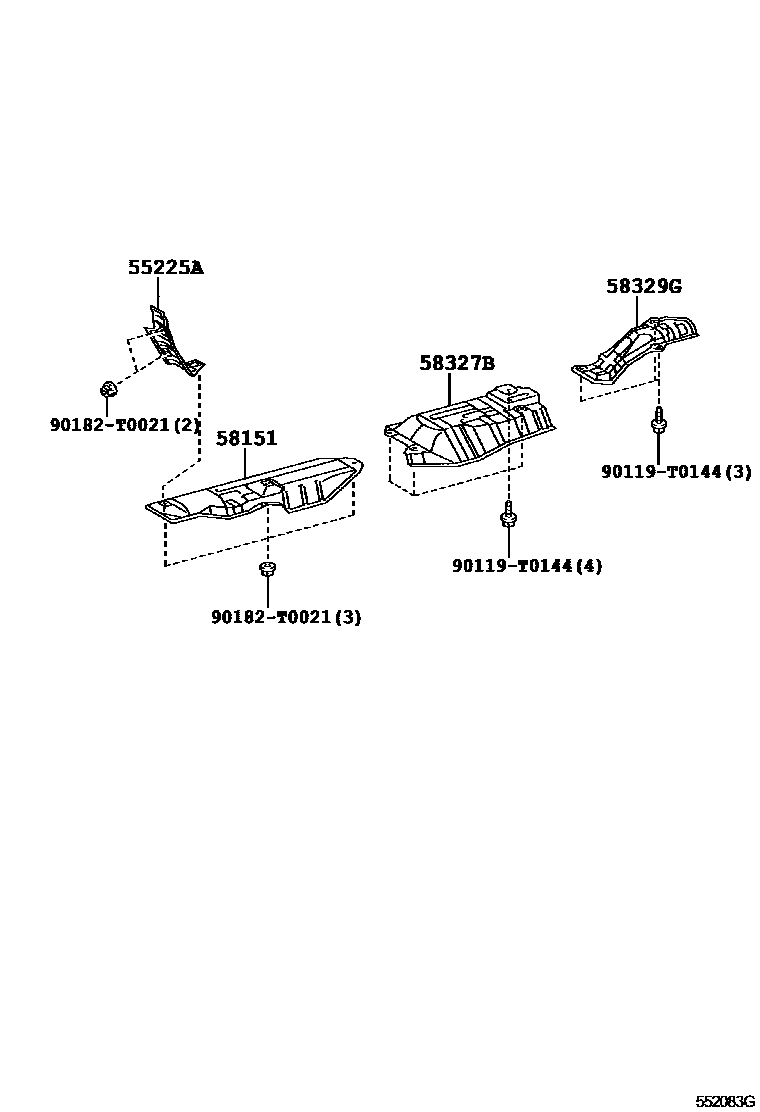

FLOOR INSULATOR

55225AINSULATOR, DASH PANEL HEAT, NO.1

main55225-0K010iTGN41;TGN40..5F..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main55225-0K030iTGN4#..GCC,IDN,MA,PHL,TH,VN201011

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0K030iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

58329GINSULATOR, MAIN MUFFLER HEAT, REAR UPPER

main58329-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

90119T0144

main90119-T0144

90182T0021

main90182-T0021

6 parts on this diagram · 1 diagram in section
