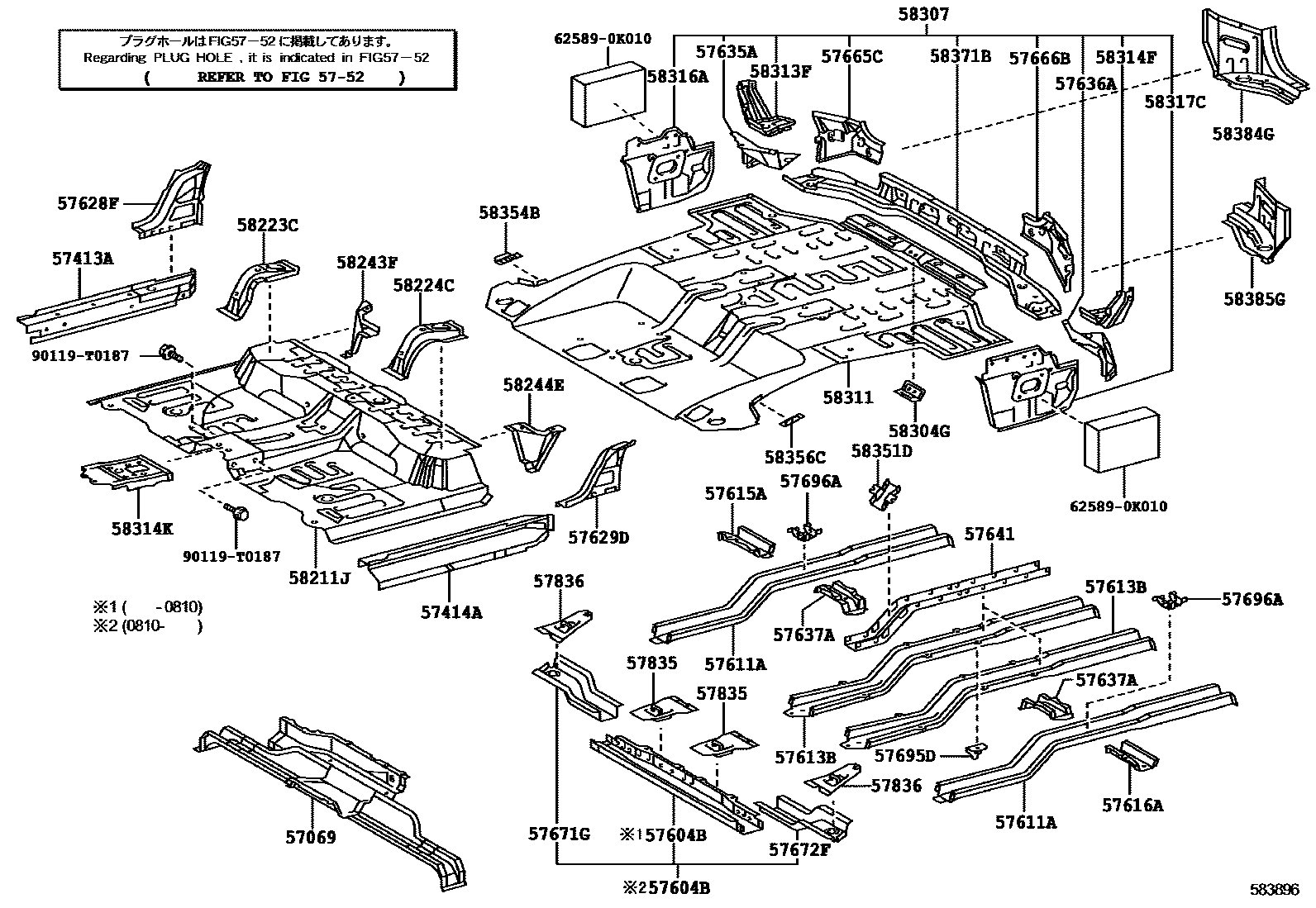

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1 0003 1

57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER

main57069-0K010iKUN40,TGN4#..GCC,TH200411-200808

main57069-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);KUN40,TGN41..(DLX,GL,STD)..(IDN,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,VN)200408

main57069-0K030iKUN40,TGN40..IND200812

57413AMEMBER, FLOOR SIDE, INNER REAR RH

main57413-0K040iKUN40,TGN4#..GCC,TH200411-200808

main57413-0K050iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200808

57414AMEMBER, FLOOR SIDE, INNER REAR LH

main57414-0K040iTGN4#..GCC,TH200808-201107

main57414-0K050iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

5752HOLE PLUG

→ Go to FIG 57-52

57604BMEMBER SUB-ASSY, REAR FLOOR SIDE, NO.3

main57604-0K020iTGN4#..TAIW200707

main57604-0K906iTGN4#..GCC,TH200808-200810

main57604-0K907iKUN40,TGN4#..IDN,MA,PHL,VN200408-200809

main57604-0K908iKUN40,TGN40..IND200812

main57604-0K909iTGN4#..GCC,TH200810-201107

main57604-0K910iKUN40,TGN40..IDN,MA,PHL,VN200810

57611AMEMBER, REAR FLOOR SIDE, RH

main57611-0K010×2iKUN40,TGN4#..GCC,TH200411-200808

main57611-0K020iKUN40,TGN40..IND201002

RH

main57612-0K010iKUN40,TGN40..IND201002

LH

57613BMEMBER, REAR FLOOR SIDE CENTER, RH

main57613-0K010×2iKUN40,TGN4#..GCC,TH200411-200808

main57613-0K030×2iTGN40..5F..VN;KUN40,TGN4#..IDN,IND,MA,PHL200408-200812

main57613-0K070×2iTGN4#..TAIW200707

main57614-0K010iKUN40,TGN40..IND201002

LH

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main57615-0K020iKUN40,TGN40..IND200812

main57615-0K030iTGN4#..TAIW200707

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main57616-0K020iKUN40,TGN40..IND200502-200812

main57616-0K030iTGN4#..TAIW200707

57628FPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main57628-0K030iKUN40,TGN40..IND200812

57629DPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main57629-0K030iKUN40,TGN40..IND200812

57635AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR RH

main57635-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main57635-0K020iKUN40,TGN40..IND200502-200812

main57635-0K030iTGN4#..TAIW200707

57636AREINFORCEMENT, REAR FLOOR SIDE MEMBER, REAR LH

main57636-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main57636-0K020iKUN40,TGN40..IND200502-200812

main57636-0K030iTGN4#..TAIW200707

57637AREINFORCEMENT, REAR FLOOR SIDE, RH

main57637-0K010×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main57637-0K020×2iKUN40,TGN40..IND200502-200812

57641REINFORCEMENT, REAR FLOOR SIDE MEMBER, INNER RH

main57641-0K020×2iKUN40..INDWG;TGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,PHL,VN200808

main57641-0K040×2iKUN40,TGN4#..GCC,TH200411-200808

57665CPANEL, LOWER BACK SIDE, RH

main57665-0K010iKUN40,TGN4#..GCC,TH200411-200808

main57665-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

57666BPANEL, LOWER BACK SIDE, LH

main57666-0K010iTGN4#..GCC,TH200808-201107

main57666-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200808

57671GMEMBER, REAR FLOOR CROSS, NO.1 RH

main57671-0K010iTGN4#..GCC,TH200808-201107

main57671-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200808

57672FMEMBER, REAR FLOOR CROSS, NO.1 LH

main57672-0K010iTGN4#..GCC,TH200808-201107

main57672-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH

main57695-0K010×4iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main57695-0K020×4iKUN40,TGN40..IND200812

57696AEXTENSION, REAR FLOOR CROSSMEMBER REAR SIDE, LH

main57696-0K010×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main57696-0K020×2iKUN40,TGN40..IND200812

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-0K020×2iTGN41..LHD;TGN40..DLX..TH;KUN40..(DLX,GL,STD)..(IDN,PHL);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN)200408

main57835-0K030×2supersedes 57835-0K050iKUN40..GL..IND; TGN40..IND;KUN40..(DLX,STD)..IND200812

REAR SEAT-6/4 TUMBLE SLIDE

main57835-0K040×2iTGN40..GL..TH200808-201107

main57835-0K050×2iTGN40..GL..IND200502-200602

57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2

main57836-0K010×2iTGN40..DLX..TH;TGN40..5F..DLX..MA;KUN40,TGN41..GCC,IDN,PHL;TGN40..5F..(IDN,PHL,TH,VN);TGN40..4FC..(IDN,MA,PHL,VN)200808

main57836-0K020×2supersedes 57836-0K040iKUN40..GL..IND; TGN40..GL..IND200602-200812

REAR SEAT-6/4 TUMBLE SLIDE

main57836-0K030×2iTGN41..IDN200412-200808

main57836-0K040×2iTGN40..GL..IND200502-200602

58211JPAN, CENTER FLOOR

main58211-0K020iTGN4#..GCC,TH200808-201107

main58211-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200808

58223CREINFORCEMENT, SEAT SET, NO.1

main58223-0K020iKUN40,TGN40..IDN,MA,PHL; KUN40..GL..HDCR;TGN40..4FC..GL..PHL;KUN40,TGN40..GL..(DCR,HTWC)..IDN201009

SEAT COVER MATERIAL-LEATHER

main58223-0K030iTGN40..VN201009

58224CREINFORCEMENT, SEAT SET, NO.2

main58224-0K020iKUN40,TGN40..IDN,MA,PHL; KUN40..GL..HDCR;TGN40..4FC..GL..PHL;KUN40,TGN40..GL..(DCR,HTWC)..IDN201009

SEAT COVER MATERIAL-LEATHER

main58224-0K030iTGN40..VN201009

58243FPANEL, FLOOR SIDE, REAR RH

main58243-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200808

main58243-0K050iTGN4#..GCC,TH200808-201107

58244EPANEL, FRONT FLOOR SIDE, REAR LH

main58244-0K020iKUN40,TGN4#..GCC,TH200411-200808

main58244-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

58304GREINFORCE SUB-ASSY, BODY LOWER BACK PANEL

main58304-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main58304-0K020iKUN40,TGN40..IND200502-200812

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0K040iKUN40,TGN40..IND200502-200812

main58307-0K060iTGN4#..TAIW200707

main58307-0K902iTGN4#..GCC,TH200808-201107

main58307-0K903iKUN40,TGN4#..IDN,MA,PHL,VN200408-200809

58311PAN, REAR FLOOR

main58311-0K140iTGN4#..GCC,TH200808-201107

main58311-0K150iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200808

main58311-0K160iTGN4#..TAIW200707-201612

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58305-0K020iKUN40,TGN4#..GCC,TH200411-200808

main58305-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58306-0K020iKUN40,TGN4#..GCC,TH200411-200808

main58306-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

58314KPANEL, REAR FLOOR, CENTER

main58314-0K020iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

58316AEXTENSION, REAR FLOOR SIDE PANEL, REAR RH

main58316-0K020iTGN4#..GCC,TH200808-201107

main58316-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200808

58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH

main58317-0K010iKUN40,TGN4#..GCC,TH200411-200808

main58317-0K020iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

58351DREINFORCEMENT, REAR FLOOR PANEL

main58351-0K010×2iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main58351-0K020×2iKUN40,TGN40..IND200812

58354BREINFORCEMENT, REAR FLOOR PANEL, NO.4

main58354-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

58356CREINFORCEMENT, REAR FLOOR PANEL, NO.6

main58356-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

58371BPANEL, BODY LOWER BACK, OUTER

main58371-0K010iTGN4#..GCC,TH200808-201107

main58371-0K020iKUN40,TGN4#..WG..(IND,TAIW)200502

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0K020iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

625890K010GARNISH, BACK PANEL

main62589-0K010

90119T0187

main90119-T0187

44 parts on this diagram · 3 diagrams in section
