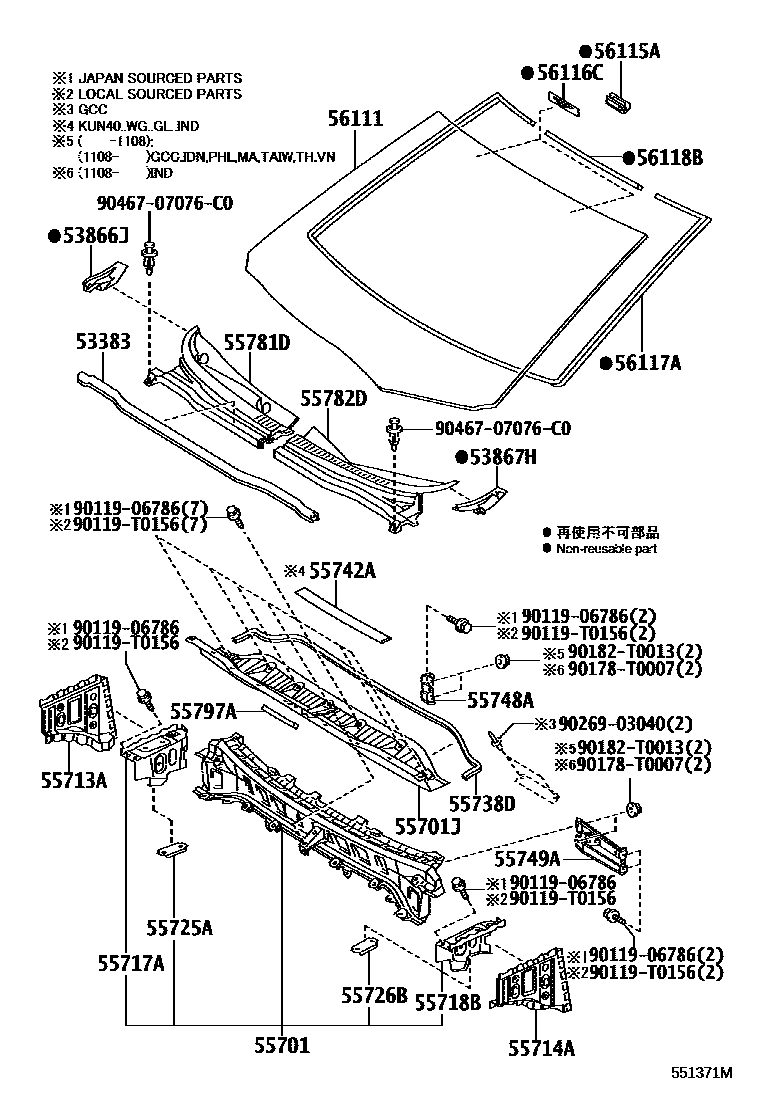

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-0K030iTGN41;TGN40..5F..VN;KUN40,TGN40..MA,PHL,TAIW200408-201307

main53383-0K040iKUN40,TGN40..IND200502-200807

main53383-0K050iKUN40,TGN40..IDN,IND,TH200808-201204

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main53866-0K020iKUN40,TGN40..IND200502-200812

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main53867-0K020iKUN40,TGN40..IND200502-200812

55701PANEL SUB-ASSY, COWL

main55700-0K040iKUN40,TGN40..TH200411-200808

main55700-0K050iTGN41..GCC200808-201107

main55700-0K060iKUN40,TGN4#..IDN,MA200408-200809

main55700-0K070iKUN40..GL..IND200812-201004

main55700-0K080iTGN40..LHD..5F..GL;TGN40..LHD..(DLX,STD);KUN40,TGN41..PHL,TAIW;TGN40..4FC..GL..(PHL,TAIW)200501-201606

main55700-0K130iKUN40..WG..GL..IND201004-201204

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-0K010iKUN40,TGN4#..IDN,MA,TH200408-200809

main55701-0K020iKUN40,TGN41..LHD;TGN40..LHD..5F..GL;TGN40..LHD..(DLX,STD);TGN40..4FC..GL..(PHL,TAIW)200501

main55701-0K030iKUN40..GL..IND200812-201004

main55701-0K040iKUN40..WG..GL..IND201004

55713APANEL, COWL TOP SIDE, RH

main55713-0K010iTGN4#..GCC,TH200808-201107

main55713-0K020iKUN40,TGN40..PHL201009

main55713-0K030iTGN40..VN201009

55714APANEL, COWL TOP SIDE, LH

main55714-0K010iKUN40,TGN4#..GCC,TH200411-200808

main55714-0K020iKUN40,TGN40..PHL201009

main55714-0K030iTGN40..VN201009

55717APANEL, COWL TOP SIDE, INNER RH

main55717-0K020iKUN40,TGN4#..GCC,TH200411-200808

main55717-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN40..IDN,IND,PHL,VN200808

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-0K020iTGN4#..GCC,TH200808-201107

main55718-0K030iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,IND,MA,PHL,TAIW,VN);KUN40,TGN41..WG..(DLX,GL,STD)..(IDN,IND,PHL,TAIW)200408

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main55725-0K020iKUN40,TGN40..IND200502-200812

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main55725-0K020iKUN40,TGN40..IND200812-201204

55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2

main55738-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

55742ASHEET, COWL TOP INSULATOR

main55742-0K040iKUN40..WG..GL..IND201004

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-0K030iKUN40,TGN40..IND,MA,PHL201108

main55748-0K040iTGN40..VN201009

55749ABRACE, COWL TOP INNER TO PILLAR, LH

main55749-0K010iKUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH201009-201108

main55749-0K020iTGN40..VN201009

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0K100iKUN40,TGN4#..IDN,MA,TH200408-200809

main55708-0K110iKUN40,TGN4#..GCC,PHL,VN200808-201204

main55708-0K111iTGN40201311

main55708-0K120iKUN40,TGN40..IND200502-200812

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0K100iKUN40,TGN40..IDN,TH200408-200803

main55709-0K110iKUN40,TGN4#..GCC,PHL,VN200808-201204

main55709-0K111iTGN40201311

main55709-0K120iKUN40,TGN40..IND200812-201204

main55709-0K130iKUN40,TGN40..IDN,TH200808-201107

55797ASEAL, COWL WATER EXTRACT

main55797-0K090iTGN40..RHD..4FC..(DLX,GL);KUN40..(DLX,GL,STD)..(IDN,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,TH)200803

56111GLASS, WINDSHIELD

main56101-0K080iTGN41..GCC200507-200608

*LAM,T=4.76,GREEN

main56101-0K090iTGN40..MA200408-200609

*LAM,T=4.76,GREEN

main56101-0K100iKUN40,TGN40..STD..IND200502-200812

*LAM,T=4.76,CLEAR

main56101-0K110iKUN40,TGN40..(DLX,GL)..IND200812-200901

*LAM,T=4.76,GREEN

main56101-0K111iKUN40,TGN40..(DLX,GL)..IND200901-201204

*LAM,T=4.76,GREEN

main56101-0K120iKUN40,TGN40..PHL,VN200809-201204

*LAM,T=4.76,GREEN

main56101-0K140iTGN41..GCC200808-201107

*LAM,T=4.76,GREEN

main56101-0K150iTGN40..MA200809-201110

*LAM,T=4.76,GREEN

main56101-0K160iTGN4#..TAIW200707

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-02020×2iTGN40..5F..VN;KUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH200408-200812

main56115-30100×2iTGN4#..TAIW200707

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020×2iTGN40..5F..VN;KUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH200408-200812

main56116-22050×2iTGN4#..TAIW200707

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0K040iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

L=3429

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56118-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

L=635

9011906786

main90119-06786

90119T0156

main90119-T0156

90178T0007

main90178-T0007

90182T0013

main90182-T0013

9026903040

main90269-03040

9046707076C0

main90467-07076C0

29 parts on this diagram · 1 diagram in section
