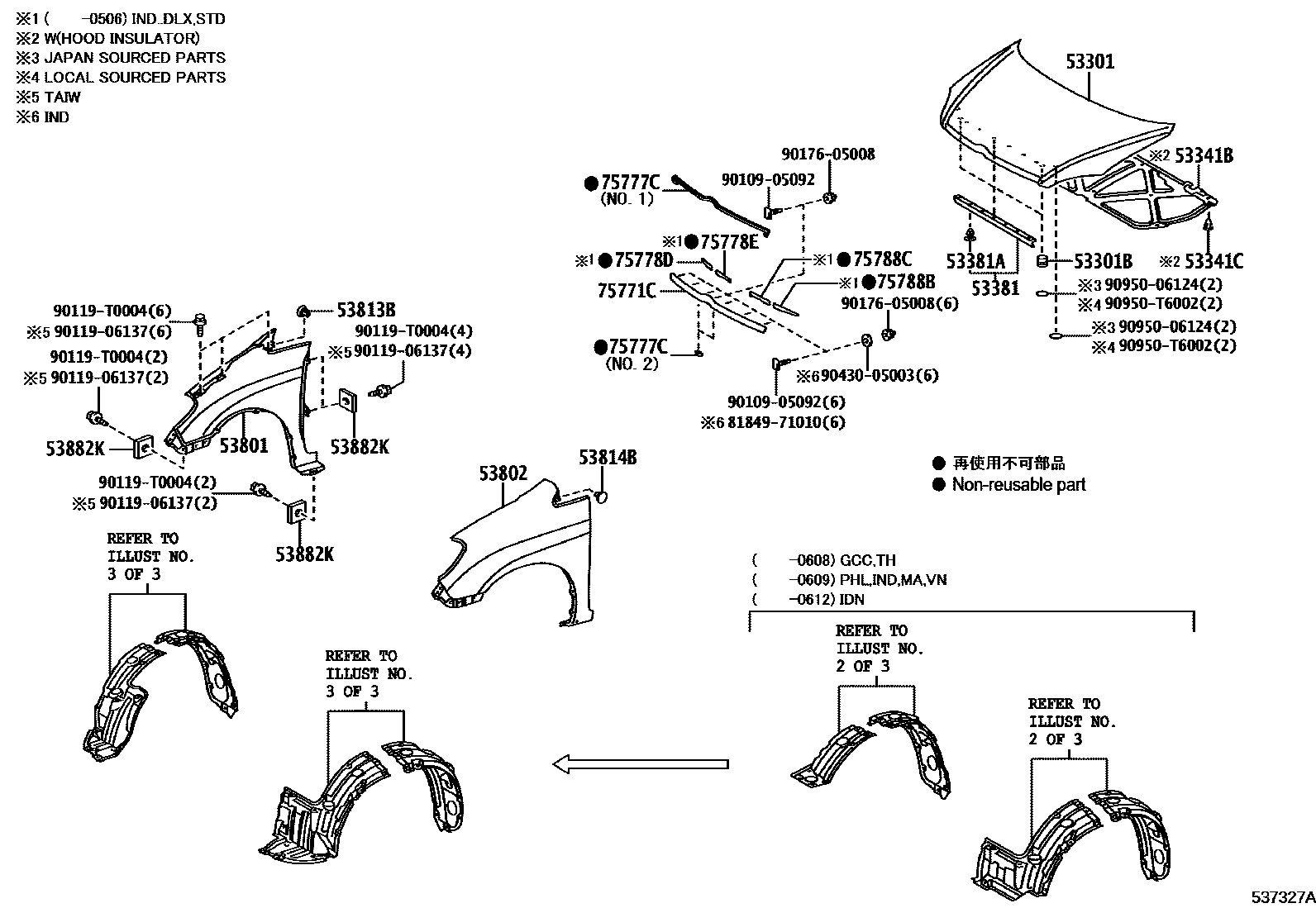

HOOD & FRONT FENDER

0001 1 0005 1FENDER LINER 0008 1FENDER LINER 0012 1 0015 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0K030iKUN40,TGN4#..GCC,PHL,TH200411-200509

main53301-0K040iKUN40,TGN4#..IDN,MA200408-200509

main53301-0K050iKUN40,TGN40..IND200812

main53301-0K060iKUN40,TGN4#..GCC,PHL,TH,VN200808

main53301-0K070iTGN40..4FC..(DLX,GL)..(IDN,MA,TAIW);KUN40,TGN41..(DLX,GL,STD)..(IDN,TAIW);TGN40..5F..(DLX,GL,STD)..(IDN,MA,TAIW)200509-201606

53301BCUSHION, HOOD BUMPER

main90541-15025×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

53341BINSULATOR, HOOD

main53341-0K090iKUN40..IDN,PHL,TH200408-200801

main53341-0K091iKUN40..IDN,PHL200808

main53341-0K100iTGN40..IND;KUN40..(DLX,GL)..IND200502-200801

main53341-0K101iKUN40,TGN40..(DLX,GL)..IND200812

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014×8iTGN40..IND;KUN40..DLX,GL;KUN40..STD..(IDN,PHL)200408-200812

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main53381-0K050iKUN40,TGN40..IND200502-200812

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main53326-0K010×6iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main90467-08011×6iKUN40,TGN40..IND200812

53801FENDER SUB-ASSY, FRONT RH

main53811-0K030iKUN40,TGN41..IDN,PHL;TGN40..4FC..(IDN,MA,PHL);TGN40..5F..(IDN,MA,PHL,TH,VN)200408-200809

main53811-0K040iTGN40..STD..TAIW;TGN40..4FC..(TAIW,TH);KUN40,TGN41..GCC,TAIW,TH200411-201606

main53811-0K050iKUN40,TGN40..IND200502-200812

53802FENDER SUB-ASSY, FRONT LH

main53812-0K030iKUN40..IDN,PHL;TGN40..5F..DLX..MA;TGN40..5F..(IDN,PHL,TH,VN);TGN40..4FC..(IDN,MA,PHL,VN)200808

main53812-0K040iTGN40..STD..TAIW;TGN40..4FC..(TAIW,TH);KUN40,TGN41..GCC,TAIW,TH200411-201606

main53812-0K050iKUN40,TGN40..IND200502-200812

53813BEXTENSION, FRONT FENDER, RH

main53813-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

53814BEXTENSION, FRONT FENDER, LH

main53813-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201606

53882KSEAL, FRONT FENDER

main53882-0K010×8iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201402

main53882-0K020×8iTGN40201403-201606

75771CMOULDING, HOOD, FRONT

main75771-0K020iKUN40,TGN4#..GL..(GCC,IDN,MA,PHL,TH)200408-200508

main75771-0K040iKUN40,TGN40..DLX..(MA,PHL);KUN40,TGN40..STD..(IDN,PHL)200411-200508

main75771-0K050-B0iKUN40,TGN40..DLX..IDN200411-200508

SILVER ME.,1C0

main75771-0K050-C0iKUN40,TGN40..DLX..IDN200411-200508

BLACK MC.,209

main75771-0K050-D0iKUN40,TGN40..DLX..IDN200411-200508

DK. RED M.M.,3Q3

main75771-0K050-E0iKUN40,TGN40..DLX..IDN200411-200508

BEIGE M.M.,4Q8

main75771-0K050-G0iKUN40,TGN40..DLX..IDN200411-200508

DK.GREEN M.M.,6S3

main75771-0K050-G1iKUN40,TGN40..DLX..IDN200411-200508

LT.GREEN M.M.,6S8

main75771-0K050-J0iKUN40,TGN40..DLX..IDN200411-200508

BLUE M.M.,8M9

main75771-0K050-J1iKUN40,TGN40..DLX..IDN200411-200508

DK.BLUE M.M.,8P4

main75771-0K080iKUN40,TGN4#..GL..(GCC,IDN,MA,PHL,TH,VN)200509-200809

main75771-0K110iKUN40,TGN40..GL..IND200704-200812

main75771-0K140iTGN4#..GL..TAIW200707

main75771-0K180iTGN40..5F..GL..PHL;TGN40..4FC..GL..(MA,PHL);KUN40,TGN41..GL..(GCC,PHL);KUN40,TGN40..(DLX,GL)..(IDN,TH,VN)200808

main75771-0K190iKUN40..STD..IND200812

main75771-0K200iKUN40,TGN40..GL..IND200812

main75771-0K901iKUN40,TGN40..(DLX,STD)..IND200408-200506

main75771-0K902iKUN40,TGN40..DLX200408-200411

main75771-0K904iKUN40,TGN4#..(DLX,STD)..(GCC,IDN,MA,PHL,TH,VN)200509-200809

main75771-0K905iKUN40,TGN40..(DLX,STD)..IND200704-200812

main75771-0K908iKUN40,TGN40..DLX..IND200812

main75771-0K909iTGN4#..(DLX,STD)..TAIW200707

main75771-0K910iKUN40,TGN4#..DLX..(GCC,MA,PHL);KUN40,TGN40..(LO,STD)..(IDN,PHL,TH,VN)200808

75777CPAD, HOOD FRONT MOULDING

main75777-0K010iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

NO.1

main75777-0K020×2iTGN40..5F..VN;KUN40,TGN4#..GCC,IDN,IND,MA,PHL,TH200408-200812

NO.2

main75777-0K030×2iTGN4#..TAIW200707

NO.2

main75777-0K040iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

NO.1

75778DPAD, HOOD FRONT MOULDING, RH NO.1

main75778-0K010iKUN40,TGN40..(DLX,STD)..IND200502-200506

main75778-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

75778EPAD, HOOD FRONT MOULDING, RH NO.2

main75778-0K020iKUN40,TGN40..(DLX,STD)..IND200502-200506

75788BPAD, HOOD FRONT MOULDING, LH NO.1

main75788-0K010iKUN40,TGN40..(DLX,STD)..IND200502-200506

main75788-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

75788CPAD, HOOD FRONT MOULDING, LH NO.2

main75788-0K020iKUN40,TGN40..(DLX,STD)..IND200502-200506

8184971010

main81849-71010

9010905092

main90109-05092

9011906137

main90119-06137

90119T0004

main90119-T0004

9017605008

main90176-05008

9043005003

main90430-05003

9095006124

main90950-06124

90950T6002

main90950-T6002

25 parts on this diagram · 5 diagrams in section
