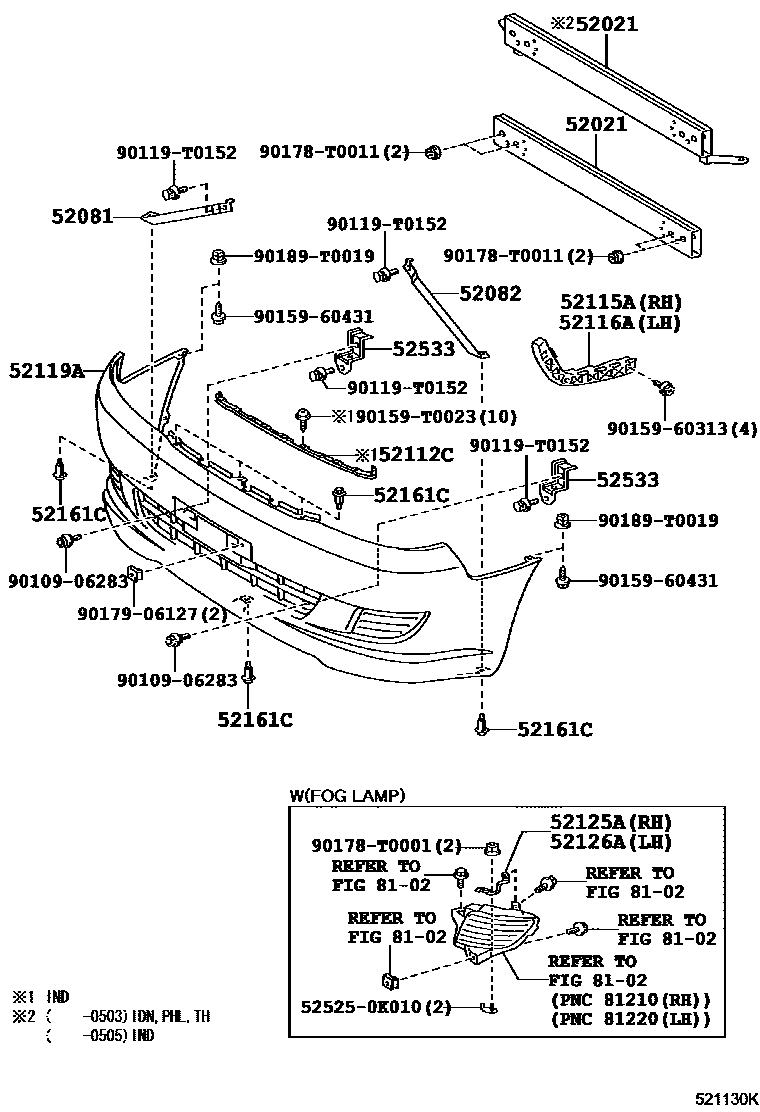

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0007 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0K010iKUN40,TGN40..IND200408-200505

main52021-0K040iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200503

52081STAY SUB-ASSY, FRONT BUMPER

main52145-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200608

52082STAY SUB-ASSY, FRONT BUMPER, LH

main52146-0K010iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200608

52112CEXTENSION, FRONT BUMPER

main52112-0K040iTGN40..STD..IND200502-200602

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-0K030iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

52119ACOVER, FRONT BUMPER

main52119-0K340iKUN40,TGN40..IND200812-201201

NO PAINT REQ.

main52119-0K906iKUN40,TGN40..IND200502-200602

PAINT REQ.

main52119-0K937iTGN40..GL..VN;KUN40,TGN40..LHD..STD200408-200602

PAINT REQ.

main52119-0K951iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200602

PAINT REQ.

main52119-0K953iKUN40,TGN40..IND200602-200812

PAINT REQ.

main52119-0K964iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808-201202

PAINT REQ.

52125ABRACKET, FOG LAMP MOUNTING, RH

main52125-0K020iTGN40..5F..GL..VN;TGN40..DLX..(IDN,TH);KUN40..WG..GL..(IND,PHL);KUN40..(DLX,GL)..(IDN,TH);TGN4#..GL..(GCC,IDN,IND,MA,PHL,TAIW,TH)200411

52126ABRACKET, FOG LAMP MOUNTING, LH

main52126-0K020iTGN40..5F..GL..VN;TGN40..DLX..(IDN,TH);KUN40..WG..GL..(IND,PHL);KUN40..(DLX,GL)..(IDN,TH);TGN4#..GL..(GCC,IDN,IND,MA,PHL,TAIW,TH)200411

52161CPIECE, FRONT BUMPER

main52161-0K040×4iKUN40,TGN4#..GCC,IDN,MA,PHL,TAIW,TH,VN200701-200809

EXCEPT TAIWAN

main52161-0K060×4iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200701

FOR TAIWAN

52533BRACKET, FRONT BUMPER RETAINER, NO.1

main52533-0K010×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main52533-0K020×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

8102FOG LAMP

→ Go to FIG 81-02

525250K010RETAINER, FRONT BUMPER, LOWER CENTER

main52525-0K010

9010906283

main90109-06283

90119T0152

main90119-T0152

9015960313

main90159-60313

9015960431

main90159-60431

90159T0023

main90159-T0023

90178T0001

main90178-T0001

90178T0011

main90178-T0011

9017906127

main90179-06127

90189T0019

main90189-T0019

22 parts on this diagram · 3 diagrams in section
