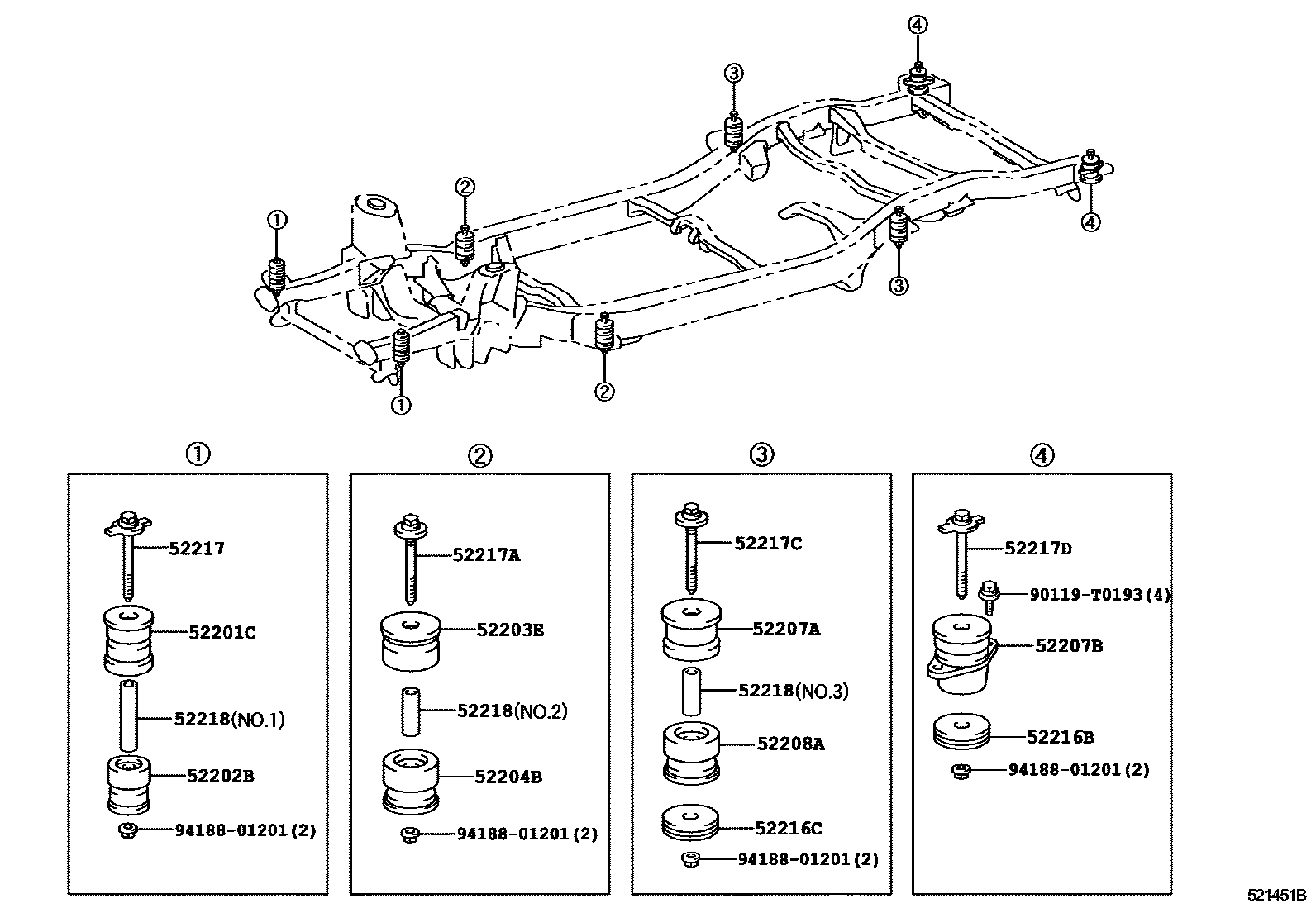

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-0K010×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main52201-0K030×2iKUN40,TGN40..IND200502-200812

main52201-0K040×2iTGN4#..TAIW200707

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-0K010×2iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main52202-0K030×2iKUN40,TGN40..IND200502-200812

main52202-0K040×2iTGN4#..TAIW200707

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-0K030×2iTGN40..MA200505-200809

main52203-0K040×2iKUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main52203-0K060×2iKUN40,TGN40..IND200502-200812

main52203-0K070×2iTGN4#..TAIW200707

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-0K030×2iTGN40..MA200505-200809

main52204-0K040×2iKUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main52204-0K060×2iKUN40,TGN40..IND200812

main52204-0K070×2iTGN4#..TAIW200707

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52205-0K060×2iTGN40..MA200809-201110

main52205-0K070×2iKUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-200809

main52205-0K080×2iTGN4#..TAIW200707

main52205-0K130×2iKUN40,TGN40..IND200502-200812

52207BCUSHION SUB-ASSY, CAB MOUNTING, REAR

main52207-0K010×2iKUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-200809

main52207-0K020×2iKUN40,TGN40..IND200502-200812

main52207-0K030×2iTGN40..MA200809-201110

main52207-0K050×2iTGN4#..TAIW200707

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52206-0K030×2iTGN4#..TAIW200707

main52206-0K060×2iTGN40..MA200809-201110

main52206-0K070×2iKUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-200809

main52206-0K130×2iKUN40,TGN40..IND200502-200812

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-0K020×2iTGN40..4FC..MA;TGN40..5F..DLX..MA200808-201110

main52216-0K050×2iTGN4#..GCC,TAIW200509

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-0K020×2iTGN40..4FC..MA;TGN40..5F..DLX..MA200808-201110

main52216-0K050×2iTGN41..GCC200808-201107

52217BOLT, BODY MOUNTING

main52217-0K010×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

52217ABOLT, BODY MOUNTING

main52217-0K020×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

52217CBOLT, BODY MOUNTING

main52217-0K020×2iTGN41..GL..GCC200509

main52217-0K030×2iTGN41..GCC200507-200508

52217DBOLT, BODY MOUNTING

main52217-0K050iTGN41..GL..GCC200509

RH

main52217-0K060iTGN41..GL..GCC200509

LH

main52217-71010×2iTGN41..GCC200507-200508

52218HOLDER, BODY MOUNT BOLT SPACER, NO.1

main52218-0K010×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

NO.1

main52219-0K010×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

NO.3,NO.2

90119T0193

main90119-T0193

9418801201

main94188-01201

16 parts on this diagram · 2 diagrams in section
