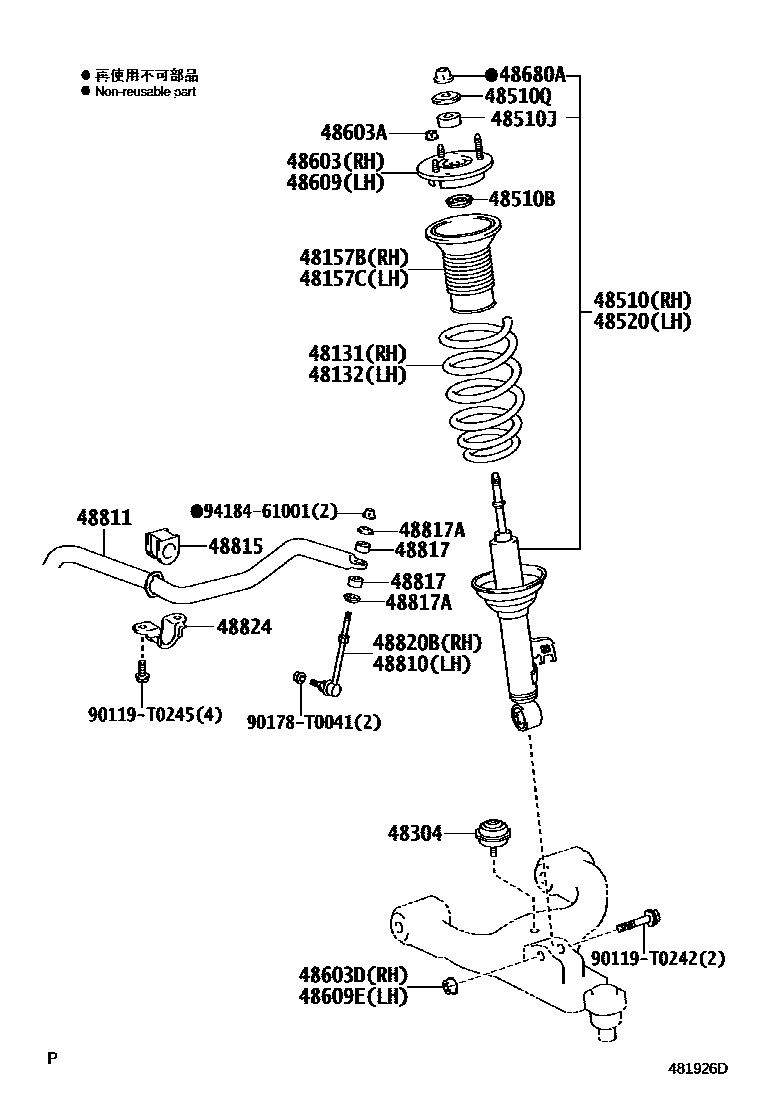

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0K150iTGN40..IND200502-200812

main48131-0K160iKUN40..IDN,PHL,TH200408-200809

main48131-0K161iKUN40..IDN,PHL200905

main48131-0K170iKUN40..IND200812-201007

main48131-0K610iTGN40..MA200505-200809

main48131-0K740iTGN4#..GCC,IDN,PHL,TH,VN200808-200904

main48131-0K741iTGN4#..GCC,IDN,PHL,TH,VN200905

main48131-0KB70iTGN4#..TAIW200707

main48131-0KC60iTGN40..IND201008-201108

main48131-0KC70iKUN40..IND201008-201108

main48131-0KD80iTGN40..IND201109

main48131-0KD90iKUN40..IND201109

48132SPRING, FRONT COIL, LH

main48131-0K150iTGN40..IND200812-201007

main48131-0K160iKUN40..IDN,PHL,TH200408-200809

main48131-0K161iKUN40..IDN,PHL200905

main48131-0K170iKUN40..IND200812-201007

main48131-0K610iTGN40..MA200505-200809

main48131-0K740iTGN4#..GCC,IDN,PHL,TH,VN200808-200904

main48131-0K741iTGN4#..GCC,IDN,PHL,TH,VN200905

main48131-0KB70iTGN4#..TAIW200707

main48131-0KC60iTGN40..IND201008-201108

main48131-0KC70iKUN40..IND201008-201108

main48131-0KD80iTGN40..IND201109

main48131-0KD90iKUN40..IND201109

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0K010iKUN40,TGN40..MA,PHL,VN200501-200809

main48157-0K020iKUN40,TGN4#..GCC,IDN,TH200808-201107

main48157-0K030iKUN40,TGN40..IND200502-200812

main48157-0K040iTGN4#..TAIW200707

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0K010iKUN40,TGN40..MA,PHL,VN200809

main48157-0K020iKUN40,TGN4#..GCC,IDN,TH200808-201107

main48157-0K030iKUN40,TGN40..IND200812

main48157-0K040iTGN4#..TAIW200707

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-0K010×2iKUN40,TGN40..MA,PHL,VN200809

main48304-0K020×2iKUN40,TGN4#..GCC,IDN,TH200808-201107

main48304-0K030×2iKUN40,TGN40..IND200812

main48304-0K060×2iTGN4#..TAIW200707

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09K40iKUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-200809

MARK 48510-0K080

main48510-09K50iKUN40,TGN40..IND200812-200902

MARK 48510-0K090

main48510-09L00iTGN40..MA200809-201110

MARK 48510-0K310

main48510-09S00iTGN4#..TAIW200707

MARK 48510-0K430

main48510-09V10iTGN41..GCC;TGN40..LO,STD;KUN40..STD..PHL;TGN40..DLX..IDN;KUN40..(DLX,LO,STD)..IDN200808-200910

MARK 48510-0K450

main48510-09X70iKUN40,TGN40..DLX..(PHL,TH);KUN40,TGN40..GL..(IDN,PHL,TH,VN)201009-201202

MARK 48510-0K451

main48510-09X80iKUN40,TGN40..IND200902-201008

MARK 48510-0K091

main48510-09Z80iTGN41..GCC;TGN40..LO,STD;KUN40..STD..PHL;TGN40..DLX..IDN;KUN40..(DLX,LO,STD)..IDN200910-201009

MARK 48510-0K550

main48510-8Z023iKUN40,TGN40..IND201008-201201

MARK 48510-0K092

main48510-8Z024iTGN41..GCC;KUN40..STD..PHL;TGN40..DLX..IDN;KUN40..(DLX,LO,STD)..IDN;TGN40..(LO,STD)..(IDN,PHL,TH,VN)201009-201202

MARK 48510-0K552

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-T2003×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48510JCUSHION, FRONT SHOCK ABSORBER, NO.1

main90948-T1001×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48510QRETAINER, CUSHION, NO.3(FOR FRONT SHOCK ABSORBER)

main90948-T2004×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09C80iTGN40..MA200505-200809

MARK 48520-0K110

main48520-09C90iKUN40,TGN4#..GCC,IDN,PHL,TH,VN200408-200809

MARK 48520-0K080

main48520-09D20iKUN40,TGN40..IND200502-200812

MARK 48520-0K090

main48520-09K60iTGN4#..TAIW200707

MARK 48520-0K120

main48520-09N10iTGN41..GCC;TGN40..LO,STD;KUN40..STD..PHL;TGN40..DLX..IDN;KUN40..(DLX,LO,STD)..IDN200808-200910

MARK 48520-0K450

main48520-09Q70iKUN40,TGN40..DLX..(PHL,TH);KUN40,TGN40..GL..(IDN,PHL,TH,VN)201009-201202

MARK 48520-0K451

main48520-09Q80iKUN40,TGN40..IND200902-201008

MARK 48520-0K091

main48520-09S60iTGN41..GCC;TGN40..LO,STD;KUN40..STD..PHL;TGN40..DLX..IDN;KUN40..(DLX,LO,STD)..IDN200910-201009

MARK 48520-0K550

main48520-09U80iKUN40,TGN40..IND201008-201201

MARK 48520-0K092

main48520-09U90iTGN41..GCC;KUN40..STD..PHL;TGN40..DLX..IDN;KUN40..(DLX,LO,STD)..IDN;TGN40..(LO,STD)..(IDN,PHL,TH,VN)201009-201202

MARK 48520-0K552

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0K010iKUN40,TGN40..MA,PHL,VN200809

main48609-0K020iKUN40,TGN4#..GCC,IDN,TH200408-200808

main48609-0K030iKUN40,TGN40..IND200502-200812

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-T0050×6iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0048iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0K010iKUN40,TGN40..MA,PHL,VN200809

main48609-0K020iKUN40,TGN4#..GCC,IDN,TH200808-201107

main48609-0K030iKUN40,TGN40..IND200812

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0048iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94188-01241×2iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0K010iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,PHL,TH,VN200808

main48820-0K020iKUN40,TGN40..IND200812

48811BAR, STABILIZER, FRONT

main48811-0K030iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main48811-0K040iKUN40,TGN40..IND200812-201111

main48811-0K110iTGN4#..TAIW200707

main48811-0K120iTGN40..IDN201008-201107

main48811-0K130iKUN40,TGN40..IND201112

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0K010×2iTGN4#..TAIW200707

main48815-0K020×2iKUN40,TGN4#..GCC,IDN,MA,PHL,TH,VN200408-200809

main48815-0K030×2iKUN40,TGN40..IND200502-200812

main48815-0K060×2iTGN40..IDN201008-201107

48817CUSHION, FRONT STABILIZER

main90948-T1002×4iTGN40..5F..(DLX,GL,STD);KUN40,TGN41..WG..(DLX,GL,STD);TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-T2002×4iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0K010iTGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH);TGN40..5F..(DLX,GL,STD)..(IDN,MA,PHL,TAIW,TH,VN);KUN40,TGN41..(DLX,GL,STD)..(GCC,IDN,PHL,TAIW,TH)200408

main48820-0K020iKUN40,TGN40..IND200502-200812

48824BRACKET, STABILIZER, FRONT

main48824-0K010×2iTGN40..4FC..MA;TGN40..5F..DLX..MA;KUN40,TGN4#..GCC,IDN,IND,PHL,TH,VN200808

90119T0242

main90119-T0242

90119T0245

main90119-T0245

90178T0041

main90178-T0041

9418461001

main94184-61001

27 parts on this diagram · 1 diagram in section
