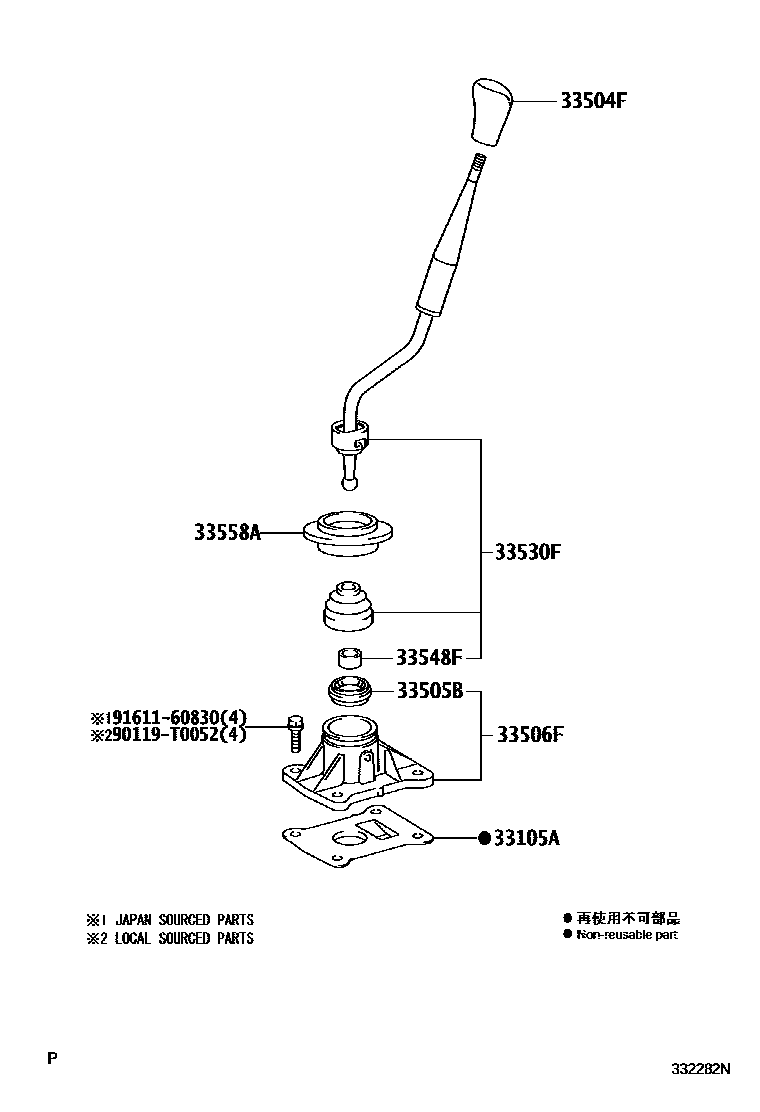

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33105ADEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)

main33144-35060iKUN40,TGN40..WG..5F..(DLX,GL,STD)200408

main33144-35060iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201204

TYPE D:REFER 33-01

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0D050-B0iKUN40,TGN40..5F..DLX..PHL;KUN40,TGN40..5F..STD..(IDN,PHL,TH,VN)200408-201202

DK.GRAY,TRIM1#

main33504-0D050-E0iTGN40..5F..DLX..IDN;TGN40..5F..GL..(IDN,PHL,VN);KUN40,TGN4#..5F..(GCC,IND,MA);KUN40..(DLX,GL)..DCR..(IDN,PHL)200408-200812

SANDAL WOOD,TRIM0#

main33504-0D050-E1iKUN40,TGN40..5F..GL..PHL;KUN40,TGN40..5F..(IND,VN)200808-201202

ASH BROWN,TRIM4#

main33504-0D170-E0iTGN40..4FC..GL..(TH,VN)201008-201202

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

main33504-0D170-E0iKUN40,TGN4#..4FC..GL..(GCC,IDN,MA,PHL)201008-201202

ASH BROWN,TRIM4#

main33504-0K010-B0iKUN40,TGN40..4FC..DLX..PHL200408-201606

DK.GRAY,TRIM1#

main33504-0K010-E0iTGN41..4FC..GL;TGN41..4FC..DLX..GCC;KUN40,TGN40..4FC..GL..PHL;KUN40,TGN40..RHD..4FC..(DLX,GL)200408-201111

SANDAL WOOD,TRIM0#

main33504-0K010-E1iTGN40..GL..TH200808-201202

ASH BROWN,TRIM4#

main33504-35060-E1iTGN40..4FC..VN200809-201007

ASH BROWN,TRIM4#

main33504-35060-E1iTGN40..GL..TH200908-201007

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-0K010iTGN41..5F..GCC201007-201107

TYPE D:REFER 33-01

main33505-0K010iTGN41..STD201007-201111

main33505-35020iKUN40,TGN40..WG..5F..(DLX,GL,STD)200408

main33505-35020iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201202

TYPE D:REFER 33-01

main33505-35030iTGN41..5F200507-201007

main33505-35030iTGN41..5F..GCC200808-201007

TYPE D:REFER 33-01

main33505-35030iTGN41..5F..GCC200808-201107

TYPE C:REFER 33-01

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-27071iKUN40,TGN40..5F200408-200808

main33506-71020iKUN40,TGN40..WG..5F..(IND,MA,PHL,TAIW,VN)200808

main33506-71020iTGN40..5F..DLX..MA;KUN40,TGN40..5F..(IDN,IND,PHL,TH,VN)200808-201202

TYPE D:REFER 33-01

main33570-0K010iTGN41..5F200507-200808

main33570-0K030iTGN41..5F..GCC201007-201107

TYPE D:REFER 33-01

main33570-0K030iTGN41..STD201007-201111

main33570-0K040iTGN41..STD200808-200901

main33570-0K040iTGN41..5F..GCC200808-201107

TYPE C:REFER 33-01

main33570-71030iTGN41..5F..GCC200808-201007

TYPE D:REFER 33-01

main33570-71030iTGN41..STD200901-201007

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-0K010iTGN40..RHD..5F200408-200609

main33530-0K012iTGN40..RHD..5F200610-200612

main33530-0K013iTGN40..RHD..5F200701-200808

main33530-0K020iTGN40..5F..PHL200501-200511

main33530-0K021iTGN40..LHD..5F200512-200604

main33530-0K022iTGN40..LHD..5F200605-200612

main33530-0K023iTGN40..LHD..5F200701-200808

main33530-0K030iKUN40..RHD..DCR200408-200511

main33530-0K031iKUN40..RHD..DCR200512-200604

main33530-0K032iKUN40..RHD..DCR200605-200612

main33530-0K033iKUN40..RHD..DCR200701-200808

main33530-0K040iKUN40..DCR..PHL200501-200511

main33530-0K041iKUN40..DCR..PHL200512-200604

main33530-0K042iKUN40..DCR..PHL200605-200612

main33530-0K043iKUN40..DCR..PHL200701-200808

main33530-0K110iTGN41..5F200507-200511

main33530-0K111iTGN41..5F200512-200604

main33530-0K112iTGN41..5F200605-200807

main33530-0K330iTGN40..5F..DLX..MA;TGN40..5F..(IDN,IND,TH)200808-200812

main33530-0K340iTGN40..5F..(PHL,VN)200808

main33530-0K350iKUN40..RHD..DCR200808-200812

main33530-0K360iKUN40..DCR..PHL200808-200809

main33530-0K441iTGN41..5F..GCC200808-201111

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-04010iTGN40..STD..TAIW200408

33558ASEAL, SHIFT LEVER BOOT DUST, NO.1

main33558-71010iKUN40,TGN40..5F..PHL200408-200808

90119T0052

main90119-T0052

9161160830

main91611-60830

9 parts on this diagram · 6 diagrams in section
