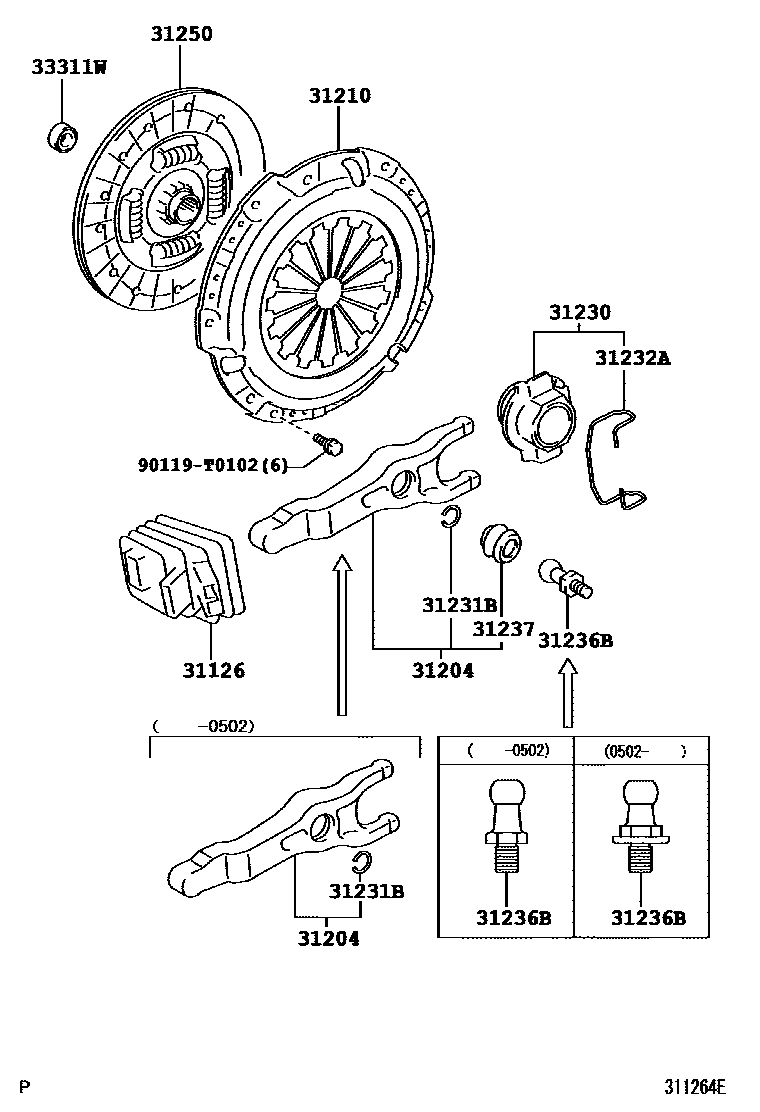

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
TYPE D:REFER 33-01
TYPE C:REFER 33-01
31204FORK SUB-ASSY, CLUTCH RELEASE
TYPE C:REFER 33-01
(L)
(J)
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
TYPE D:REFER 33-01,TYPE C:REFER 33-01
31231BRING, SNAP(FOR CLUTCH RELEASE HUB)
31232ACLIP, RELEASE BEARING HUB
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE D:REFER 33-01,TYPE C:REFER 33-01
31236BSUPPORT, RELEASE FORK
TYPE D:REFER 33-01
31237BOOT, CLUTCH RELEASE FORK SUPPORT
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
(J)
(L)
90119T0102
main90119-T0102
11 parts on this diagram · 2 diagrams in section
