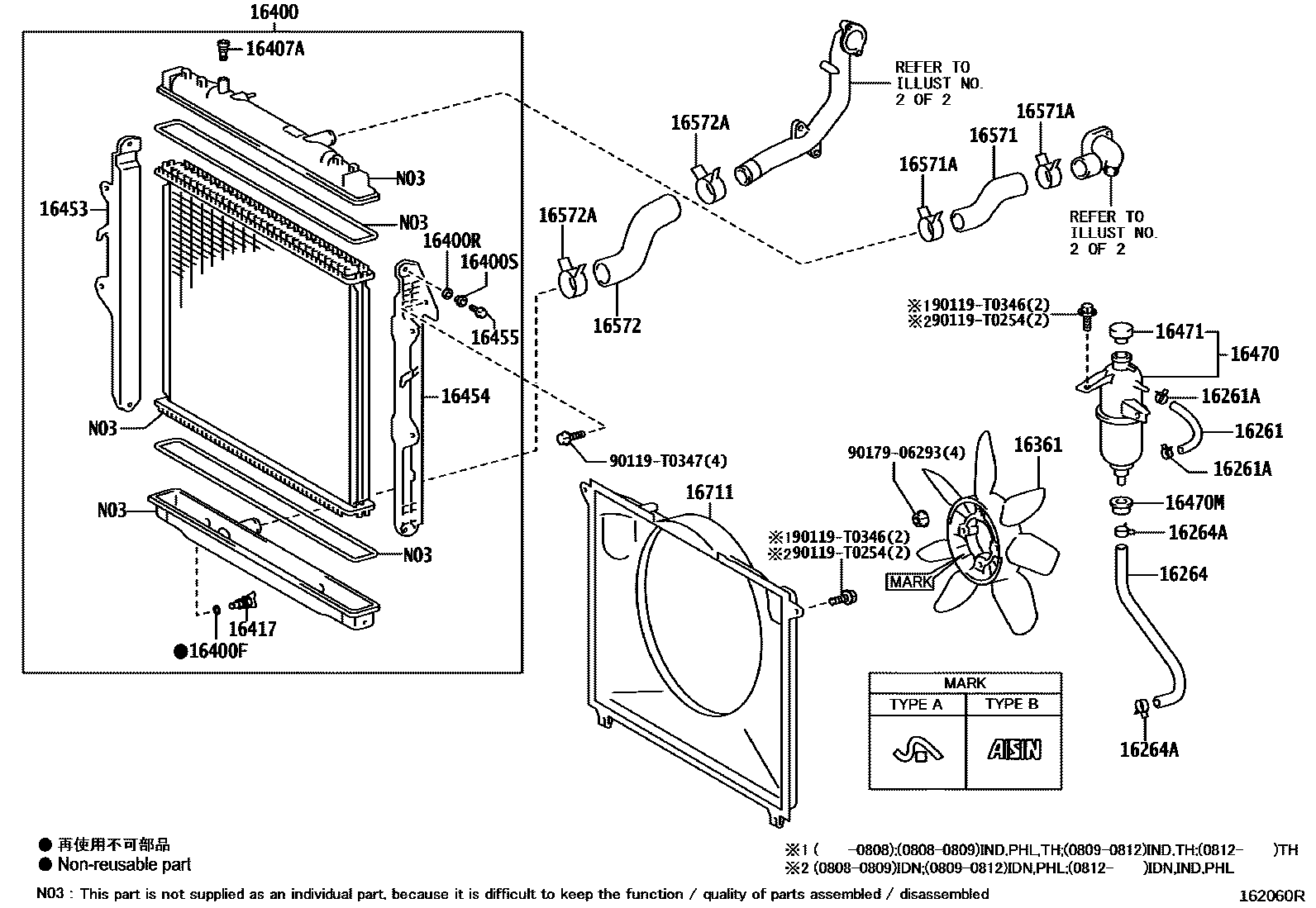

RADIATOR & WATER OUTLET

0001 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0010 1 0012 1 0013 1

16261HOSE, WATER BY-PASS

main16261-0C010i2TRFE..TGN41..GCC201008-201204

*191

main16261-0C030i2TRFE..TGN41..GCC201005-201008

*191

main16261-0L010i2KDFTV..KUN40..INDWG201004-201111

main16261-0L020i2KDFTV..KUN40..IDN,TH200408-200808

main16261-0L040i2KDFTV..KUN40..IND200812-201004

main16261-0L060i2KDFTV..KUN40..WG..IND201004

main16261-0L080i2KDFTV..KUN40..PHL200501-200809

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90466-T0015×2i1TRFE..TGN40201510

(L)

main90466-T0046×2i2KDFTV..KUN40200408-200812

main96136-41501×2i1TRFE..TGN40201510

(J)

main96137-41501×2i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

16264HOSE, WATER BY-PASS, NO.2

main16264-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE..TGN40..IDN,IND,PHL,TH,VN200808-201204

*191

main16264-0C030i2TRFE..TGN41..GCC201008-201107

*191

main16264-0C050i2TRFE..TGN41..TAIW201005-201006

main16264-0L010i2KDFTV..KUN40..IND201004-201111

main16264-0L020i2KDFTV..KUN40..IDN,TH200408-200808

main16264-0L040i2KDFTV..KUN40..IND200812-201004

main16264-0L060i2KDFTV..KUN40..PHL200809

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90466-T0015×2i1TRFE..TGN40201510

(L)

main90466-T0030×2i2KDFTV..KUN40..IND200408-200812

main96136-41501×2i1TRFE..TGN40201510

(J)

main96137-41501×2i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201204

16361FAN

main16361-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200808-201009

main16361-0C011i1TRFE,2TRFE..TGN4#..GCC,IDN,IND,MA,TH201010-201204

main16361-0L020i2KDFTV..KUN40..PHL200808-201112

main16361-67020i2KDFTV..KUN40..PHL201112-201204

TYPE B:REFER ILLUST.

16400RADIATOR ASSY

main16400-0C200i1TRFE,2TRFE..TGN4#..5F..(GCC,IDN,TH,VN)200408-200809

main16400-0C210i1TRFE,2TRFE..TGN4#..4FC..(GCC,IDN,TH)200408-200808

main16400-0C240i1TRFE..TGN40..IND200502-200812

main16400-0C250i1TRFE..TGN40..5F..PHL200809

main16400-0C260i1TRFE..TGN40..4FC..PHL200501-200809

main16400-0C300i1TRFE..TGN40..5F..MA200505-200809

main16400-0C310i1TRFE..TGN40..4FC..MA200809-201110

main16400-0C320i1TRFE,2TRFE..TGN4#..STD..TAIW200707

main16400-0C330i1TRFE,2TRFE..TGN4#..4FC..TAIW200707

main16400-0L140i2KDFTV..KUN40..DCR..IDN200808-201107

main16400-0L150i2KDFTV..KUN40..RHD..HDCR200408-200808

main16400-0L200i2KDFTV..KUN40..IND200812-201004

main16400-0L210i2KDFTV..KUN40..DCR..PHL200809

main16400-0L220i2KDFTV..KUN40..IND201004

main16400-0L240i2KDFTV..KUN40..HDCR..PHL200501-200809

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN; 2KDFTV..KUN40200808-201202

16400RBUSHING(FOR RADIATOR)

main16444-0L060×2i1TRFE..TGN40..MA,PHL; 2KDFTV..KUN40..DCR..PHL200703-200809

main16444-75180×2i1TRFE,2TRFE..TGN4#..GCC,IDN,IND,TH,VN; 2KDFTV..KUN40..RHD;2KDFTV..KUN40..HDCR..PHL200808

16400SCOLLAR(FOR RADIATOR)

main16445-0C180×2i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN; 2KDFTV..KUN40200808

main16445-8C000×2i1TRFE,2TRFE..TGN4#..TAIW200707

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-67240i2KDFTV..KUN40200408-200812

16417COCK

main16417-0C180i1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN; 2KDFTV..KUN40200808-201202

main16417-21280i1TRFE..TGN40..MA200809-201110

16453PLATE, RADIATOR SIDE

main16453-0C200i1TRFE,2TRFE..TGN4#..GCC,IDN,TH,VN200808

main16453-0C240i1TRFE..TGN40..IND200812

main16453-0C250i1TRFE..TGN40..PHL200501-200809

main16453-0C300i1TRFE..TGN40..MA200809-201110

main16453-0L140i2KDFTV..KUN40..IDN,TH200408-200808

main16453-0L200i2KDFTV..KUN40..IND200502-200812

main16453-0L210i2KDFTV..KUN40..PHL200809

main16453-8C000i1TRFE,2TRFE..TGN4#..TAIW200707

16454PLATE, RADIATOR SIDE

main16454-0C200i1TRFE,2TRFE..TGN4#..GCC,IDN,TH,VN200808

main16454-0C240i1TRFE..TGN40..IND200812

main16454-0C250i1TRFE..TGN40..PHL200809

main16454-0C300i1TRFE..TGN40..MA200809-201110

main16454-0L140i2KDFTV..KUN40..IDN200808-201107

main16454-0L200i2KDFTV..KUN40..IND200812-201004

main16454-0L210i2KDFTV..KUN40..PHL200809

main16454-8C000i1TRFE,2TRFE..TGN4#..TAIW200707

16455BOLT, RADIATOR SIDE SUPPORT PLATE

main91651-B0820×4i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

16470TANK ASSY, RADIATOR RESERVE

main16470-0C050i1TRFE,2TRFE..TGN4#..GCC,IDN,PHL,TH,VN200808

main16470-0C080i1TRFE..TGN40..IND200812

main16470-0C100i1TRFE..TGN40..MA200809-201110

main16470-0L010i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG200808-201107

main16470-0L011i2KDFTV..KUN40..PHL;2KDFTV..KUN40..INDWG201108-201202

main16470-0L050i2KDFTV..KUN40..WG..IND201004-201201

16470MGROMMET

main90480-T0003i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408

main90480-T0004i2KDFTV..KUN40200408-200812

16471CAP SUB-ASSY, RESERVE TANK

main16401-30010i2KDFTV..KUN40200408-200803

main16401-30011i2KDFTV..KUN40200808-201202

main16405-0C030i2TRFE..TGN41;1TRFE..TGN40..4FC..(DLX,GL)..(IDN,PHL,TAIW,TH);1TRFE..TGN40..5F..(DLX,GL,STD)..(IDN,PHL,TAIW,TH,VN)200408

main16405-0C060i1TRFE..TGN40..IND200502-200812

main16405-0C080i1TRFE..TGN40..MA200809-201110

16571HOSE, RADIATOR, INLET

main16571-0L030i2KDFTV..KUN40..IND201003-201111

main16571-0L040i2KDFTV..KUN40..IDN,TH200408-200808

main16571-0L060i2KDFTV..KUN40..IND201111-201201

main16571-0L090i2KDFTV..KUN40..PHL200809-201202

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-T0012×2i2KDFTV..KUN40200808-201202

16572HOSE, RADIATOR, OUTLET

main16572-0L030i2KDFTV..KUN40..IND201003-201111

main16572-0L040i2KDFTV..KUN40..IDN200808-201107

main16572-0L060i2KDFTV..KUN40..IND200812-201003

main16572-0L090i2KDFTV..KUN40..PHL200709-200809

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-T0012×2i2KDFTV..KUN40200808-201202

16711SHROUD, FAN

main16711-0C090i1TRFE..TGN40..PHL200501-200809

main16711-0C100i1TRFE,2TRFE..TGN4#..GCC,IDN,TH,VN200808

main16711-0C130i1TRFE..TGN40..IND200812

main16711-0C160i1TRFE..TGN40..MA200809-201110

main16711-0C170i1TRFE,2TRFE..TGN4#..TAIW200707

main16711-0L050i2KDFTV..KUN40..PHL200501-200809

main16711-0L060i2KDFTV..KUN40..IDN200808-201107

main16711-0L090i2KDFTV..KUN40..IND200812-201004

main16711-0L130i2KDFTV..KUN40..WG..IND201004

90119T0254

main90119-T0254

90119T0346

main90119-T0346

90119T0347

main90119-T0347

9017906293

main90179-06293

26 parts on this diagram · 10 diagrams in section
