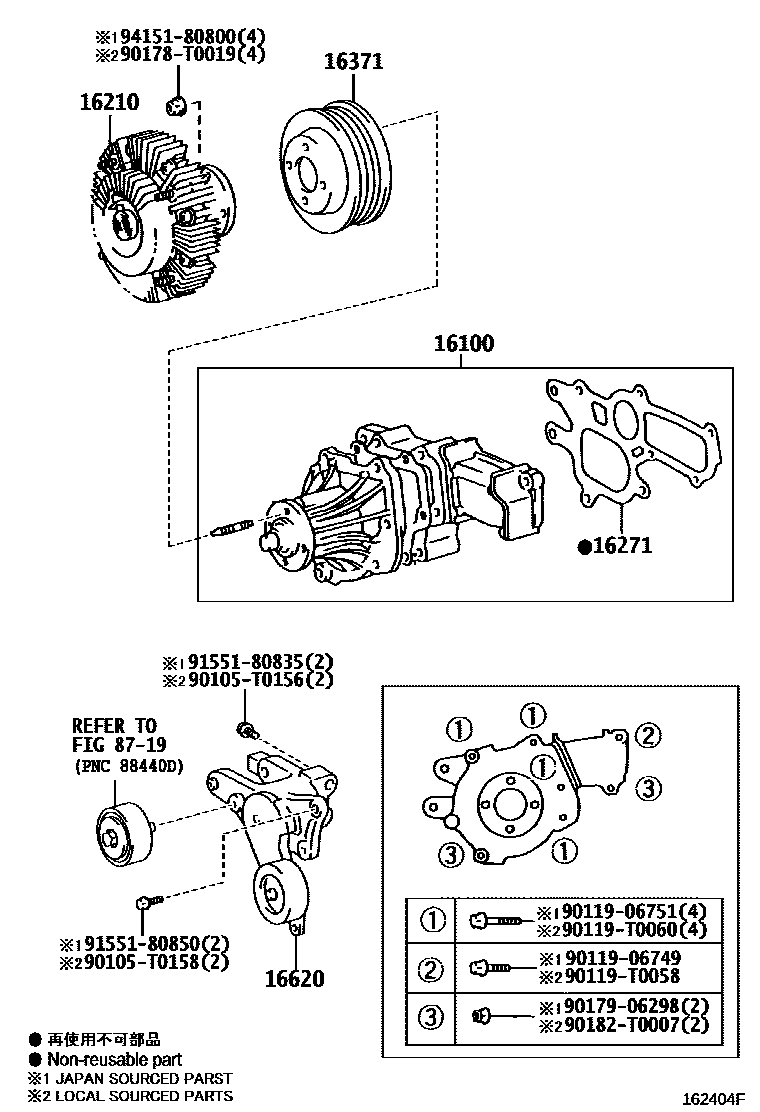

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09260i2KDFTV..KUN40200408-201202

*130

main16100-09460i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200801-201201

(L)

main16100-09460i2TRFE..TGN41..LHD;1TRFE..TGN40..(DLX,GL)..IND;1TRFE..TGN40..IDN,MA,PHL,TH,VN200408-201202

main16100-39485i2KDFTV..KUN40..IDN,PHL,TH200801-201202

*163 OR *184

16210COUPLING ASSY, FLUID

main16210-0C010i1TRFE..TGN40..TAIW201201-201204

*191,*299

main16210-0C010i1TRFE..TGN40..4FC..MA;1TRFE..TGN40..5F..DLX..MA;1TRFE,2TRFE..TGN4#..GCC,IDN,IND,PHL,TH,VN200408-201201

*191

main16210-0L010i2KDFTV..KUN40200408-200905

*130

main16210-0L011i2KDFTV..KUN40201112-201202

*130,(L)

main16210-0L011i2KDFTV..KUN40200905-201112

*130

main16210-30020i2KDFTV..KUN40200507-200604

*163 OR *184

main16210-30030i2KDFTV..KUN40..IDN,PHL,TH200604-201202

*163 OR *184

main16210-30030i2KDFTV..KUN40201112-201202

*130,(J)

main16210-75120i1TRFE..TGN40..TAIW201201-201206

*300

16271GASKET, WATER PUMP

main16271-0L010i2KDFTV..KUN40200408-201202

*130

main16271-67020i2KDFTV..KUN40..IND200507-201202

*163 OR *184

16371PULLEY, FAN

main16371-0C010i2TRFE..TGN41;1TRFE..TGN40..5F..(DLX,GL,STD);1TRFE..TGN40..4FC..(DLX,GL)..(IDN,MA,PHL,TAIW,TH)200408-201204

(L)

main16371-0L010i2KDFTV..KUN40200408-201202

*130

main16371-30020i2KDFTV..KUN40..IND200507-201202

*163 OR *184

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0L020i2KDFTV..KUN40200408-201112

*130

main16620-0L020i2KDFTV..KUN40201112-201202

*130,(L)

main16620-30031i2KDFTV..KUN40..IDN,PHL200507-201202

*163 OR *184

main16620-30031i2KDFTV..KUN40201112-201202

*130,(J)

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

90105T0156

main90105-T0156

90105T0158

main90105-T0158

9011906749

main90119-06749

9011906751

main90119-06751

90119T0058

main90119-T0058

90119T0060

main90119-T0060

90178T0019

main90178-T0019

9017906298

main90179-06298

90182T0007

main90182-T0007

9155180835

main91551-80835

9155180850

main91551-80850

9415180800

main94151-80800

18 parts on this diagram · 2 diagrams in section
